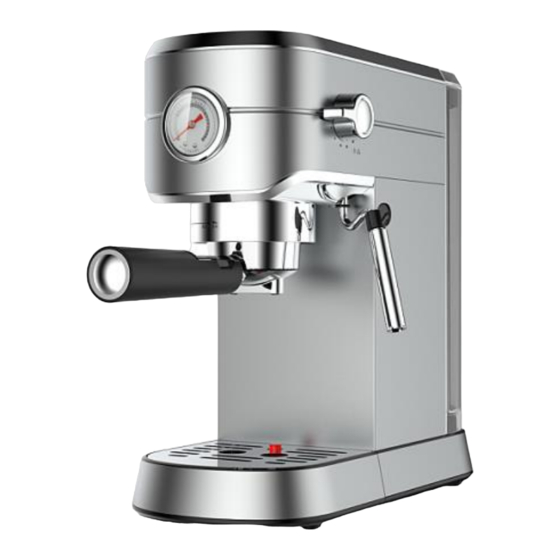

anko CM5418CB-SA User Manual

Espresso coffee maker
Hide thumbs
Table of Contents

Advertisement

Quick Links

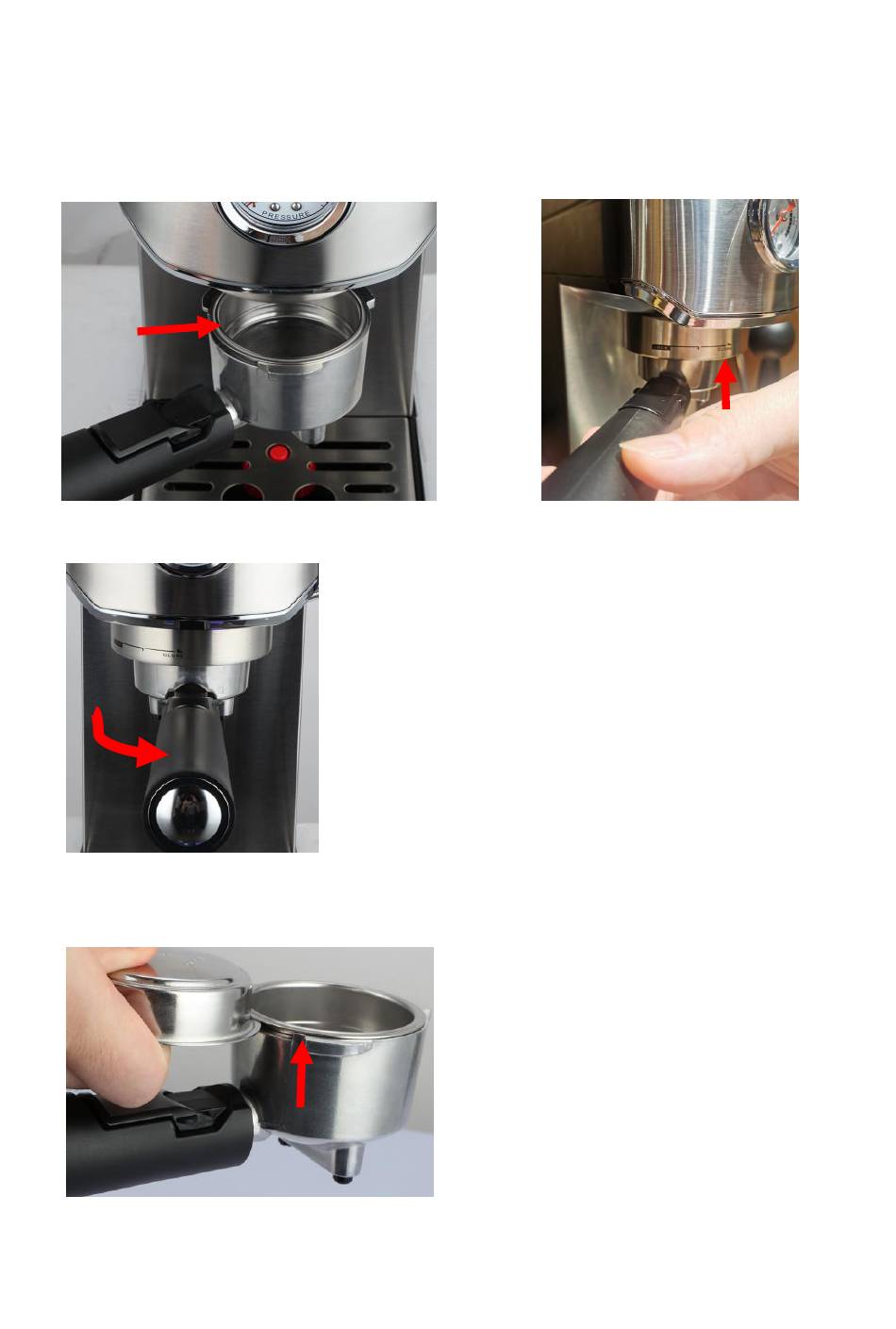

ESPRESSO COFFEE MAKER QUICK INSTALLATION
1. Align the handle (lever) on the filter
holder to the left of Lock symbol.
3. Turn handle towards the Close symbol until it is tight and secured.
4. To remove filter - take out the filter using the edge of the other filter as
follows.
GUIDE
2. Insert the filter holder slightly
into the Expresso Coffee Maker.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM5418CB-SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for anko CM5418CB-SA

Summary of Contents for anko CM5418CB-SA

  • Page 1 ESPRESSO COFFEE MAKER QUICK INSTALLATION GUIDE 1. Align the handle (lever) on the filter 2. Insert the filter holder slightly holder to the left of Lock symbol. into the Expresso Coffee Maker. 3. Turn handle towards the Close symbol until it is tight and secured. 4.
  • Page 2 Espresso Coffee Maker CM5418CB-SA User Manual PLEASE READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS Please read the instruction manual before using this appliance and follow all the safety instructions to avoid damage and/or injury due to improper use. 1. Read all instructions. 2. Before using check that the voltage of wall outlet corresponds to rated voltage marked on the rating plate.
  • Page 4 25. This appliance is intended to be used in household and similar applications such as: – staff kitchen areas in shops, offices and other working environments, – farmhouses, – by clients in hotels, motels and other residential type environments, – bed and breakfast type environments. 26.

  • Page 5: Before The First Use

    KNOW YOUR ESPRESSO COFFEE MAKER BEFORE THE FIRST USE Remove all the plastic bags, packaging material on the Espresso Machine. Remove the stopper at bottom of water tank.

  • Page 6: Setting Up The Machine

    Prior to initial use and after a longer period of disuse of the Espresso Machine, allow the contents of approx. 2-3 cups of water to run through the machine without adding any coffee powder in the filter. This will clean the water circuit and all parts will be heated up for proper operation. DANGER OF INJURY, BURNING AND SCALDING! PLEASE READ ALL SAFETY INSTRUCITONS AND FAMILIARISE YOURSELF WITH PARTS BEFORE USING THE MACHINE!

  • Page 7: Brewing Espresso

    Tips  Clean excess ground coffee from the rim to ensure proper fit under the brew head and avoid any leaks.  The compressing of the espresso powder is an important process for preparation. If the powder is compressed tightly, the espresso will run through slowly and there will be more crema.
  • Page 8 IMPORTANT! you may need to turn the handle a little harder to make the holder stop at the right locking position. This is important to prevent the holder from ejecting during use due to steam pressure. Fig. 2  Insert drip tray. Put a coffee cup underneath the coffee spout of the filter holder.

  • Page 9: Frothing Milk

    Emptying the brewing filter 1. Remove the filter holder from the machine. 2. Turn the filter holder to “Lock” mark position, then pull it down gently. 3. Fold the filter blocker up and over the edge to hold the brewing filter. Refer to figure shown. 4.
  • Page 10 Cleaning milk frother After milk frothing, the steam nozzle must be cleaned. Not doing so may result in steam blockage. 1. Place an empty large cup underneath the milk frother nozzle. 2. Turn on the steam controller and wait for approx. 15 seconds, then close the steam controller.

  • Page 11: Cleaning And Maintenance

    the “Single-cup indicator” flashes at the same time, when the desired amount is dispensed, press the “Single-cup” button again, the coffee will stop dispensing. At that time, the setting for the dispensing amount of single cup is finished and it will be saved for next operation. The adjustable dispensing amount of single cup ranges between 15 seconds and 25 seconds.

  • Page 12: Troubleshooting

    Descaling Descale the coffee maker regularly. To do this, use a commercially available descaling product (kettle descaling solution) and follow instructions provided with product. Storage 1. Prior to longer storage, clean the espresso machine thoroughly. 2. Empty the water tank and the drip tray. 3.

  • Page 13: Technical Specification

    Machine has not been used for Rotate the knob to off position Single-cup indicator and 180s after pressing the power to reset. double-cup indicator ON button. flashing quickly. Boiler temp. is too high Turn knob to “ ”position, Steam indicator blinking perform cooling operation quickly.
  • Page 14 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
