DESCRIPTION
Woodward's RP-3000XT is a touch screen remote control
and annunciation panel for use with the easYgen-3000XT
series controls. It is particularly useful with the back panel
mounted easYgen-3100XT/3400XT, providing control from
the front panel with greatly reduced wiring to the access
door, while keeping high voltage connections located safely
on the back panel.
The RP-3000XT offers all the HMI resources that the
display variants easYgen-3200XT/3500XT offer with a
touch screen technology. Irrespective of the easYgen-
3000XT variants, this compact HMI solution connects to up
to 32 XT controls (select and access one easYgen-3000XT
at a time).
The RP-3000XT offers switchgear builders, genset
packagers, and system integrators an off-the-shelf HMI option for any application where a secure remote control,
monitoring and visualization is desired, such as hospitals, data centers, offshore rigs, landfill and wastewater
gas-to-power applications to name a few.
In a paralleling application, the RP-3000XT provides the flexibility to connect each of the easYgen-3000XT
controls (one RP-3000XT for one easYgen-3000XT) or to connect multiple of the easYgen-3000XT (one RP-
3000XT for a fleet of easYgen-3000XTs, accessing one at a time). The communication between the two devices
is always through Ethernet.
Features
 RP-3000XT features help realize following use cases:
 Mounted to the front door and connected with a back panel mounted easYgen-3100XT or easYgen-
3400XT for a safe and compact installation
 Installed away from genset room and connected with a front panel mounted easYgen-3200XT or
easYgen-3500XT for applications requiring multiple HMIs
 Mounted to the front door and connected to a fleet of easYgen-3000XT series controls (up to 32) for
cost sensitive and/or space constrained applications
 Power ON LED at face plate
 Multi-lingual display capability of
the connected easYgen-XT (RP-
3000XT menu in English)

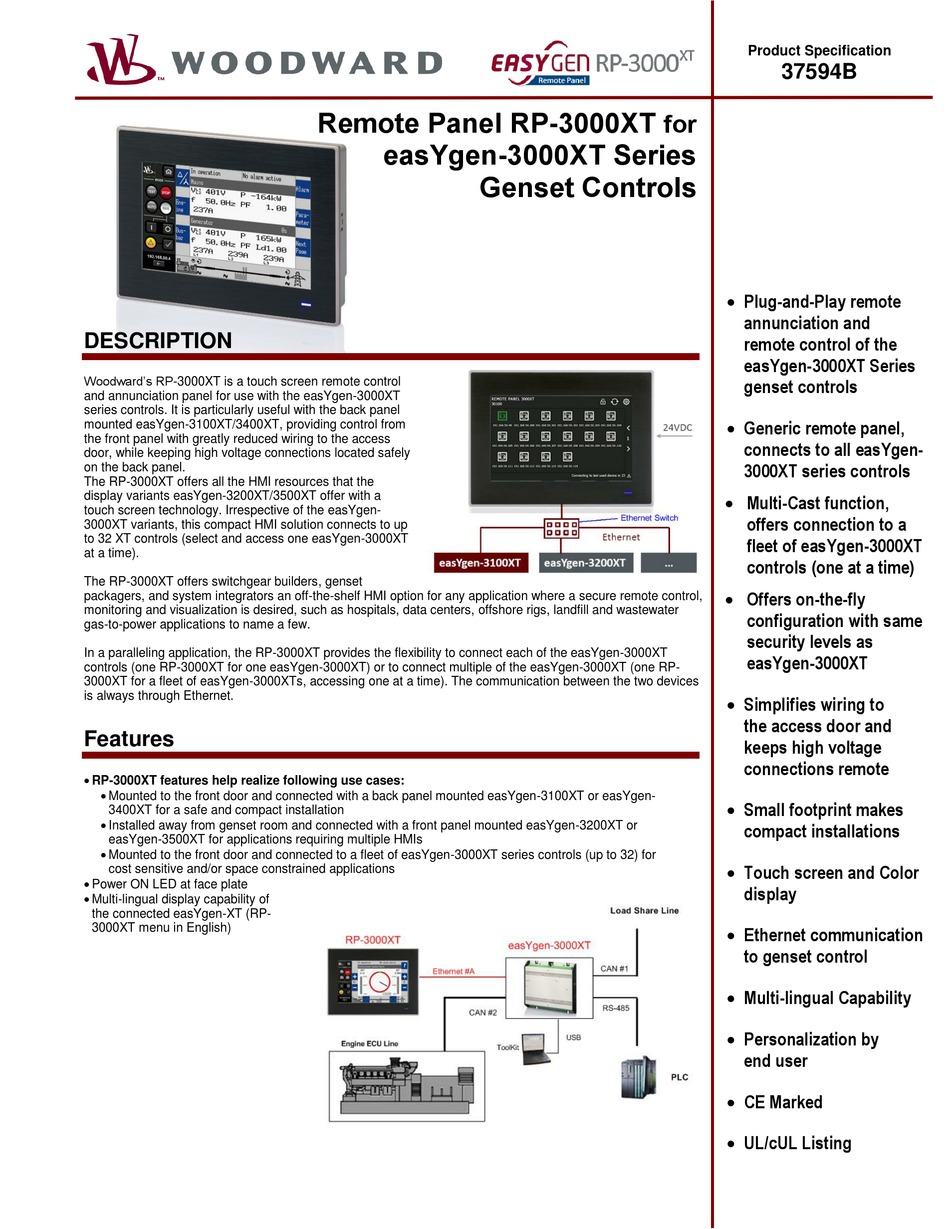

Remote Panel RP-3000XT
easYgen-3000XT Series
Genset Controls
Product Specification
37594B
for
 Plug-and-Play remote
annunciation and
remote control of the
easYgen-3000XT Series
genset controls
 Generic remote panel,
connects to all easYgen-
3000XT series controls
 Multi-Cast function,
offers connection to a
fleet of easYgen-3000XT
controls (one at a time)
 Offers on-the-fly
configuration with same
security levels as
easYgen-3000XT
 Simplifies wiring to
the access door and
keeps high voltage
connections remote
 Small footprint makes
compact installations
 Touch screen and Color
display
 Ethernet communication
to genset control
 Multi-lingual Capability
 Personalization by
end user
 CE Marked
 UL/cUL Listing
