- Page 1 LDG Electronics MC-7600 Meter For Icom IC-7600 For Icom IC-7600 Transceiver LDG Electronics, 1445 Parran Road, Saint Leonard, MD 20685...
-
Page 2: Table Of Contents
Contents Specifications & Ratings ............................ 1 Introducing the MC-7600 Meter ........................2 Welcome Notes ..............................3 Your MC-7600 Analog Meter ..........................4 Installing the MC-7600 Meter ........................... 5 Configuring the IC-7600 ............................ 6 Operation ................................7 Care and Maintenance ............................7 Specifications &... -
Page 3: Introducing The Mc-7600 Meter

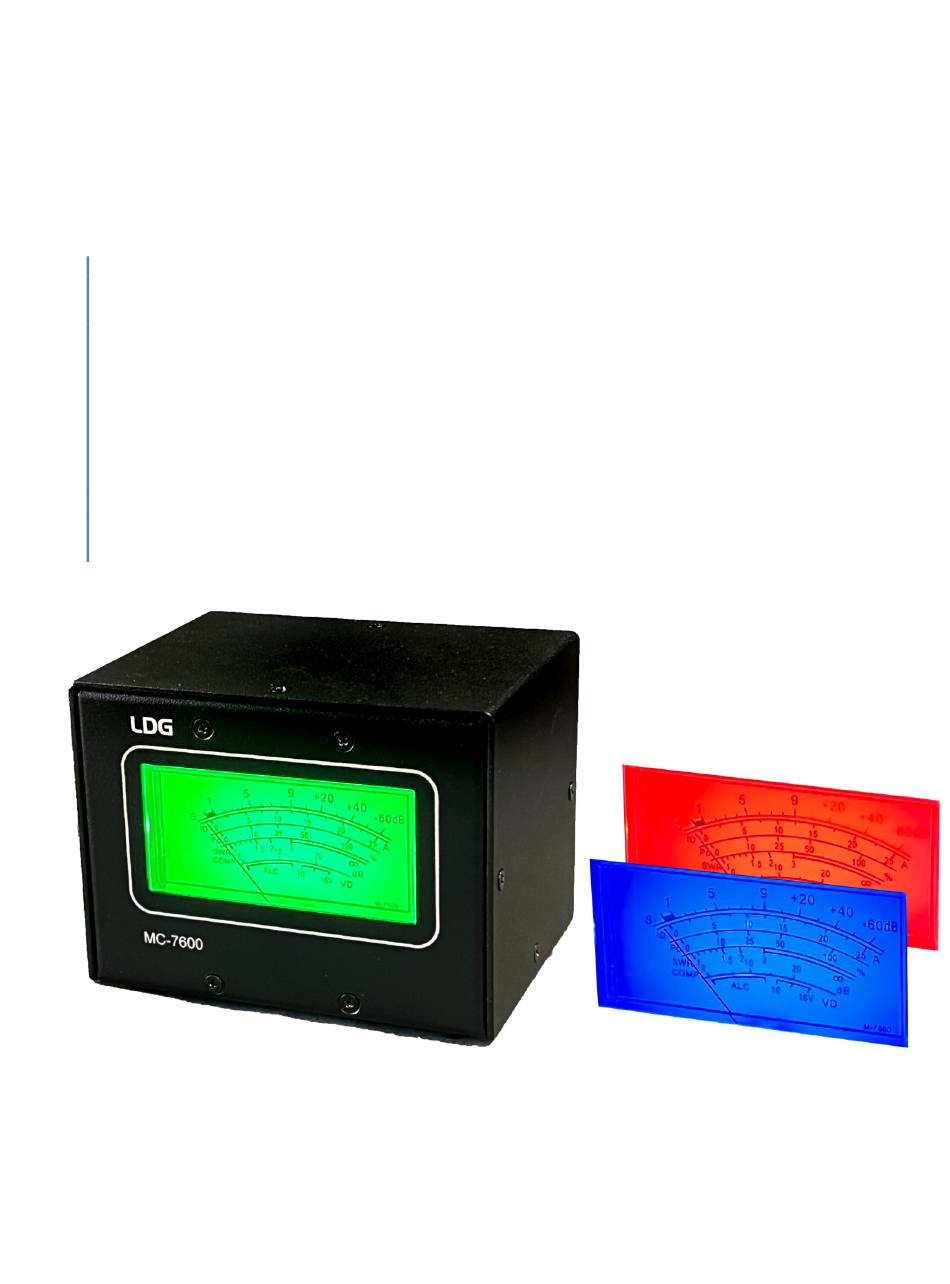

Introducing the MC-7600 Meter Congratulations on selecting the LDG Electronics MC-7600 meter. The LDG Color Analog Meter is a precision instrument that will provide many years of quality service. The meter provides a three-inch meter to compliment the “virtual” meter on your IC-7600’s display panel. It can show S-Meter reading, final amplifier voltage and current, power output, SWR, compression level and ALC level. -
Page 4: Welcome Notes
RETURNING YOUR PRODUCT FOR SERVICE Returning a product to LDG is easy. We do not require a return merchandise authorization, and there is no need to contact LDG to return your product. Visit the Customer Support Center on our web site and download the LDG Product Repair Form. On the Repair Form tell us exactly what happened (or didn’t happen) and why you believe the product needs servicing. -
Page 5: Your Mc-7600 Analog Meter
Front Panel: The front panel of the MC-7600 displays only the meter face. No controls are present on the front panel. Back Panel: The rear panel of the MC-7600 has two jacks and three controls:... -
Page 6: Installing The Mc-7600 Meter
Installing the MC-7600 Meter The MC-7600 is intended for indoor use only; it is not water-resistant. If you use it outdoors, you must protect it from rain. Always turn your radio off before plugging or unplugging anything. The radio may be damaged if cables are connected or disconnected while the power is on. -
Page 7: Configuring The Ic-7600
Configuring the IC-7600 The MC-7600 meter by default shows signal strength on receive in the customary S-Units plus dB over S9. On transmit the MC-7600 meter mirrors the setting you have selected in the IC-7600 setup menu. Options include: • RF power output percent •... -
Page 8: Operation
Simply press the On/Off button on the back of the meter to turn the light off. Care and Maintenance Your MC-7600 meter is essentially maintenance-free. The outer case may be cleaned as needed with a soft cloth slightly dampened with household cleaning solution. As with any modern electronic device the MC-...
