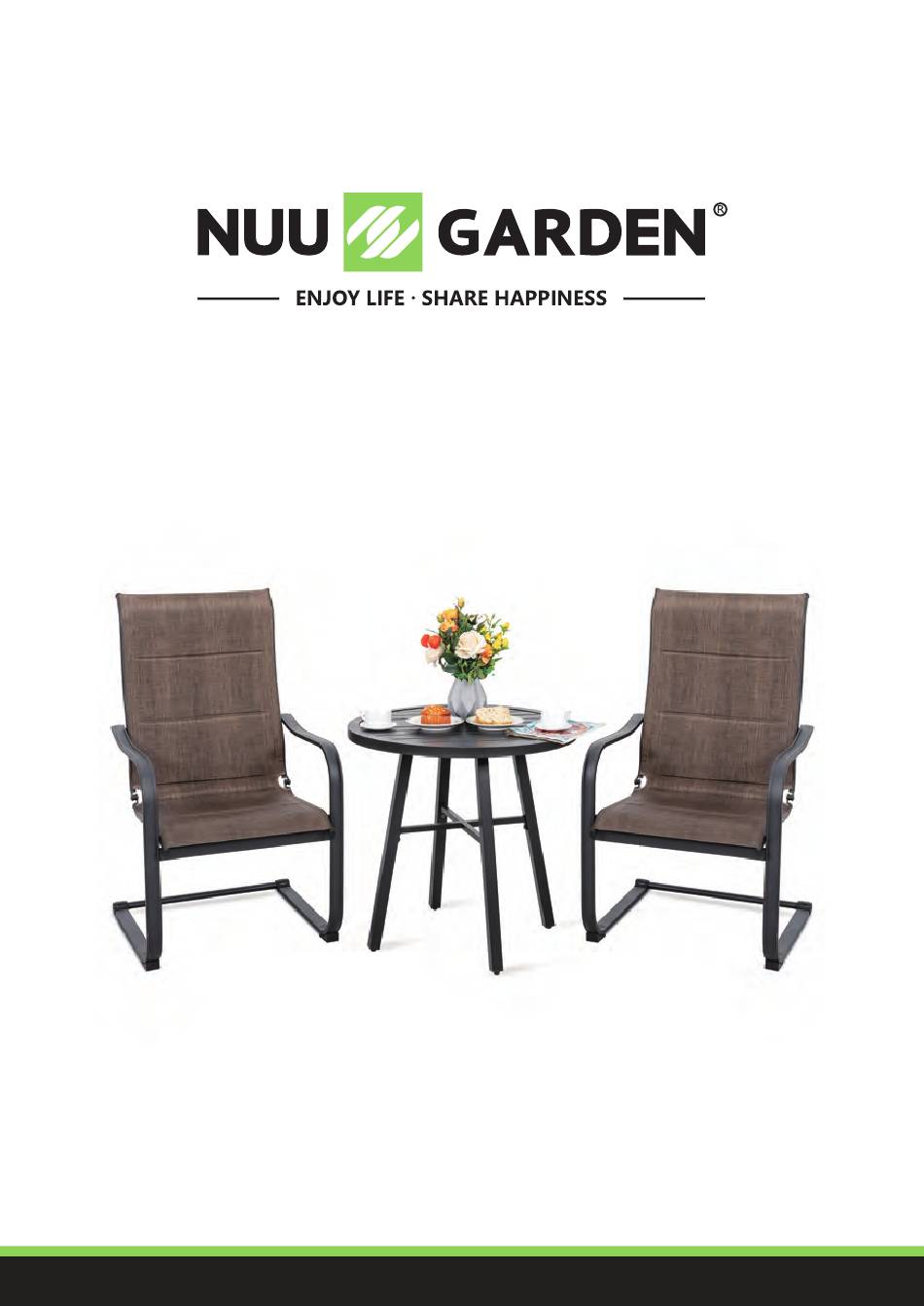

- Page 1 INSTRUCTION MANUAL 3PCS Iron Bistro Set SB003-129...
- Page 2 INTRODUCTION Thanks for purchasing and trusting NUUGARDEN with your home decorating plans. This product is a furniture designed and made by NUUGARDEN Corp. diverse choice of outdoor collection. customer service at (800) 257-7108 or send an email to service@nu- contact us and they will be sent to you immediately. This furniture is intended for indoor and outdoor use.
- Page 3 Images Part Qty. Number Sizes M6*12 M6*18 M6*30...
- Page 4 ASSEMBLY INSTRUCTIONS CAVEAT STEP 1 Attach the left armrest (A) to the seat frame (C) using 1 bolt and 1 washer (G). Attach the left armrest (A) to the support bar (D) using 2 bolts and 2 washers (F). Do not screw down.
- Page 5 ASSEMBLY INSTRUCTIONS CAVEAT STEP 2 Insert the suppart bar (E) to the left armrest (A). Attach the left armrest (A) to the seat frame (C) using 1 bolt and 1 washer (H). Do not screw down.
- Page 6 ASSEMBLY INSTRUCTIONS CAVEAT STEP 3 Attach the right armrest (B) to the seat frame (C) using 2 bolts and 2 washers (G & H). Attach the right armrest (B) to the support bar (D) using 2 bolts and 2 washers (F). Attach the suppart bar (E) to 2 armrests (A &...
- Page 7 ASSEMBLY INSTRUCTIONS CAVEAT STEP 4 Upon completion of full assembly and bolted up-all screws can be tightened down.
- Page 8 Images Part Qty. Number Sizes M6*15...
- Page 9 ASSEMBLY INSTRUCTIONS CAVEAT STEP 1 Assemble 4 table legs(B) to the table top frame(A) with 8 washers (E) and 8 bolts(D).
- Page 10 ASSEMBLY INSTRUCTIONS CAVEAT STEP 2 Assemble(C) to 4 table legs(B) with 4 washers (E) and 4 bolts(D). Secure and tighten all the components before using.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Follow the instruction for the material of your special product to make sure that it stays in the best shape for as long as possible. The information below • Only need to rinse it thoroughly with clean water to wash away dirt and the surfaces and leave behind scratch marks. -
Page 12: Customer Service
CUSTOMER SERVICE Thanks for purchasing this NUUGARDEN furniture. We are here to help you Please do not hesitate to contact our customer service when you have any questions regarding assembly or accessories. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com... - Page 13 NUUGARDEN USA Nuu Garden Corp. Add: 6366 Corley Road, Norcross GA 30071. Tel: (800) 257-7108 Web: http://www.nuugarden.com E-mail: service@nuugarden.com...
