- Page 1 USER MANUAL COMMERCIAL MODULAR AIR COOLED ICE MAKER MODEL: ICE400M-HA, ICE400-BD, ICE550M-FA, ICE550M-HA USR Brands, Inc. Phone: 800-764-1172 | www.usrestaurant.com | sales@usrestaurant.com USRESTAURANT® RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
-
Page 2: Table Of Contents
Table of Contents Important Information................................1 Warning and safety instruction..............................2 General......................................3 Installation....................................3 Location for Installation..............................3 Schematic Diagram of Installation..........................4 Installation Steps................................4 Startup and Operation...............................5 Operation Instruction................................. 5 Instruction of Control Panel..............................6 Maintenance....................................8 Clean Function................................... 9 Common Faults and Troubleshooting..........................10 Warranty....................................11 Note: please keep this manual in a place accessible to users at any time. -
Page 3: Important Information
Important Information Please pay attention to the following warning labels on the ice maker The label indicates a flammable foaming agent “Cyclopentane” used. There is a risk of fire. The label indicates a hazardous voltage. There is a risk of electric shock. The label indicates a flammable refrigerant “R290”... -
Page 4: Warning And Safety Instruction
Warning and safety instruction This product cannot be used in outdoor substances in this ice machine, or it may environment. result in explosion or fire. Do not store any sundries, or freeze any This ice machine is not intended for ... -
Page 5: General
PUNCTURE REFRIGERANT TUBING. DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED.DO NOT USE ANY ELECTRICAL APPLIANCES INTHE ICE STORAGE BIN OF THE ICE For the ice maker with MAKER. CAUTION – RISK OF FIRE OR flammable refrigerant R290: ... -
Page 6: Schematic Diagram Of Installation
2. Schematic Diagram of Installation 3. Installation Steps 1. Check if the ice machine is in good Note: This machine is equipped with condition and the accessories are an inlet water filter. The filter will have complete; check the machine model and impurities from the water accumulated as the machine nameplate. -
Page 7: Startup And Operation
source. 4.Startup and Operation 1. Before you start up the machine, please check and confirm: overflow occurs; That the packaging tape inside the ice The pump is working properly and water machine has been removed; is flowing evenly on the evaporator; The accessories or items in the ice bin The compressor is running normally, the ... -
Page 8: Instruction Of Control Panel

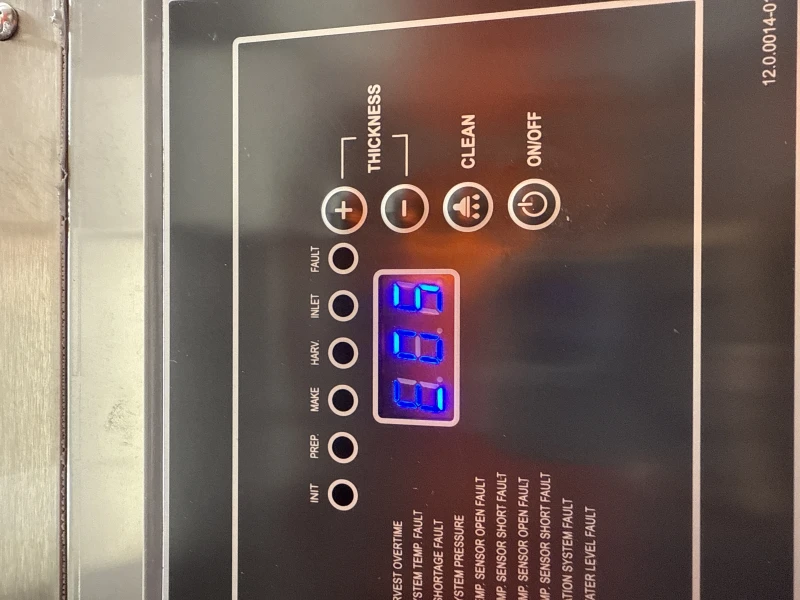

Instruction of Control Panel making process. 1. LED Display: Switch: When the device is powered, Self-check： Display “ini” code. Preparing： Counting seconds click the “Switch” button to switch positively. OFF/ON the device. Ice making: Counting seconds positively 6. - Page 9 The fault code and its comments are displayed as follows: Code Comments Machine action shutdown Protective Condensation Sliding board fails Not stop shutdown sensor open circuit Overtime of ice Protective Condensation Not stop making shutdown sensor short circuit Protective Water temp.
-
Page 10: Maintenance
Maintenance water pump or the evaporator directly for Note: Maintenance must be done by a water protection. qualified professional personal. Condenser Warning: Before maintenance or For the air-cooled ice maker, the condenser manual clean, be sure to cut off the water should be cleaned every three weeks. -
Page 11: Clean Function
Clean Function complete clean. When finished, the led Note: Please empty the bin of ice in display flashes “Clean” slowly again. Put in proper amount of sterilizing advance. solution manually followed by the clean Note: Please clean and sterilizing the and sterilizing process instruction. -
Page 12: Common Faults And Troubleshooting
Common Faults and Troubleshooting Fault Potential cause Troubleshooting Not working Power switch not turned on Turn on the power switch Indicator is OFF Plug is loose Check plug and socket Shutdown every 3 The ambient temperature is Normal working temperature range of minutes after startup;... -
Page 13: Warranty
Warranty The following circumstances are not covered Damage caused by installing, cleaning or by the warranty: maintaining of the ice machine not in Normal cleaning or maintenance; accordance with the instructions of this Unauthorized modification of the ice ...
