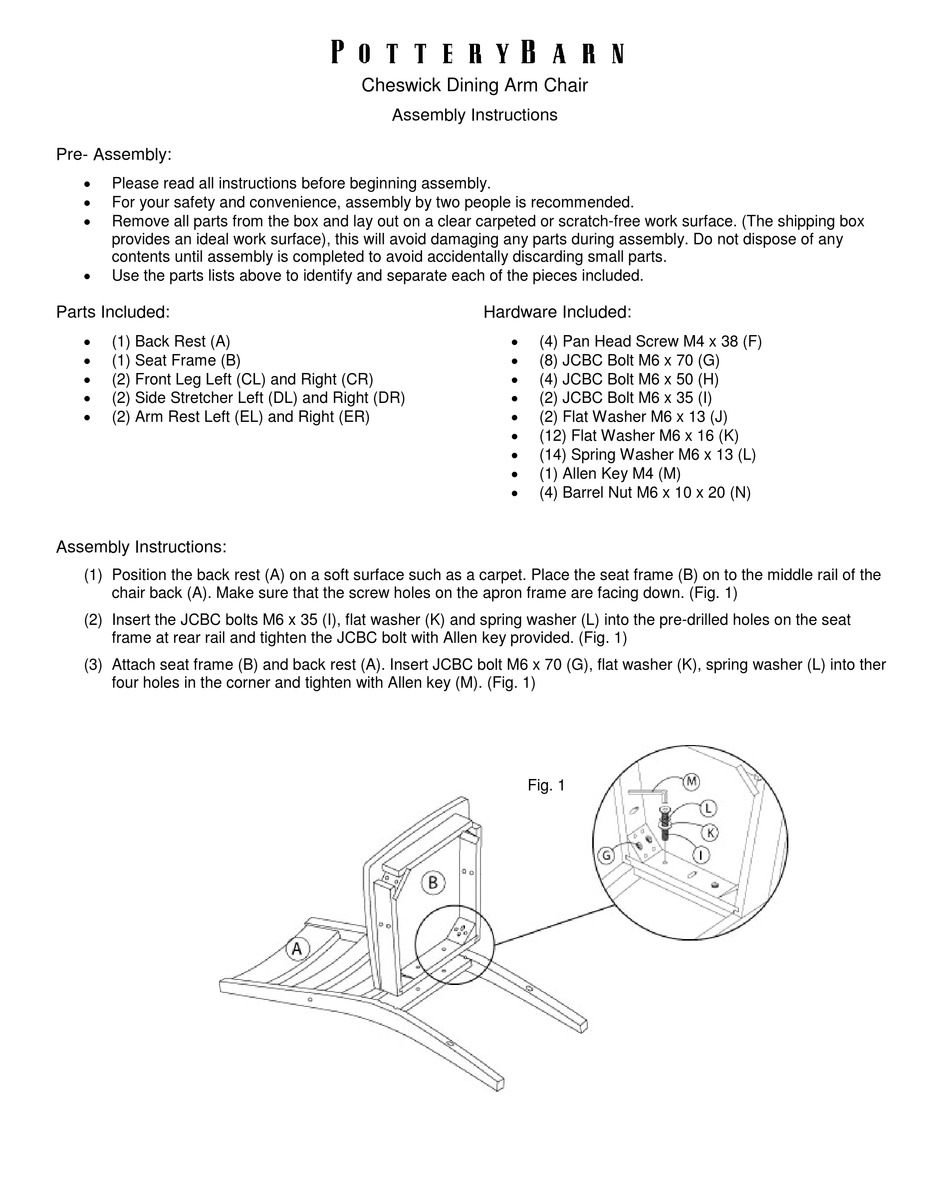

PotteryBarn Cheswick Assembly Instructions

Pre- Assembly:

Please read all instructions before beginning assembly.

For your safety and convenience, assembly by two people is recommended.

Remove all parts from the box and lay out on a clear carpeted or scratch-free work surface. (The shipping box
provides an ideal work surface), this will avoid damaging any parts during assembly. Do not dispose of any
contents until assembly is completed to avoid accidentally discarding small parts.

Use the parts lists above to identify and separate each of the pieces included.

Parts Included:


(1) Back Rest (A)

(1) Seat Frame (B)

(2) Front Leg Left (CL) and Right (CR)

(2) Side Stretcher Left (DL) and Right (DR)

(2) Arm Rest Left (EL) and Right (ER)
Assembly Instructions:
(1) Position the back rest (A) on a soft surface such as a carpet. Place the seat frame (B) on to the middle rail of the
chair back (A). Make sure that the screw holes on the apron frame are facing down. (Fig. 1)
(2) Insert the JCBC bolts M6 x 35 (I), flat washer (K) and spring washer (L) into the pre-drilled holes on the seat
frame at rear rail and tighten the JCBC bolt with Allen key provided. (Fig. 1)
(3) Attach seat frame (B) and back rest (A). Insert JCBC bolt M6 x 70 (G), flat washer (K), spring washer (L) into ther
four holes in the corner and tighten with Allen key (M). (Fig. 1)
Cheswick Dining Arm Chair
Assembly Instructions

Hardware Included:










(4) Pan Head Screw M4 x 38 (F)
(8) JCBC Bolt M6 x 70 (G)
(4) JCBC Bolt M6 x 50 (H)
(2) JCBC Bolt M6 x 35 (I)
(2) Flat Washer M6 x 13 (J)
(12) Flat Washer M6 x 16 (K)
(14) Spring Washer M6 x 13 (L)
(1) Allen Key M4 (M)
(4) Barrel Nut M6 x 10 x 20 (N)
Fig. 1
