- Page 1 Cover PSA1 PSA1 Owner’s Manual Manuel de L’Utilisateur PSA1 + PSA1 REV2 + PSA1 REV3...
-
Page 2: Important Safety Instructions - English / Français
Important Safety Instructions - English / Français I MP OR TA N T S A FE T Y I N ST R U C T IO N S This lightning flash with arrowhead symbol, within an The exclamation point within an equilatereal triangle is intended to alert the user to the presence equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous of important operating and maintenance (servicing) instructions in the literature accompanying voltage”... -
Page 3: Table Of Contents
PSA1 Table of Contents Caractéristiques du Cabinet ..........4 Cover .................. a Caractéristiques Électroniques ........... 4 Important Safety Instructions - English / Français ....i Table of Contents ..............ii 1. Interrupteur d’Alimentation et Indicateur ..... 4 2. Entrée et Sortie CA ............. 4 PSA1 Powered Speaker ............. -
Page 4: Psa1 Powered Speaker

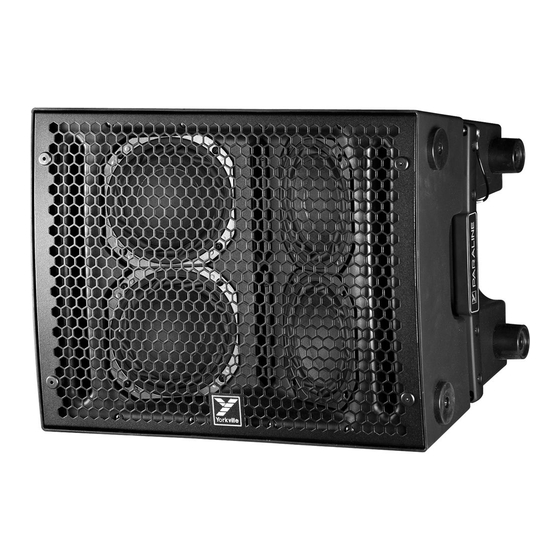

6-inch woofers mounted on a 110°H x 15°V constant directivity horn. Paraline technology was first developed for Yorkville’s flagship VTC Pro Audio Elevation series line array. By channeling the sound waves along equidistant paths, the Paraline lens converts the point source compression drivers into a line source with constant phase and amplitude. -
Page 5: Input Jack
3. Input Jack This female-XLR / ¼-inch TRS combi-jack accepts Limit Clip Power either line level XLR or ¼-inch TRS patch cables. For best noise reduction use balanced cables. Unbalanced ¼-inch TS cables can be used for unbal- Level anced signal sources if needed. Flat Fullrange Note: Both ¼-inch and XLR inputs have... -
Page 6: Set-Up Example
Set-Up Example 1. Place the PSA1 on a stand at the appropriate angle. Use the 0° pole position if mounting one cabinet on a pole and use the –7.5° position if stacking two cabinets. 2. If you are stacking a second cabinet, be sure to connect the safety lanyards on the bottom cabinet to the handles of the top cabinet. -
Page 7: Psa1 Enceintes Amplifiées
à directivité constante 110 ° H x 15 ° V. La technologie PARALINE a d’abord été développé pour utilisation sur la série d’enceintes Elevation VTC de Yorkville. En canalisant les ondes sonores le long des sentiers équidistants, la lentille PARALINE convertit les drivers à compres- sion de source de pointe en source en ligne avec phase et amplitude constantes. -
Page 8: Prise D'entrée
3. Prise d’Entrée Cette prise femelle XLR / ¼ de pouce PBM combi- Limit Clip Power jack accepte les signaux de niveau de ligne de câble de raccordement XLR ou ¼ de pouce PBM . Pour un meilleur rapport signal / bruit, utilisez des câbles symétriques. -
Page 9: Exemple De Configuration
Exemple de Configuration 1. Placez le PSA1 sur un stand à l’angle approprié. Utilisez la position de 0° pour le montage d’une seule enceinte et utiliser la position -7,5° si vous superposez deux enceintes. 2. Si vous superposez une deuxième enceinte, assurez-vous de connecter les longes de sécurité sur l’enceinte du bas aux poignées de l’enceinte du haut. -
Page 10: Specifications - English
PSA1 Specifications - English Specifications Active Active or Passive 700 Program (1200 watts Peak) Program Power (watts) Biamp Biampable 128dB Peak (125dB Continuous) Max SPL (dB) 75Hz-20K Frequency Response (Hz +/- 3db) 1.2K Crossover Frequency (Hz) 2x1", 4x6" Driver Configuration 2x1-inch Ceramic w/ 1.75-inch VoiceCoil HF Driver(s) 75 watts (200 watts Peak) -
Page 11: Specifications - Français
PSA1 Specifications - Français Spécifications Active ou Passive Active Puissance Nominale (Watts) 700 Nominale (Pointe: 1200 watts) Bi- Amplification Biamp Pression Sonore Maximum (dB) 128dB Pointe (125dB Continue) Réponse en Fréquences (Hz +/- 3db) 75Hz-20K Fréquence de Coupure (Hz) 1.2K Configuration de Haut-Parleur 2x1", 4x6"... -
Page 12: Block Diagram
P S A 1 B l o c k D i a g r a m D E S I G N E D & M A N U FA C T U R E D B Y Y O R K V I L L E S O U N D Compression ±44V ±22V Drivers... -
Page 13: Warranty - English / Français
Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge. -
Page 14: Rear Page
WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Limited Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W 3Y8 CANADA 14305, USA Voice: 905-837-8481 Voice: 716-297-2920 Fax: 905-837-8746 Fax: 716-297-3689 Manual-Owners-PSA1-00-1v4 • September 13, 2022...
