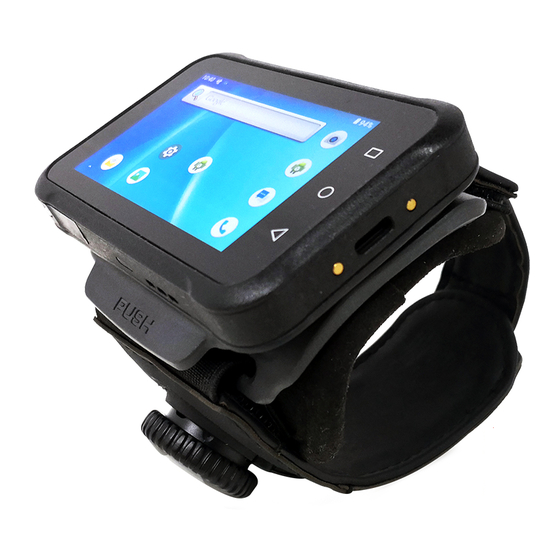

- Page 1 How to Attach WD200 Wrist Holder Kit Installation Guide Version 1.0...
- Page 2 Introduction The Wrist Holder Kit (PN#3210-900026G) consists of three parts, Wrist Bracket (PN#608941G), Wrist Holder pad (PN#386215G) and Wrist Holder strap (PN#609032G). Wrist Holder Kit Wrist Bracket Wrist Holder pad Wrist Holder strap (PN#3210-900026G) (PN#608941G) (PN#386215G) (PN#609032G) Please install the wrist holder kit following the instructions below.
- Page 3 (1) Flip WD200 to its rear side, and the power button side facing left. (2) Flip the bracket to ensure the Velcro side is facing upward. (3) Slide WD200 into the two recesses on the bracket. You will hear a click sound when attached successfully.
- Page 4 Slip the wrist holder strap through the wrist bracket (1) When holding the strap, make sure the arrows on the back are pointing to the direction of the bracket. (2) Make sure the Velcro side of the strap is facing upward. Rear view of the strap (3) Thread the strap through the slot connection.
- Page 5 Put the wrist holder pad onto the bracket (1) Put your hand between the strap and the bracket to make a space. (2) Attach the pad on the bracket. Note: make sure the Velcro side of the pad is facing down and matches with the bracket.
- Page 6 Attach Velcro to wrist strap Attach one of the Velcro to wrist strap, and make sure the end with Velcro on the back comes up first. Attach the other Velcro to the strap, and you will see the arrows on the top.
- Page 7 Wear on Wear on the wrist holder kit, then you can start your mobility work. Note: Make sure the camera is facing outward. Wearing the wrist holder kit on your left hand Wearing it on your right hand...
