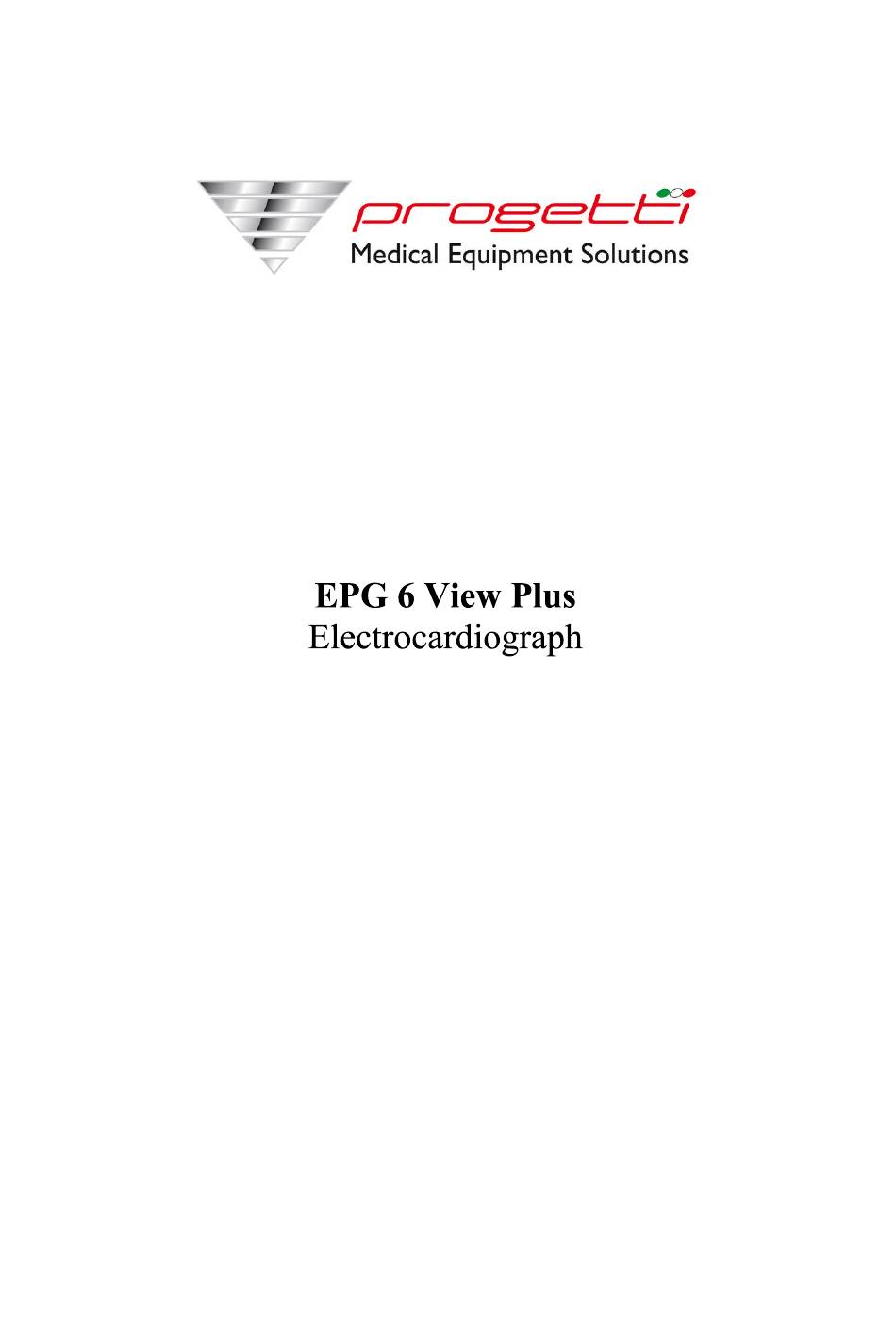

- Page 1 User’s manual Edition III – Rev. March 2010...
-
Page 2: Contents
EPG 6 View Plus Electrocardiograph – User’s Manual Edition Date Changes Editor Format changes Added CE Declaration of Conformity 08.02.09 Improved functionality – added configuration option of AUTO Examination printout Changes in functionality: Import of Examinations from PENDRIVE ... -
Page 3: Table Of Contents
EPG 6 View Plus Electrocardiograph – User’s Manual Contents CONTENTS INTRODUCTION PRECAUTIONS AND SAFETY INSTRUCTIONS DESCRIPTION NSIDE THE BOX SUPPLIED ACCESSORIES OVERVIEW LECTROCARDIOGRAPH UNIT TEERING TOP PANEL KEYBOARD UNCTION KEYS SCREEN ECHNICAL SPECIFICATIONS USING THE APPLIANCE UNCTIONAL ABILITIES RELIMINARIES APER LOADING... -
Page 4: Introduction
In the rest of heart illness cases ECG seems to be rare authoritative, but it is a vital supplemental examination. EPG 6 VIEW PLUS Electrocardiograph allows to record on thermal paper heart impulses in full range of 12 standard channels. The device is compact. It has small dimensions and a built- in battery. -
Page 5: Description
Description EPG 6 VIEW PLUS electrocardiograph is a sophisticated and modern electronic device. It is dedicated to record ECG impulses in full range of 12 standard channels. Printout is made on thermal paper. The device is equipped with high resolution linear thermal printing unit and color LCD. -
Page 6: Overview
EPG 6 View Plus Electrocardiograph – User’s Manual Overview Electrocardiograph unit paper cover LCD display power socket USB connectors paper feeder release button keyboard electrodes connector Steering top panel - keyboard 6 / 25... -
Page 7: Function Keys
EPG 6 View Plus Electrocardiograph – User’s Manual Function keys Recording – automatic mode AUTO START Recording – manual mode Stop recording STOP Setting recording sensitivity mm/mV Setting recording speed mm/s Setting active filters FILTR 3/6/12 Setting the number of leads to be recorded Setting the group of leads to be recorded I,II..V6... -
Page 8: Technical Specifications
EPG 6 View Plus Electrocardiograph – User’s Manual Technical specifications Dimensions (W x H x D) 260 W x 52 H x 220 D mm Weight <1,8kg Power Supply AC 90-240V, 50-60Hz Built-in Battery Li-ion 7,2V, 2,2Ah Can be replaced only by qualified servicing personnel Power Consumption <30VA... -
Page 9: Preliminaries
EPG 6 View Plus Electrocardiograph – User’s Manual the examination. It is also available to activate or deactivate additional ECG signals interferences filters. Copy printout It provides function to make an automatic examination copy printout stored in appliance’s internal memory. The memory can store at least 100 ECG examinations. -
Page 10: Paper Loading
EPG 6 View Plus Electrocardiograph – User’s Manual Paper loading The loading thermal paper in to the built-in printer is very easy. To do it open the paper cover releasing it with button located at the end of papers exit hole (refer to the picture below). Put the roll of the paper in its place in the printer and lead out the end of it outside of the cover. -
Page 11: Setting Up Recording Parameters
EPG 6 View Plus Electrocardiograph – User’s Manual Setting up recording parameters Before starting the examination it is needed to set up the required recording parameters. Turning the appliance on automatically recalls parameters last set in the setup menu. If... -
Page 12: Arrangement Of Electrodes
EPG 6 View Plus Electrocardiograph – User’s Manual Arrangement of electrodes The appliance is equipped with 10-electrode wire cable. The standard arrangement: Lead type Lead Connection – body location Right arm Einthoven’s Yellow Left arm bipolar limb leads Green Left leg... -
Page 13: Entering Personal Information Of The Patient
EPG 6 View Plus Electrocardiograph – User’s Manual Entering personal information of the patient The appliance allows to add the patient’s personal information to his examination data. To MENU add new information first press then pick ‘PATIENT’. Confirm the selection with Enter . -
Page 14: Examination In Manual Mode
EPG 6 View Plus Electrocardiograph – User’s Manual Schematic representation of normal ECG Part of RR Action Duration P wave Depolarization of atrial muscle 100ms Depolarization of atrioventricular node and atrioventricular PQ segment 50ms bundle Conducting depolarization from sinoatrial node to ventricles’... -
Page 15: Making The Copy Of Examination
EPG 6 View Plus Electrocardiograph – User’s Manual Making the copy of examination It is possible to print the copy of automatic mode examination. It can be made by pressing MENU Enter followed by picking ‘COPY’ option and confirming it with . - Page 16 EPG 6 View Plus Electrocardiograph – User’s Manual Caution! – This operation cannot be undone! The copy of the examination can be saved after the automatic MENU then pick COPY → mode recording is done. First press MEMORY → SAVE. If there is no previous data of the current Saving the examination patient stored in the memory, it will be stored now.
-
Page 17: Configuration
Configuration The settings of EPG 6 VIEW PLUS Electrocardiograph configuration are adjustable in wide range. They can be set according the user’s actual needs. Turning the appliance on brings the default initial settings and not adjustable – during the normal using – parameters (e.g. clock time, date, language). - Page 18 EPG 6 View Plus Electrocardiograph – User’s Manual To configure the initial settings use INITIAL SETTINGS option. Initial settings can be easily changed during normal using with the navigation keys. The set presets will always appear after each turning on the device.
- Page 19 EPG 6 View Plus Electrocardiograph – User’s Manual Managing the advanced settings is similar to the presets configuration. The list of available options in the advanced settings section: Option Description MAINS Sets the frequency of the mains – 50Hz or 60Hz Activates or deactivates the antidrift filter.
-
Page 20: Menu Navigation Map
EPG 6 View Plus Electrocardiograph – User’s Manual Menu navigation map MENU PATIENT COPY SETUP CURRENT MEMORY REPORT INITIAL SETTINGS CONFIGRUATION EDIT EDIT EDIT EDIT EDIT EXIT EXIT EXIT EXIT EXIT SAVE READ DELETE PRINT MEMORY PENDRIVE EXIT EXIT PATIENTS LIST... -
Page 21: Cleaning, Concurrent Disinfection, Maintenance
EPG 6 View Plus Electrocardiograph – User’s Manual Cleaning, concurrent disinfection, maintenance Caution! – Before any cleaning or maintenance unplug the appliance from the wall power outlet! Do not use any abrasive cloths, thinners, alcohol, spray or other chemical solvents. Use only a soft clean cloth –... -
Page 22: Manufacturer's Declaration Of Conformity For The Electromagnetic Compatibility
EPG 6 View Plus Electrocardiograph – User’s Manual Manufacturer’s Declaration of Conformity for The Electromagnetic Compatibility Electromagnetic emission tests Tests Conformity Electromagnetic environment CISPR 11 EPG 6 VIEW PLUS Electrocardiograph is the RF Disturbance equipment in which there is intentionally generated... - Page 23 EPG 6 View Plus Electrocardiograph – User’s Manual IEC 61000-4-8 3A/m Typical hospital or Power commercial establishments Frequency Magnetic Fields IEC 61000-4-6 3Vrms 3V/m Mobile devices Conducted 150kHz to Disturbances 80MHz IEC 61000-4-3 3Vrms 3V/m Radiated RF 80MHz to Electromagnetic...
- Page 24 EPG 6 View Plus Electrocardiograph – User’s Manual 24 / 25...
- Page 25 EPG 6 View Plus Electrocardiograph – User’s Manual Info: PROGETTI S.R.L. Via Bruno Buozzi, 28 10024 Moncalieri – TO – Italy Tel. +39 011 644738 Fax. +39 011 645822 info@progettimedical.com www.progettimedical.com 25 / 25...
