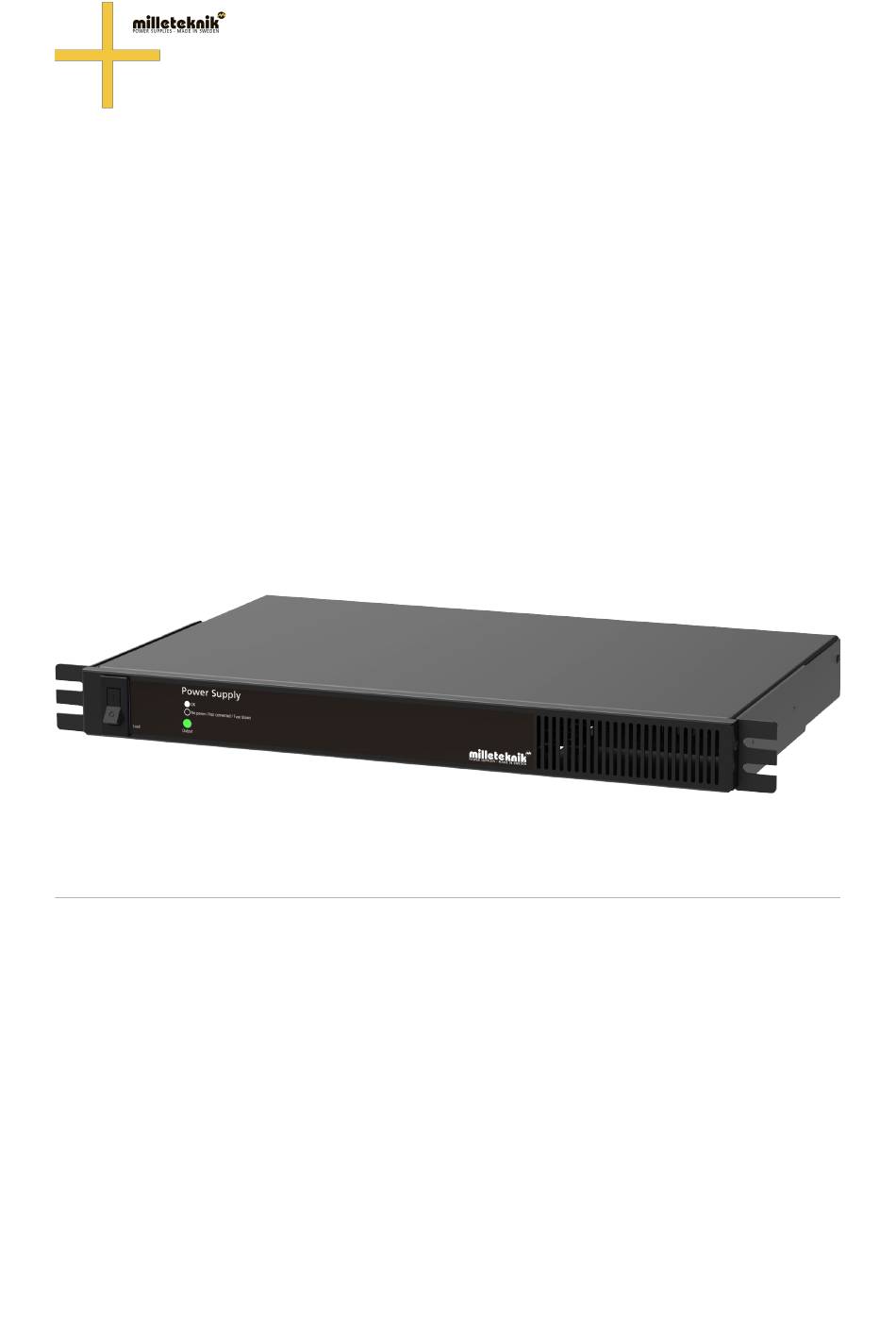

- Page 1 Power Supply 24V 15A 1U...
- Page 2 350-078 Publication date 2023-03-09...
-
Page 3: Table Of Contents
Power supply 24V 15A is a rack-mounted power supply that can be used independently or together with Redundancy panel 1U or with a battery backup from Milleteknik. Area of use: To supply power to access systems, locking systems and fire alarms and other facilities... -
Page 4: Component Overview
READ THIS FIRST! If possible, leave 100 mm of free space. The system is intended for use in a controlled indoor environment. Only authorized persons should install and maintain the system. It is the installer's responsibility to ensure that the system is suitable for its intended use. -
Page 5: Enclosures
Figure 2. Back Explanation Mains, 230 V in Double sum alarm, NO/COM/NC+NO/COM/NC.Sum alarm: alarm in the event of a loss of voltage from the power supply unit after the load fuse has tripped. Load -- / ++ 3. ENCLOSURES 3.1. Installation in 19" rack The unit must be mounted in a 19"... -
Page 6: Mounting
3.2. Mounting 4. MAINS CONNECTION Use 3-pin mains plug for connection to 230 V. [4] 5. CONNECT LOAD 24 V load is connected via quick contact. (Redundancy panel 1U is also connected here.) [5] Component overview 6. CONNECT ALARM Alarm is connected on the back. NO/CO/NC. Use any connection, the alarms are duplicated. Total alarm: Alarm in the event of loss of voltage from the power supply unit after load protection. -
Page 7: Panel Explanation
8. PANEL EXPLANATION Table 1. Indicator diode on the front LEDs Explanation Solid green Ok - normal mode Flashing green Alarm Turned off No power from mains / not connected to mains / Fuse has tripped. 9. REGULATIONS AND CERTIFICATIONS 9.1. -
Page 8: Power Supply
10 years after the date of purchase. Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support costs may (at Milleteknik's discretion) occour after the warranty period has expired. -
Page 9: Designed And Produced By: Milleteknik Ab
12.3. Designed and produced by: Milleteknik AB Designed and produced by Milleteknik AB 13. PRODUCT LIFE CYCLE, ENVIRONMENTAL IMPACT AND RECYCLING The product is designed and constructed for a long service life, which reduces the environmental impact. The product's service life depends on, among other things, environmental factors, mainly ambi- ent temperature, unforeseen load on components such as lightning strikes, external damage, handling errors, and more. - Page 10 This page is intentionally left blank.
- Page 11 This page is intentionally left blank.
- Page 12 This page is intentionally left blank.
