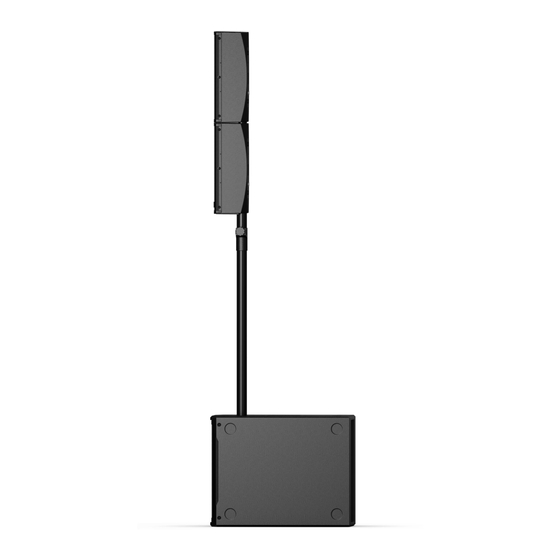

Audibax Detroit 1000 DSP User Manual

Detroit 1000 DSP
Specifications
Model No.
Type
Frequency Response (-6dB)
Max. SPL (1m, free space)
Power Output (RMS)
Impedance
Transducer MF
Amplifier
Audio / Power Input / Output Top and bottom 4-pins-quick-insert with 4 core ( 2Core 24V / 2Core
Enclosure
Grille
Dispersion (H * V)
Package Measure
Gross Weight
Model No.
Type
Frequency Response (-6dB)
Max. SPL (1m, free space)
Power Output (RMS)
Impedance
Transducer LF
Amplifier
DSP Module 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live
Protection
Power On / Off switch, satellite level, subwoofer level, Line/Mic
Controls
switch, Bluetooth On / Off switch, TWS switch, reset switch, DSP modes
Indicators
Audio Input / Output Left / Right female and male XLR input, 1 * XLR output, 1* Satellite
Power Input / Output
Power Supply
Enclosure
Grille 1.0mm thickness metal grille without acoustic fabric
M20 Stand Adaptor
Package Measure
Gross Weight
3
Detroit 1000 DSP-SAT
Active full range column speaker
200 Hz - 21 kHz
109 dB
60W
4Ohms
4 * 2.75", neodymium magnet, 1" voice coil
Class-D amplifier
Signal +/- )
PP Plastic
1.0mm thickness metal grille without acoustic fabric
120° * 30°
19*17*38 cm
2.1 kgs
Detroit 1000 DSP-SUB
10'' active bass reflex
47 Hz - 200 Hz
117 dB
400W
4 Ohms
10" subwoofer, 1.5" voice coil
Class-D amplifier
Short circuit overheating, over-current
switch
Power, signal, limit, bluetooth, reset
Speakon output
Speakon
100-230V~ 60/50Hz
15mm MDF with regular raindrop painting
Yes
72*37*48 cm
22 kgs
Detroit 1000 DSP
Please read the manual before using the product
USER´S
MANUAL
