- Page 1 User Manual ENGLISH 193-24-BK 193-36-BK 196A-24-BK MA193-10-BK MA193-14-BK MA194-24-BK MN93-BK MN193-BK MR193-BK SL261 SR193-BK CURRENT PROBES & SENSORS (For Power Quality Meters & Power Energy Loggers) WITH AEMC INSTRUMENTS ®...
- Page 2 Copyright Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All rights reserved. © ® ® No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or translation into any other language) without prior agreement and written consent from Chauvin Arnoux , Inc., as governed by United States and International copyright laws.
- Page 3 Thank you for purchasing an AEMC Instruments current probe. ® For the best results from your instrument and for your safety, you must read the enclosed operating instructions carefully and comply with the precautions for use. Only qualified and trained operators should use this product. Symbols CAUTION - Risk of Danger! Indicates a WARNING.
- Page 4 PRECAUTIONS BEFORE USE The protection assured by the current probe can be compromised if it is used in a way that is not recommended by the manufacturer. ■ Comply with the rated maximum voltage and current, and the measurement category. Do not use the current probe on networks where the voltage or category exceeds those specified.
-
Page 5: Table Of Contents
Table of Contents 1. INTRODUCTION .................4 1.1 Receiving Your Shipment..............4 1.2 Ordering Information ................4 2. PRODUCT FEATURES ...............5 2.1 Control Features ...................5 2.1.1 MiniFlex Model MA193-BK .............6 ® 2.1.2 MiniFlex Model MA194-BK .............7 ® 2.1.3 AC/DC Current Probe Model J93-BK ........8 2.1.4 AC Current Probe Models MN93-BK &... -
Page 6: Introduction
1.2 Ordering Information NOTE: The current probes in this manual are compatible only with AEMC Instruments Power Analyzers (see § 4 for meter compatibility). ® Sensor 24" Model 193-24-BK ..........Cat. #2140.34 AmpFlex ® AmpFlex Sensor 36" Model 193-36-BK ..........Cat. #2140.35 ®... -
Page 7: Product Features

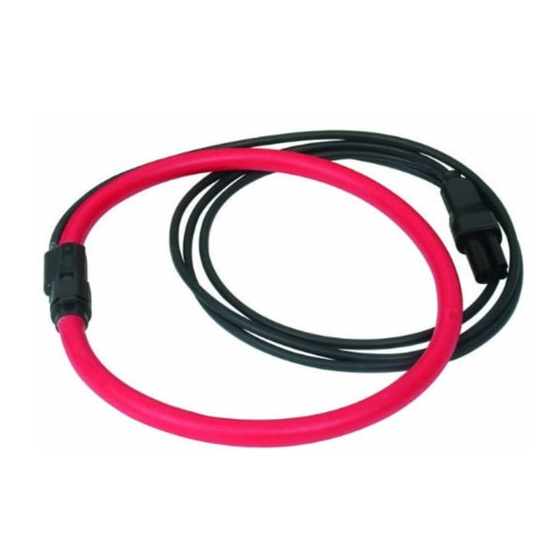

2. PRODUCT FEATURES 2.1 Control Features AmpFlex Models 193-24-BK, 193-36-BK & 196A-24-BK ® Flexible sensor Sensor opening connector Shielded lead Custom 4-pin input connector (available standard or IP 67 compliant, depending on instrument) Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 8: Miniflex Model Ma193-Bk
2.1.1 MiniFlex Model MA193-BK ® Flexible sensor Sensor opening device Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 9: Miniflex Model Ma194-Bk
2.1.2 MiniFlex Model MA194-BK ® Flexible sensor Sensor opening device Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 10: Ac/Dc Current Probe Model J93-Bk
2.1.3 AC/DC Current Probe Model J93-BK ZERO 300 V CA T IV 600 V CA T III Jaws Custom 4-pin input connector Safety guard Zero adjustment knob Power ON /Low battery indicator Three-position switch: ON, OFF, battery test Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 11: Ac Current Probe Models Mn93-Bk & Mn193-Bk
2.1.4 AC Current Probe Models MN93-BK & MN193-BK Jaws Protective guard Two-position range switch (MN193-BK only) Jaw opening lever Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 12: Ac Current Probe Model Mr193-Bk
2.1.5 AC Current Probe Model MR193-BK Jaws Protective guard Jaw opening lever Two-position range switch Shielded lead Zero adjustment Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 13: Ac Current Probe Model Sl261
2.1.6 AC Current Probe Model SL261 Jaws Zero adjust knob Range selection switch Battery compartment screw Battery compartment cover BNC Adapter (sold separately - Cat. #2140.40) Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 14: Ac Current Probe Model Sr193-Bk
2.1.7 AC Current Probe Model SR193-BK Jaws Protective guard Jaw opening lever Shielded lead Custom 4-pin input connector Current Probes & Sensors for Power Quality Meters and Power Energy Loggers... -
Page 15: Operation
3. OPERATION The current probes and flexible sensors are used to measure the current flowing in a conductor or bus bar without opening the circuit. They also insulate the user from dangerous voltages in the circuit. The choice of current probe or sensor to be used depends on the amperage to be measured and the diameter of the cables or size of the bus bar. - Page 16 For Probes: ■ Press the jaw opening lever on the probe to open the jaws. ■ Clamp the probe around the conductor to be tested. For best results, center the conductor in the jaws of the clamp. For AmpFlex and MiniFlex Sensors: ®...
-
Page 17: Specifications
NOTE: For complete specifications refer to the product user manual that is supplied with each compatible instrument. Model Measurement Range Compatibility AmpFlex 193-24-BK 200 mA to 10 kA All PowerPads and ® 24 in (610 mm) (12,000 A) PEL 100 Series... -
Page 18: Environmental
4.3 Mechanical Lead Clamping Model Dimensions Weight Length Diameter (nominal) AmpFlex 193-24-BK 10 ft 7.64 in (6.6 x 6.2 x 0.98) in 7.7 oz ® 24 in (610 mm) (3 m) (190 mm) (170 x 158 x 25) mm (270 g) -
Page 19: Safety
4.4 Safety Protection index IP 40 for the probes and IP 30 jaws open, according to IEC 60 529 ■ IP 65 for the AmpFlex according to IEC 60 529 ® ■ IK 04 according to IEC 50102 Drop test: According to IEC 61010-1 Electrical safety according to IEC 61010-2-032. -
Page 20: Maintenance
5. MAINTENANCE Use only factory specified replacement parts. AEMC instruments will not be held ® responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. CAUTION: Risk of electric shock. Disconnect the instrument from any source of electricity. -
Page 21: Model J93-Bk
5.2.3 Model J93-BK ■ Insert a tool, not more than 3 mm in diameter, in the hole in the battery compartment cover. ■ Push to unlock the battery compartment cover, then slide it off. ■ Remove it completely by hand. ■... -
Page 22: Technical Assistance
5.4 Technical Assistance If you are experiencing any technical problems or require any assistance with the proper operation or application of your instrument, please call, e-mail or fax our technical support team: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ®... -
Page 23: Warranty Repairs
5.5.1 Warranty Repairs What you must do to return an Instrument for Warranty Repair: repair@aemc.com First, send an email to requesting a Customer Service Autho- rization Number (CSA#) from our Service Department. You will be provided a CSA Form and other required paperwork along with the next steps to complete the request. - Page 24 02/23 99-MAN 100391 v12 AEMC Instruments ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (603) 749-6434 • (800) 343-1391 • Fax: (603) 742-2346 www.aemc.com © Chauvin Arnoux , Inc. d.b.a. AEMC Instruments. All Rights Reserved. ® ®...
