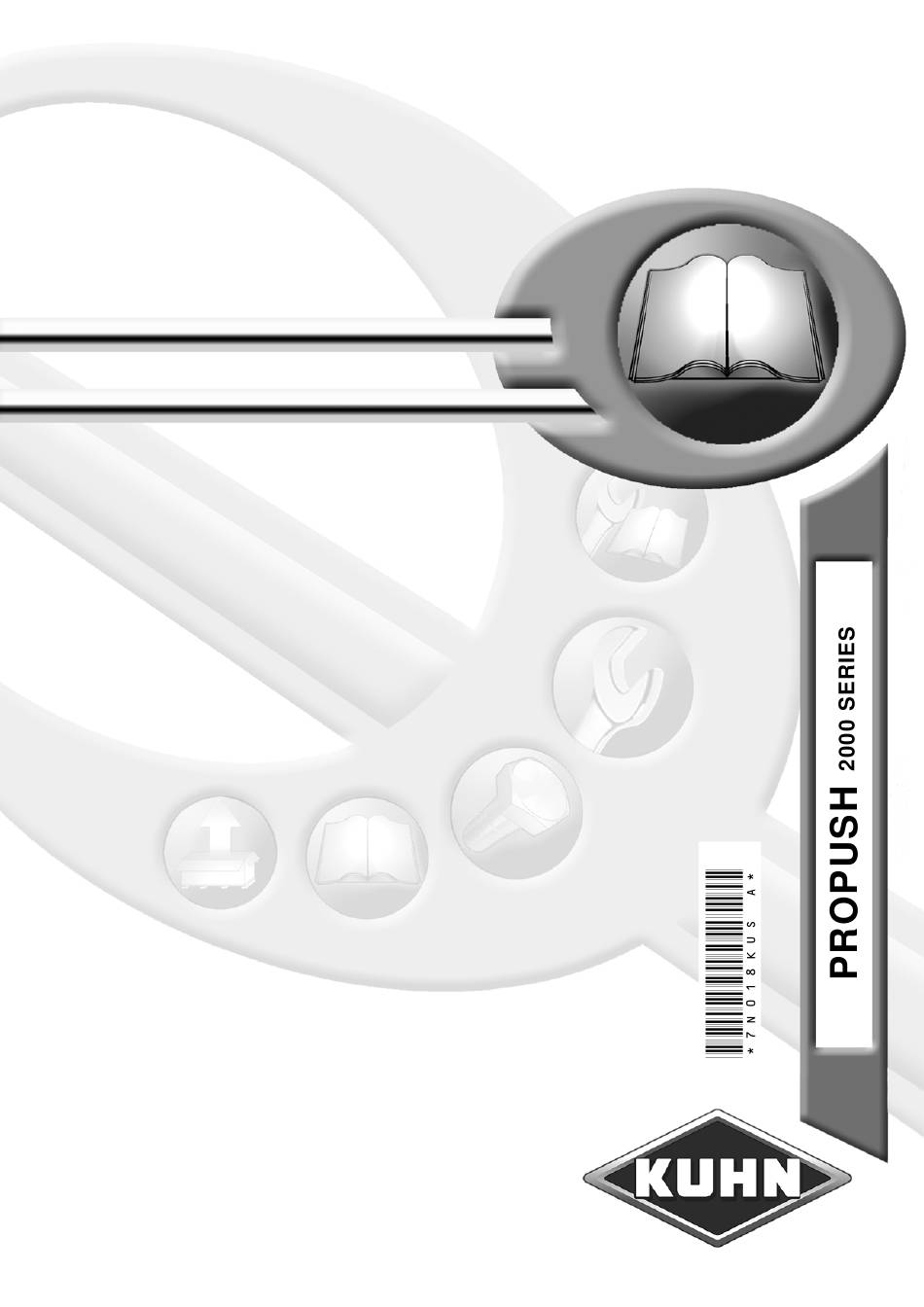

- Page 1 OPERATOR'S MANUAL 7N018KUS_A Read carefully before starting the machine Box Spreader Trailer Type 2044 ---A1042-00L00001 > 2054 ---A1042-10M00001 > - English (USA) - 09-2019 7N018KUS_A...
-
Page 3: Dear Owner
1. Dear Owner In buying a Kuhn machine you have chosen wisely. Into it have gone years of thought, research and improvement. You will find, as have thousands of owners all over the world, that you have the best that engineering skill and actual field testing can produce. -
Page 4: Table Of Contents
Box Spreader Trailer Type PROPUSH 2000 SERIES 2. Contents Dear Owner ........................1 Contents ..........................2 Identification of the machine..................4 Front view ............................4 Rear view ............................4 Identification of the machine ......................5 3.3.1 Location of the plates ......................5 3.3.2 Description.......................... - Page 5 Box Spreader Trailer Type PROPUSH 2000 SERIES PTO setup............................30 6.3.1 Torque disconnect information ..................30 6.3.2 Shear bolt ......................... 31 6.3.3 PTO minimum and maximum operating dimensions............31 6.3.4 Driveline attachment......................32 6.3.5 Driveline maintenance...................... 32 Spreader setup ..........................33 6.4.1...
-
Page 6: Identification Of The Machine
Box Spreader Trailer Type PROPUSH 2000 SERIES 3. Identification of the machine Front view Rear view 3. - Identification of the machine 7N018KUS_A... -
Page 7: Identification Of The Machine
Do not remove the manufacturer, homologation and marking plates attached to the machine. 3.3.1 Location of the plates Note the serial number of your machine: • Serial Number: This information is to be given to the Kuhn authorized dealer for any spare parts order or warranty claim. 3.3.2 Description ... -
Page 8: Optional Equipment
Box Spreader Trailer Type PROPUSH 2000 SERIES Optional equipment Check the boxes corresponding to the equipment fitted on your machine. See the Optional Equipment section for more details. Kit no. 18964973: 1000 drive kit 1.38-21 torque disconnect - All models except 2044 horizontal ... - Page 9 Box Spreader Trailer Type PROPUSH 2000 SERIES Kit no. 18964953: Safety chain - 2054 Only Kit no. 18968413: Transport light kit - All models Kit no. 18968422: Transport light kit - Export - All models Kit no. 18968668: Heavy duty vertical beaters - 2044 Only 3.
-
Page 10: Safety
Box Spreader Trailer Type PROPUSH 2000 SERIES 4. Safety Description of symbols used in this document This symbol indicates a potentially hazardous situation that if not avoided, could result in serious bodily injury. This symbol is used to identify special instructions or procedures which, if not followed strictly, could result in machinery damage. -
Page 11: Safety Instructions
Never let anyone operate the machine who is not trained to do so. Should you have any difficulties in understanding any parts of this manual, please contact your KUHN dealer. Safety shutdown procedure Before adjusting, maintaining or repairing the... - Page 12 Box Spreader Trailer Type PROPUSH 2000 SERIES Precautions to take before using the machine Be sure the inside of the spreader is clear of any obstructions before operating. Do not wear loose clothing which could become caught up in moving parts.
- Page 13 Box Spreader Trailer Type PROPUSH 2000 SERIES Precautions when driving on public roads Dimensions Depending on the dimensions of the machine, contact the relevant authorities to ensure that it can be legally transported on public roads. If the machine is over the maximum legal size, follow the applicable regulations for special transportation of oversize equipment.
- Page 14 Box Spreader Trailer Type PROPUSH 2000 SERIES Precautions when coupling Before attaching the machine, make sure that it cannot accidentally start moving (chock the wheels) and that the parking stand is in the right position. The machine must only be attached to the hitch points provided for this purpose.
- Page 15 Box Spreader Trailer Type PROPUSH 2000 SERIES PTO shaft Before attaching or removing a PTO shaft, perform the safety shutdown procedure. Use only PTO shafts supplied with the machine or recommended by the machine manufacturer. The protective shield of the tractor PTO stub, the...
- Page 16 Box Spreader Trailer Type PROPUSH 2000 SERIES Precautions for machine use Stay a safe distance from the machine when it is in use. Never work in reverse. If an obstacle is hit, stop the machine and perform the safety shutdown procedure. Check the entire machine for any damage before resuming work.
- Page 17 Box Spreader Trailer Type PROPUSH 2000 SERIES Precautions for maintenance and repair work Before adjusting, maintaining or repairing the machine, perform the safety shutdown procedure. Repairs on elements under pressure or tension (springs, pressure accumulators, etc.) must only be carried out by competent persons with regulation equipment.
-
Page 18: Location And Description Of Safety Decals On The Machine
Box Spreader Trailer Type PROPUSH 2000 SERIES Location and description of safety decals on the machine Location of safety decals 4. - Safety 7N018KUS_A... - Page 19 Box Spreader Trailer Type PROPUSH 2000 SERIES 4. - Safety 7N018KUS_A...
- Page 20 Box Spreader Trailer Type PROPUSH 2000 SERIES Description of safety decals Operating instructions (1) Rotating parts hazard (2) Safety shields (3) 4. - Safety 7N018KUS_A...
- Page 21 Box Spreader Trailer Type PROPUSH 2000 SERIES Rotating parts hazard (4) Crush hazard (5) Crush hazard (6) Entanglement and thrown object hazard (7) Rotating parts hazard (8) 4. - Safety 7N018KUS_A...
- Page 22 Box Spreader Trailer Type PROPUSH 2000 SERIES Danger, thrown object hazard (9) Red reflector (10) Amber reflector (11) Slow moving vehicle sign (12) Speed identification symbol (13) mile/h 4. - Safety 7N018KUS_A...
- Page 23 The part numbers for the decals are located in the lower right corner of the decal. Replacement decals may be ordered through your dealer or Kuhn. Replacing decals: When replacing decals, be sure the surface is clean and dry.
-
Page 24: Road Safety Equipment And Recommendations
Road safety equipment and recommendations The road safety equipment is mounted at the factory or by your authorized Kuhn dealer according to current safety regulations. Always keep to the legal speed limit for driving a tractor-machine assembly on public roads. -
Page 25: Lights
Box Spreader Trailer Type PROPUSH 2000 SERIES 4.4.1 Lights Colors Function SAE Terminal # ISO Terminal # White Ground 1 - See note 1 Black Left running lights 1 - See note 1 Yellow Left turn & hazard Stop lights... -
Page 26: Machine Specifications
Box Spreader Trailer Type PROPUSH 2000 SERIES 5. Machine specifications Description and glossary Hitch Thrown object shield Poly floor and sides Jack Tires Endgate Tongue Pusher guide Horizontal beaters PTO cover Pusher Vertical beaters Cylinder Body Transport lights 5. - Machine specifications... -
Page 27: Technical Specifications
Box Spreader Trailer Type PROPUSH 2000 SERIES Technical specifications Model 2044 2054 Specifications Horizontal Vertical Horizontal Vertical A - Overall length 343’’ (871 cm) 356’’ (904 cm) 343’’ (871 cm) 357’’ (907 cm) B - Inside box length 194’’ (493 cm) 194’’... - Page 28 Box Spreader Trailer Type PROPUSH 2000 SERIES Model 2044 2054 Specifications Horizontal Vertical Horizontal Vertical Unit weight - pounds 7620 (3456 Kg) 9440 (4282 Kg) 10,900 (4944 Kg) 12,520 (5679 Kg) Maximum net load - pounds 28,500 (12927 Kg) 28,500 (12927 Kg) 35,000 (15876 Kg) 35,000 (15876 Kg)
-
Page 29: Putting Into Service
PTO as specified and the drawbar is centered and locked in place. Kuhn does not recommend or authorize PTO adapters. Dimension A 1 3/8 - 6 13 3/4’’ ± 3/8’’... -
Page 30: Machine Requirements
6.1.6 Safety shields Be sure all shielding is in place and functioning properly. Replace all damaged or missing shielding immediately. Refer to your parts manual and contact your Kuhn dealer for replacement part ordering. 6. - Putting into service 7N018KUS_A... -
Page 31: Attaching The Safety Tow Chain
The safety tow chain must be replaced if any one link is broken, stretched, or otherwise damaged or deformed. Safety chains are sold separately. Contact your Kuhn dealer to purchase a safety chain for your specific machine. 6. - Putting into service 7N018KUS_A... -
Page 32: Pto Setup
Box Spreader Trailer Type PROPUSH 2000 SERIES PTO setup 6.3.1 Torque disconnect information (Standard with vertical beaters only) Torque disconnect operation The 2044/2054 is equipped with a torque disconnect type PTO in place of a clutch type PTO. The purpose of the torque disconnect is to limit the maximum torque to the machine, the same as a clutch. -
Page 33: Shear Bolt
It is important to have the PTO shaft completely secure on the tractor PTO with the lock collar fully engaged. Kuhn North America, Inc. does not recommend or authorize PTO adapters. Shear bolt size: 2044 - 5/16’’ x 2’’ Grade 5 (540 RPM) 2044 - 5/16’’... -
Page 34: Driveline Attachment
Box Spreader Trailer Type PROPUSH 2000 SERIES 6.3.4 Driveline attachment Before adjusting, maintaining or repairing the machine, perform the safety shutdown procedure. To attach tractor end of the driveline, pull the locking collar (A) back and simultaneously push the driveline onto the spline shaft (B) until the locking device engages. -
Page 35: Spreader Setup
Box Spreader Trailer Type PROPUSH 2000 SERIES Spreader setup 6.4.1 Vertical beater teeth - Vertical beater tooth bolt torque: 135 ft lbs dry Vertical beater tooth bolts should be checked after the first few loads and re-torqued if necessary. Torque should be checked on a monthly basis. -
Page 36: Test Run The Spreader
Box Spreader Trailer Type PROPUSH 2000 SERIES NEVER allow anyone to position themselves over or near the top, or near the discharge area of the spreader while it is running. Doing so can cause serious injury or death. Never put arms or feet inside unit, or discharge opening, nor climb on or in the spreader while it is running. -
Page 37: Instructions For Work
Box Spreader Trailer Type PROPUSH 2000 SERIES 7. Instructions for work Always refer to operating safety instructions precautions before operating spreader. Be sure no one is on, inside, or near the spreader. Be sure that the discharge path is clear of all objects or persons that could be harmed by discharged material. -
Page 38: Operation
Box Spreader Trailer Type PROPUSH 2000 SERIES 7.1.2 Operation 1. With the tractor stopped and the engine throttled down, place the tractor transmission in a gear that will provide the proper ground speed to achieve the desired coverage. NOTE: For best results, steps 2-5 should be done as smoothly and quickly as possible. -
Page 39: Cold Weather Precautions
Box Spreader Trailer Type PROPUSH 2000 SERIES Avoid operating the machine when making sharp turns or crossing gullies or ditches. When working on slopes or inclines, travel uphill downhill. Keep tractor transmission in gear when going downhill. Cold weather precautions Never check or clean the spreader while it is operating. -
Page 40: Horizontal Beater Removal
Box Spreader Trailer Type PROPUSH 2000 SERIES Horizontal beater removal Always perform safety shutdown procedure before servicing, repairing, cleaning, or removing beater assembly. Use a lifting device that can support the weight of the beater assembly. Make sure the chains or... -
Page 41: Vertical Beater Removal
Box Spreader Trailer Type PROPUSH 2000 SERIES Vertical beater removal Always perform safety shutdown procedure before servicing, repairing, cleaning, or removing beater assembly. Use a lifting device that can support the weight of the beater assembly. Make sure the chains or... -
Page 42: Rear Slop Pan
Box Spreader Trailer Type PROPUSH 2000 SERIES Rear slop pan For use with horizontal beaters only: The rear slop pan is designed to catch loose material that may fall from the beater area while the machine is in transit. To empty the pan, pull the release cable at the front of the unit, swinging the pan down. -
Page 43: Optional Equipment
Box Spreader Trailer Type PROPUSH 2000 SERIES 8. Optional equipment Rear slop pan Kit no. 18964816 - 2044 horizontal only Kit no. 18964812 - 2054 horizontal only The rear slop pan is designed to catch loose material that may fall from the beater area while the machine is in transit. -
Page 44: Hardened Tips
Box Spreader Trailer Type PROPUSH 2000 SERIES Hardened tips Kit no. 18967743 Units with vertical beaters have the option of hardened steel beater tips for better durability and use with more abrasive materials. Vertical beater tooth bolt torque should be 135 ft lbs dry. -
Page 45: Thrown Object Shield Extensions
Box Spreader Trailer Type PROPUSH 2000 SERIES Thrown object shield extensions Kit no. 18967455 For use with vertical beaters only - The stone guard side extensions can be added to the sides of the front stone guard to offer further protection to the tractor against thrown debris from the spreader's beater panel. -
Page 46: Inspections And Adjustments
Box Spreader Trailer Type PROPUSH 2000 SERIES 9. Inspections and adjustments General inspection information Always refer to the safety instructions before operating or servicing the machine. Inspect safety shielding: Be sure all shielding is in place and functioning properly. Replace all damaged or missing shielding immediately. - Page 47 Box Spreader Trailer Type PROPUSH 2000 SERIES Endgate swinging debris guard: Check the endgate swinging debris guard for mobility. The rubber curtain of deflectors installed on the inside of the endgate should hang vertically when the endgate is in the raised position. Free the deflectors if they become trapped.
-
Page 48: Wheels And Tires
Box Spreader Trailer Type PROPUSH 2000 SERIES 9.1.1 Wheels and tires Wheel nut torque: - 8 bolt hub with 5/8’’ grade 5 hex lug nut, torque to 170 ft lbs (23 daNm). - 10 bolt hub with 3/4’’ grade 5 hex lug nut, torque to 300 ft lbs (41 daNm). -
Page 49: Beater Inspection
Box Spreader Trailer Type PROPUSH 2000 SERIES 9.1.2 Beater inspection Check horizontal beater teeth for wear. If beater teeth are worn, they can be turned over to use the other side. If both sides are worn, the beater teeth must be replaced. -
Page 50: Maintenance And Storage
Box Spreader Trailer Type PROPUSH 2000 SERIES 10. Maintenance and storage 10.1 Lubrication Always perform safety shutdown procedure before servicing, repairing, or cleaning the machine. It is important that the lubricating guide be carefully followed to avoid damage to the unit. - Page 51 Box Spreader Trailer Type PROPUSH 2000 SERIES Lubrication - Horizontal beaters (Shields removed for illustration purposes only) Oil chain every 8 hours Roller chains Lubricate every 8 hours Endgate and slop pan pivots Lubricate every 8 hours Bearings Lubricate every 8 hours, Repack yearly...
- Page 52 Box Spreader Trailer Type PROPUSH 2000 SERIES Lubrication - Vertical beaters (Shields removed for illustration purposes only) Lubricate every 8 hours Endgate pivots Lubricate every 8 hours Flange bearings Lubricate every 8 hours Overrunning clutch Lubricate every 20 hours...
-
Page 53: Limited Warranty
KUHN dealer and request warranty service within the applicable warranty period; (2) present evidence of the warranty start date with valid proof of purchase; and (3) make the Equipment available to the authorized KUHN dealer within a reasonable time for repair. - Page 54 (including, but not limited to, a tractor or truck), loss of earnings due to Equipment down time, or damage to Equipment while in transit to or from a KUHN facility or authorized KUHN dealer; (7) defects due in part or in whole from specifications, instructions, designs or drawings provided by or for Purchaser;...
- Page 56 KUHN S.A. - B.P. 50060 - F - 67706 SAVERNE CEDEX (FRANCE) KUHN-AUDUREAU SAS - B.P. 19 - F - 85260 LA COPECHAGNIERE (FRANCE) KUHN-BLANCHARD SAS - 24, route de Nantes - F - 44680 CHEMERE (FRANCE) KUHN-HUARD SAS - B.P. 49 - F - 44142 CHATEAUBRIANT CEDEX (FRANCE) KUHN-GELDROP B.V.
