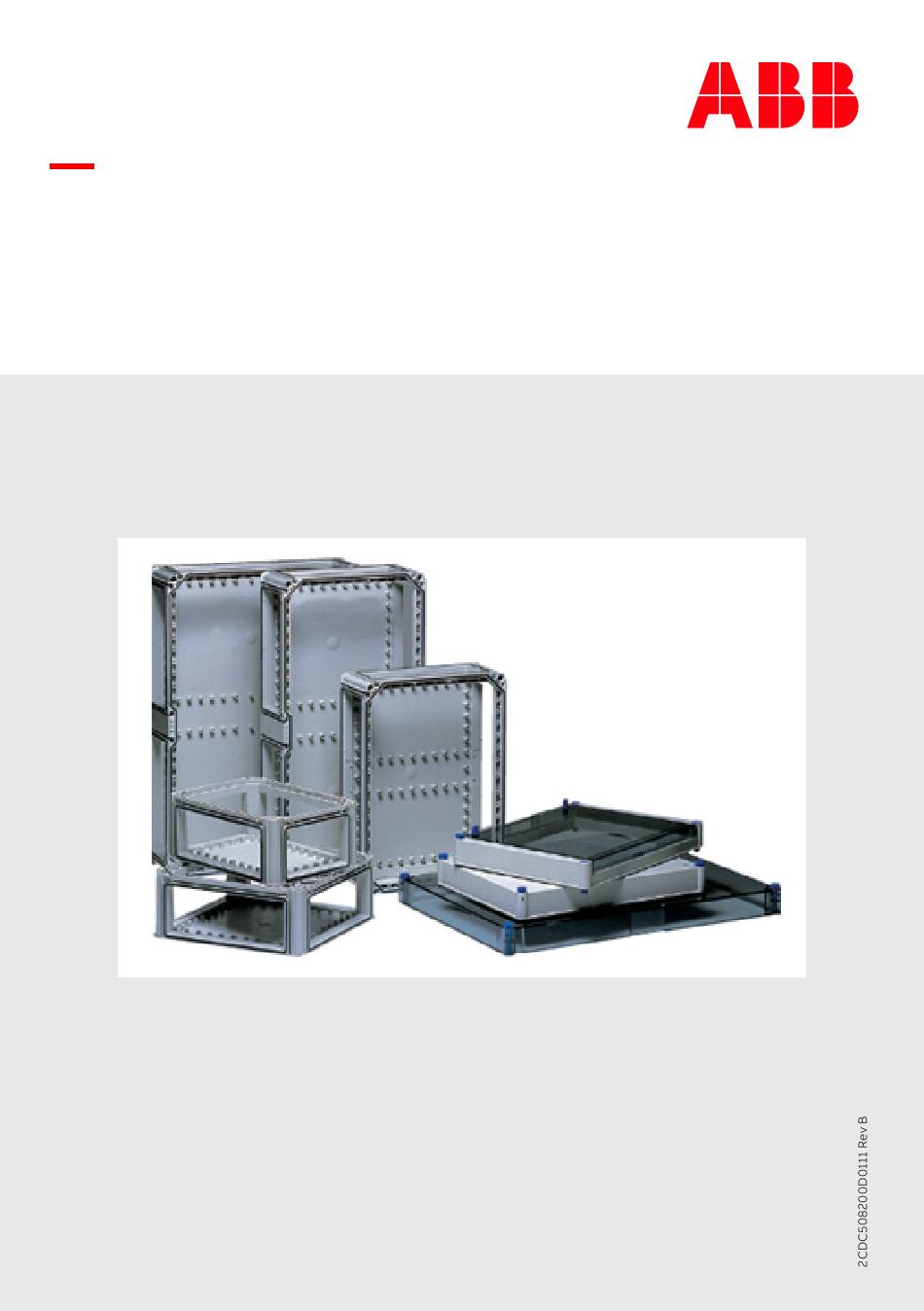

- Page 1 PRODUCT MANUAL VMS - LV modular system XLP-BB...
-
Page 2: Table Of Contents
Contents 1 Icons............................ 3 2 Material..........................4 2.1 Material - included..........................4 2.2 Material - not included........................4 2.2.1 Accessories..........................4 3 Assembly steps......................... 5 Additional drawings and instructions can be found in the ABB Library:... -
Page 3: Icons
1 Icons Icon Description Warning / Caution Note Material - included Material - not included Tools Tightening torque (Nm) -
Page 4: Material
2 Material 2.1 Material - included Box with busbar support and IP cover plate SKU-codes Description 4TBV853214C0100 VMS 32H w. 60mm BB 250/400A for DIN00 4TBV853221C0100 VMS 33 w. 60mm BB 250/400A for DIN00 /D 4TBV853222C0100 VMS 63H w. 60mm BB 250/400A for DIN00 /D 4TBV853223C0100 VMS 63V w. -
Page 5: Assembly Steps
3 Assembly steps Material: overview 1 VMS base 2 Cover 3 Cover screws (4) 4 Busbars 5 Front frame or Trim frame 6 Bus-mounted fuse base or Fuse switch disconnector(s) 7 Reserve section cover... - Page 6 Remove IP cover plate and then the top part of the busbar supports 1 Cover plate screws (4x) 2 IP cover plate 3 Busbar supports (2x) Break "walls" and place blocks (where necessary for busbars with thickness of 5 Busbar support "walls" Busbar blocks...
- Page 7 Place busbars and remount the busbar supports 1 Busbars 2 Busbar supports...
- Page 8 Mounting Bus-mounted fuse base on busbars (A) or mounting Fuse Switch Disconnector on busbars (B) 1 Bus-mounted fuse base 2 Busbars If copper width of PE or N =12 mm, use the following configuration: If copper width of PE or N >12 mm, use the following configuration: (remove side panels and break small walls to obtain a 10 mm opening.)
- Page 9 Insert Frames and Cover plate Insert the Trim frame VMS in the IP cover plate and re- install the assembly onto the VMS box. Check first needed width of trim frame VMS and break off where necessary. 1 Trim Frame 2 IP cover plate 3 Cover plate screws (4x) First place front frame Xx XLP00...
- Page 10 Fastening VMS box cover 1. Snap cover screws each time in the four corners. 2. Fit cover on box (one turn on screws, max. 2.5Nm). 3. If necessary, stick total isolation symbol on cover. Installation complete...
- Page 11 ABB Industrial Solutions (Belgium) bvba Nieuwevaart 51 B - 9000 Gent Belgium https://new.abb.com info@abb.com Tel.: +32 926 527 77 Copyright® 2022 ABB All rights reserved...
