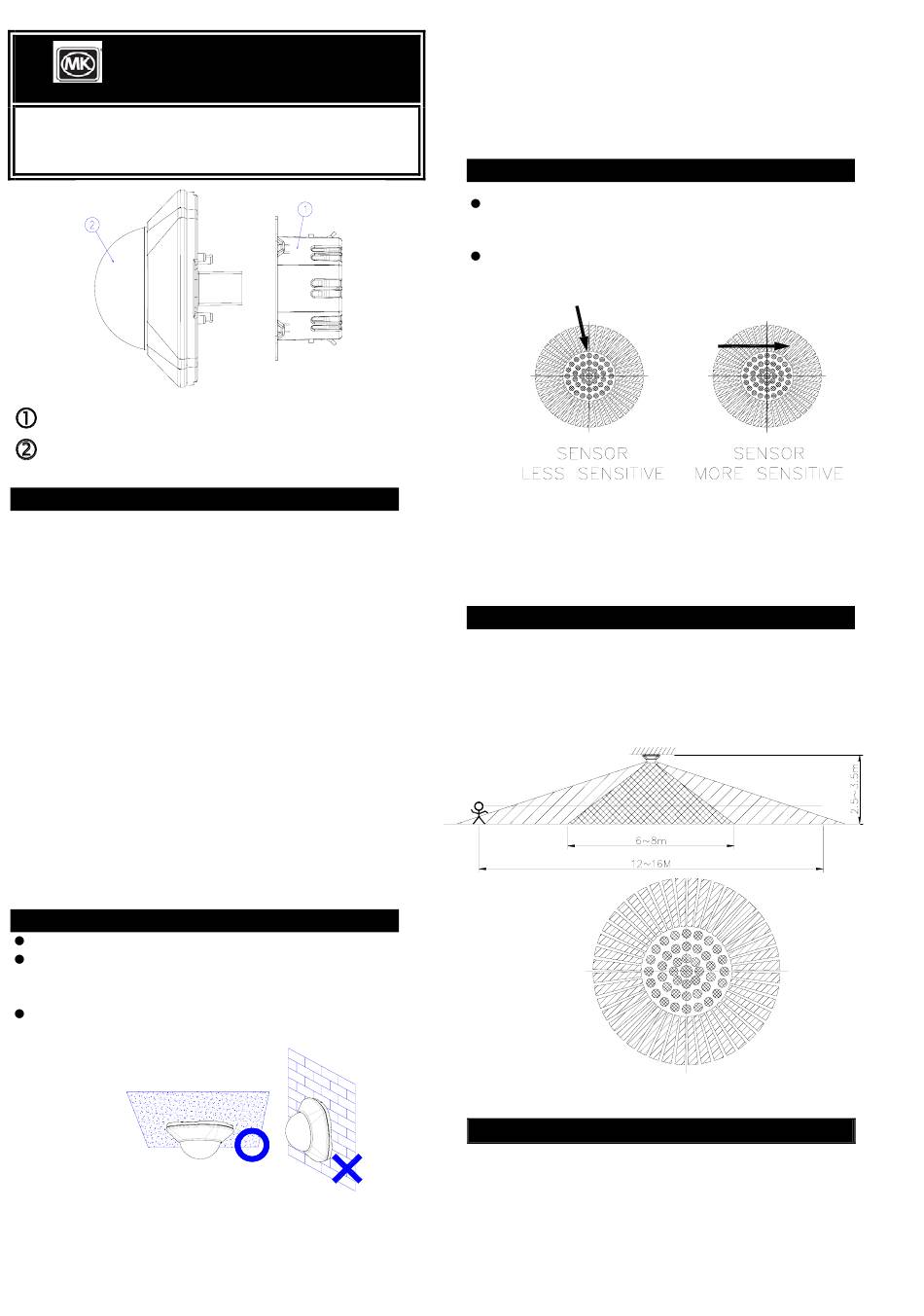

MK Electric K5025 Quick Start Manual

K5025
360° MICRO MOTION SENSOR
WITH DUAL OUTPUTS
Power Circuit Part
PIR Motion Sensor
INTRODUCTION
K5025 Micro Motion Sensor is a fully automatic indoor
controller capable of controlling up to 2000W lightings /house
appliances or 480W fluorescent lightings. Not only is it a
lighting controller, but also has the capability of detecting
slight motion within a radius of 3m around the sensor. It will
keep the connected light fixture continuously on even when
you are on the phone with slight motion being detected.
It also incorporates lux memory feature which means the
sensor is able to record and memorize the lux level when the
internal connected light fixture is turned on by the Micro
Motion Sensor. However, once the natural light lux level is
higher than that of the internal artificial light even if the
movement still exists, the sensor will switch off the internal
light fixture thus saving the energy.
Simply taking full advantage of its versatile application, you
will enjoy the convenience of its thoughtful design.
Note: Read this entire manual before you start to install
the system.
SAFETY PRECAUTIONS
Be sure to switch off power source before installing.
Make sure that the power wiring comes from circuit with
an external 16A miniature circuit breaker for the short
circuit protection or a suitable fuse.
The unit is designed to be affixed on the ceiling.
(FIGURE 1)
FIGURE 1
•
Installation must be performed by skilled technicians
who are informed about the standards and technical
requirements of the appliance and its proper
installation. Please keep min. distance of 6 mm
between live parts and accessible surface after
installation.
CHOOSING A MOUNTING LOCATION
Avoid aiming the motion sensor at heating vents, air
conditioners or objects which may change temperature
rapidly.
Prior to mounting the light fixture, remember to position
the motion sensor so that a moving object cuts "across"
its beams, not directly towards them." (FIGURE 2)
FIGURE 2
Note: Micro motion detection can be made within
a radius of 3m around the sensor; regular motion
detection can be made within a radius of 6m around the
sensor.
INSTALLATION
A drill and a screwdriver are needed for installation. Select
a location for the unit based on the coverage angles shown in
FIGURE 3.
WIRING INSTRUCTION
(1) Switch off the power source or wall switch.
(2) Using a flat blade screwdriver to detach the PIR
FIGURE 3
1
