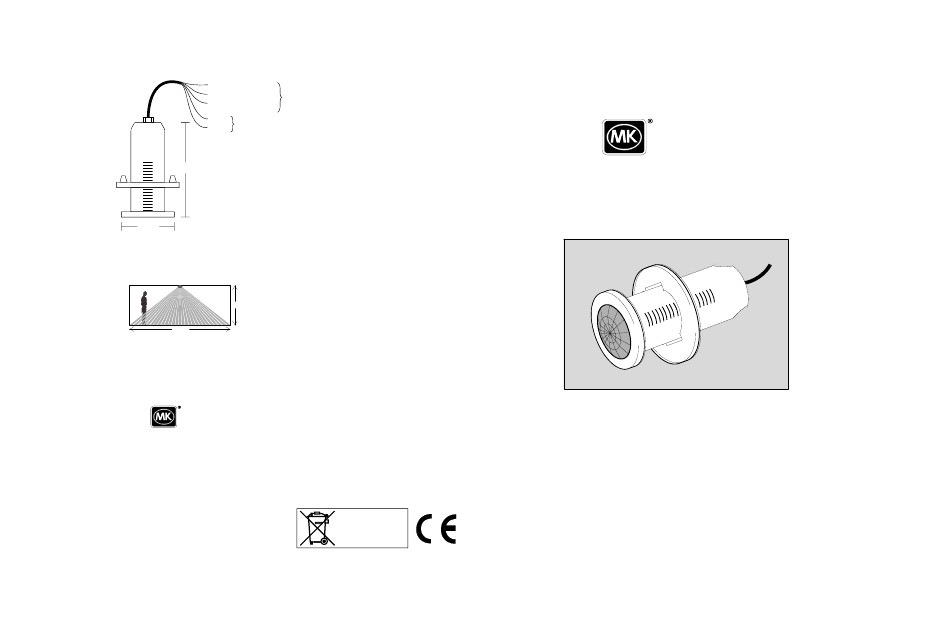

MK Electric K4019 Installation And Commissioning Instructions

Electrical Connections

K4019
Brown - Live
Blue - Neutral
Red - OneSwitch input
Orange Polarity-free digital output.
White Connection to ballast only.
Do not connect to other detectors.
115mm
65mm

Technical Data

OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
POWER CONSUMPTION: <10W
RECOMMENDED MAX MOUNTING HEIGHT: 3.0m max
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.4m
6.0m
DEPTH REQUIRED BEHIND CEILING: 125mm
WEIGHT: 70g excluding cable
COLOUR: White
MATERIAL: Flame retardant ABS
IP RATING: 4X
OUTPUT: 2-wire digital polarity free (max extended cable length: 12m)
OUTPUT CAPACITY: Nine ballasts
MK Electric
The Arnold Centre, Paycocke Road, Basildon,
Essex, SS14 3EA. UK
Technical Help
Tel: +44 (0)1268 563720
Fax: +44 (0)1268 563064
email: mktechnical@honeywell.com
Customer Service
Tel: +44 (0)1268 563000
Fax: 01268 563404
Fax: +44 (0)1268 563365 (International)
email: mkorderenquiries@honeywell.com
web site: www.mkelectric.co.uk
______________________________________________________
Novar ED&S Ltd (A Honeywell Company),
Arlington Business Park, Bracknell, Berkshire, RG12 1EB
All marks in this document identified with a R or TM symbol
adjacent to the mark are Trade Marks of Novar ED&S Ltd.
230V 50Hz SUPPLY
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
50846PL Ed. 1
SENSORS

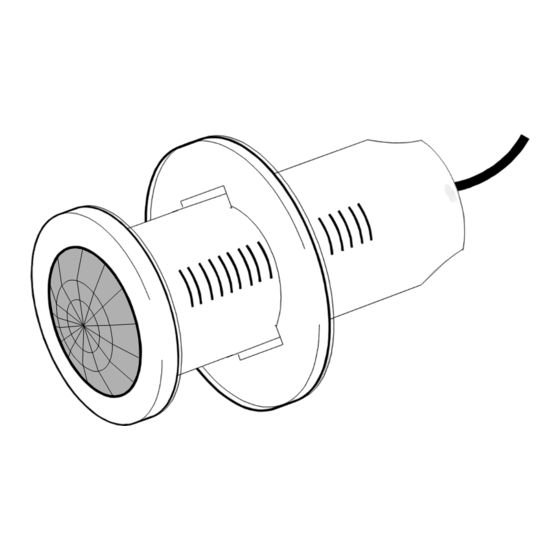

Superior PIR with Photocell for DSI ballasts
Slim Flush
Installation and Commissioning
Instructions
Note: K4053 required for commissioning
K4019
