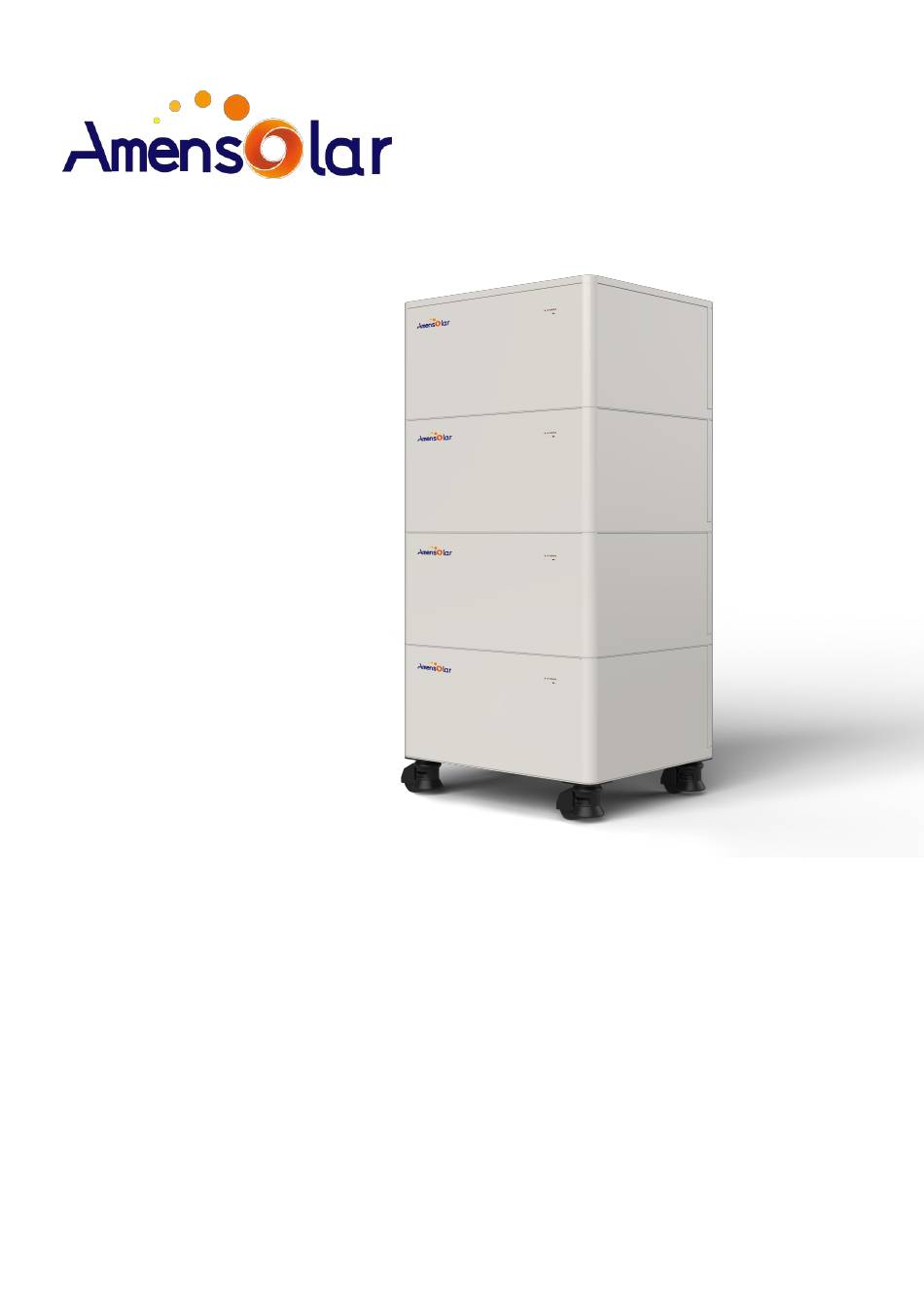

- Page 1 AMENSOLAR AM12000 User Manual 2022-12 -30 Foreword...
- Page 2 • All information in this document is the property of the equipment manufacturer. No part of this document may be reproduced in any commercial manner. Internal use is permitted. • The equipment manufacturer makes no warranties or guarantees, express or implied, with respect to this document or any equipment and/or software that may be described in this document, including but not limited to any implied warranties of utility, commerciality or applicability for any particular purpose.
-
Page 3: Table Of Contents
01 Safety Notes....................1 02 Product Introduction..................3 2.1 Product Description....................3 2.2 Symbol Description....................3 03 Battery Introduction..................4 3.1 Components Introduction..................4 3.2 Dimension introduction.....................5 04 Storage and Packaging.................6 4.1 Storage Environment....................6 4.2 Packing List......................6 4.2.1 Standard configuration list....................6 4.2.2 List of options........................6 05 System Installation..................8 5.1 InstallationEnvironment.....................8 5.2 Installation Space Requirements................8 5.2.1 Floor installation space requirements..................8... -
Page 4: Safety Notes
01 Safety Notes • Before operating the equipment, turn off the power to avoid hazards, and strictly observe all safety precautions in this manual and safety signs on the equipment. • Only professionals are allowed to install and operate the equipment. Professionals shall be familiar with local regulations and standards, electrical system, professional training and relevant knowledge of the product. - Page 5 There is a risk of battery explosion when the ambient temperature exceeds 150 ° C. • • When installing and maintaining heavy equipment, use appropriate tools and take protective measures. Improper operation may cause personal injury. • Use of cables in high temperature environment may cause aging and breakage of insulation layer, and the distance between the cable and the heat generating device or the periphery of heat source area shall be at least 30 mm.
-
Page 6: Product Introduction
02 Product Introduction 2.1 Product Description • This document mainly describes the product introduction, application scenarios, installation, commissioning, maintenance and technical parameters of LW Home L low voltage series energy storage battery system (hereinafter referred to as battery system). The battery system supports up to 16 batteries in parallel. •... -
Page 7: Battery Introduction
03 Battery Introduction 3.1 Components Introduction 4 5 6 7 Battery port definition Serial Components Description number Status indicator Capacity display, operation status display Battery negative Battery negative power transfer Battery positive Battery positive power transfer CAN communication port Communication transmission RS485 communication port 1 Communication transmission RS485 communication port 2... -
Page 8: Dimension Introduction
3.2 Dimension Introduction Rear view Front view Top view... -
Page 9: Storage And Packaging
04 Storage and Packaging 4.1 Storage Environment If the equipment is not immediately installed and used, please confirm that the storage environment meets the following conditions: • The equipment shall be packed in a packing box, and the packing box shall be sealed after the desiccant is placed in it. -
Page 10: List Of Options
4.2.2 List of options Inverter Top cover Positive inverter Negative inverter connection line communication line Mobile bottom tray connection line... -
Page 11: System Installation
05 System Installation 5.1 Installation Environment • The battery system weighs about 85±2 kg, and it must be installed on the ground with sufficient load-bearing capacity and flatness; If the ground does not have enough supporting force and flatness, other means must be used. •... -
Page 12: System Installation
≥200mm 5.3 System Installation If you need to use batteries in parallel, check and select batteries with similar production date and same gear number for use together. 5.3.1 Package removal Open the box and take out the accessories and batteries. Foam Wooden Battery pack... -
Page 13: Floor Installation
5.3.2 Floor installation Check that the ground is flat and not inclined, and make sure that there will be no depressions on the ground after the battery is installed. 1. In static state, adjust the expansion bolt of Foot Master casters on the mobile bottom tray to make the nylon wheel off the ground and ensure that the mobile bottom tray will not move. -
Page 14: System Wiring
5.3.3 System wiring Battery wiring diagram Inverter Positive power line ● Negative power line Communication line ● Ground wire ● ● Ground wire connection • When installing the equipment, install the protective ground wire first; When removing the equipment, remove the protective ground wire finally. - Page 15 Power line connection • When using a single unit, connect any one of the two power interfaces, and put a protective cover on the other power interface. • When using multiple units in parallel, connect the positive power interface to the positive one and the negative power interface to the negative one between batteries, and put a protective cover on the power interface reserved on the last battery.
-
Page 16: System Operation
06 System Operation 6.1 Check Before Power-on When powering on the battery system, be sure to check the following to prevent system damage. Check item The equipment is installed firmly, the installation position is convenient for operation and maintenance, the installation space is convenient for ventilation and heat dissipation, and the installation environment is clean and tidy. - Page 17 SOC indicator System Operation status status Shutdown Sleep Standby Normal Flash 1 SOC capacity indication. The maximum Normal LED flashes 2. Overcurrent Flash SOC capacity indication. The maximum alarm LED flashes 2. Overvoltage Charging Flash 1 protection Temperature protection, Flash Flash 1 overcurrent protection...
-
Page 18: Battery Parameters
Short circuit current ＞500 A @ 100 ms Communication mode CAN&RS485 Weight (kg) 85±2 Dimensions (L * W * H 532 * 443 * 255 (1*AM12000) Operating temperature Charging: 0+50/discharging: -10+50 range (℃) Relative humidity (%) 0-95% Maximum working 2000... -
Page 19: Maintenance
08 Maintenance Maintenance item Maintenance interval If the battery is not put into use, fully charge the battery and Once every 3 months discharge it to 2550%. Check whether the wall mount is loose, and tighten the Once every 6 months corresponding position if any. -
Page 20: Common Faults And Troubleshooting
09 Common Faults and Troubleshooting Common Phenomenon Troubleshooting fault Undervoltage protection may occur. Please charge timely. The indicators are After the mains supply is powered off for 48 h, the BMS sleeps. Press off. RESET button or start charging to wake up the BMS so as to recover. Temperature protection may occur. - Page 21 Amensolar Ess Co., Ltd Website: www.amensolar.com.cn Address:NO.7 Zhuyuan Road, SND, Suzhou Jiangsu Province, China Tel: +86 512 66327066 E-mail: sales@amensolar.com...
