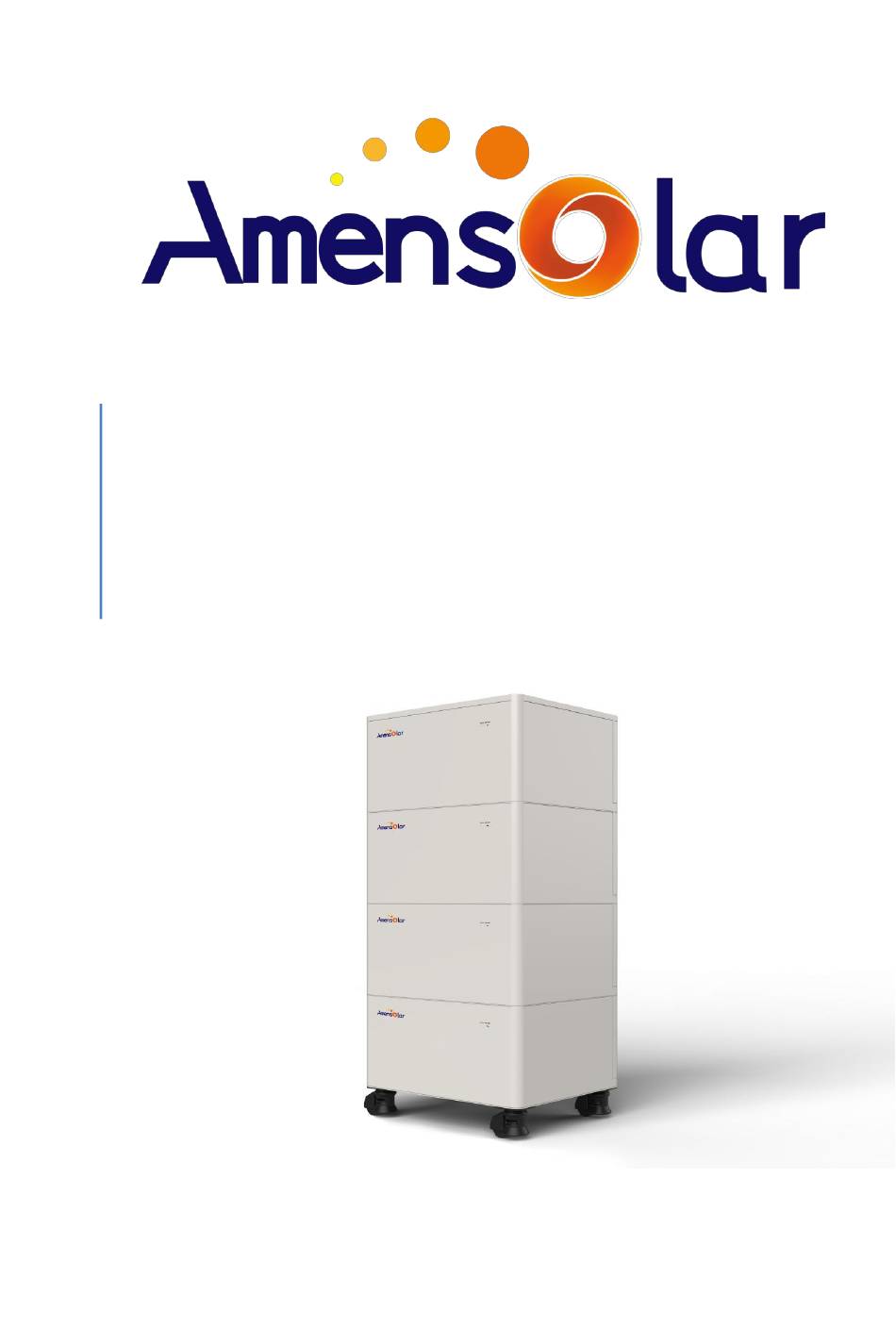

  • Page 1 User Manual of Storage Lithium Battery AM12000...

  • Page 2: Table Of Contents

    Amensolar Lithium Battery AM12000 User Manual Manual Instruction The Energy Storage Batteries System provides the energy storage for PV users and backup power support for the important electrical equipment. The battery system can store excessive power generated by PV system at daytime, and can utilize the stored energy (if necessary) to...

  • Page 3: Security Disclaimer

    2. Precautions for Safe Use We feel quite thankful that you choose AMENSOLAR products. In order to enable you to use and maintain it in a better way, please kind read this user manual carefully before use.
  • Page 4 Amensolar Lithium Battery AM12000 User Manual Please lift and put it down gently to avoid hurting feet or damage to product during  transportation and installation. Please keep battery away from the flammable objects and heat sources.  Please don’t drop any sundries into battery during installation. Otherwise, it may cause ...
  • Page 5 Amensolar Lithium Battery AM12000 User Manual If the battery pack leaks electrolyte, avoid contact with the leaking liquid or gas. Electrolyte is corrosive and contact may cause skin irritation and chemical burns. If one is exposed to the leaked substance, do these actions: Inhalation: Evacuate the contaminated area, and seek medical attention immediately.

  • Page 6: Product Introduction

    Amensolar Lithium Battery AM12000 User Manual 3. Product Introduction AMENSOLAR AM12000 battery is composed of lithium iron phosphate cells in series. The built-in BMS battery management system can manage and monitor battery information, including voltage, current and temperature. In addition, the BMS can also balance the charge and discharge of the battery to extend the cycle life.
  • Page 7 Amensolar Lithium Battery AM12000 User Manual Configuring multiple communication interfaces: RS-485, CAN; Knowing battery working status at any time through the master computer. Multiple cascades: Obtaining address automatically; Non-human operation. 3.4 Leading Advantages in Product Supporting charge and discharge by large current, charging and discharging modular design, Small volume, Light weight, adopting multi-level energy consumption management, Operation and wiring on front panel, Easy to installation and maintenance;...

  • Page 8: Specification

    Amensolar Lithium Battery AM12000 User Manual 4. Specification 4.1 Battery Specification ITEM AM12000 Battery Type LiFePo4 Mount Type Stack Mounted Nominal Voltage (V) 51.2 Capacity (Ah) Nominal Energy (KWh) 11.78 Operating Voltage (V) 43.2~57.6 Max Charge Current (A) Charging Current (A)
  • Page 9 Amensolar Lithium Battery AM12000 User Manual 4.2 Product Size Rear view Front view 4.3 Components introduction...
  • Page 10 Amensolar Lithium Battery AM12000 User Manual Name Description Status indicator Capacity display, operation status display Battery negative Battery negative power transfer Battery positive Battery positive power transfer CAN communication port Communication transmission RS485 communication port 1 Communication transmission RS485 communication port 2...
  • Page 11 Amensolar Lithium Battery AM12000 User Manual 4.4.4 Other Protection Function Short circuit protection System starts short circuit protection if it occurs to short circuit when battery starts working from a shutdown state. 4.5 Running Environment Running Environment Condition Working temperature 0℃...

  • Page 12: Installation

    Amensolar Lithium Battery AM12000 User Manual 5. Installation 5.1 Installation Location Make sure that the installation location meets the following conditions: The building is designed to withstand earthquakes, and the floor is flat and level.  Far away from the sea to avoid salt water and humidity.
  • Page 13 Amensolar Lithium Battery AM12000 User Manual 5.4 Installation Materials Following installation materials should be prepared by installers. Power cable  Data cable  Earth cable  Ground wire  Bipolar external isolator, when two or more battery systems in parallel, each of them shall ...
  • Page 14 Amensolar Lithium Battery AM12000 User Manual 5.7 Technical Preparation Electrical interface setting Security examination Please kind do the following examination if Fire-fighting equipment should be prepared the battery connects with the user’s device near the battery, like, the portable dry powder directly: fire extinguisher.
  • Page 15 Amensolar Lithium Battery AM12000 User Manual 5.11 Installation and wiring 5.11.1 Device installation Please take reference of the way recommended by manual to place the product. All devices must be firm during installation. Please arrange the stacked number of devices flexibly as actual needs.
  • Page 16 Amensolar Lithium Battery AM12000 User Manual Install the ground wire, high voltage parallel wire and communication line on the battery in  sequence. 5.11.3 Ground wire connection Please unscrew the screw at the ground hole on front panel, install the ground terminal on the screw and tighten it with a screwdriver.
  • Page 17 Amensolar Lithium Battery AM12000 User Manual 5.11.5 Cables connection A single battery: please connect the positive electrode of battery with the DC positive electrode of inverter by a red cable, and connect the negative electrode of battery with the DC negative electrode of inverter with a black cable.
  • Page 18 Amensolar Lithium Battery AM12000 User Manual 5.11.6 Communication wire connection A single battery: connect one end of the communication line to the CAN communication interface, and the other end to the inverter. Multiple batteries: the host and the slave batteries communicate in cascade mode, one of them is the host, and the rest are slave batteries.
  • Page 19 Amensolar Lithium Battery AM12000 User Manual SOC indicator System Operation status status Shutdown Sleep Standby Normal Flash 1 SOC capacity indication. The maximum LED Normal flashes 2 . Over-current SOC capacity indication. The maximum LED Flash 2 flashes 2 .

  • Page 20: Communication Settings

    Amensolar Lithium Battery AM12000 User Manual 6. Communication Settings The product is designed with communication interfaces like the RS485 and CAN, and the battery status can be easily obtained or the internal parameters can be modified through the master computer.

  • Page 21: Abnormal Conditions And Fault Handling

    Amensolar Lithium Battery AM12000 User Manual 7. Abnormal Conditions and Fault Handling 7.1 Fault and abnormal phenomenon handling The battery is designed with indicators on the upper panel, and has perfect protection Common Troubleshooting Phenomenon fault Undervoltage protection may occur. Please charge timely.

  • Page 22: Address Select Of Master And Slave Battery(-Ies) Connection

    Amensolar Lithium Battery AM12000 User Manual Select 8. Address of Master and Slave Battery(-ies) Connection For details, please refer to the attachment. 9. Operation 9.1 Charging precautions 1) Charging current The charging current must not exceed the maximum allowable charging current specified in this specification.

  • Page 23: Maintenance And Recycling

    Amensolar Lithium Battery AM12000 User Manual 3) It is strictly prohibited to immerse the battery in seawater or water. When not in use, it should be placed in a cool and dry environment; 4) Do not place the battery near high temperature sources, such as fire, heater, etc.;...
  • Page 24 Amensolar Lithium Battery AM12000 User Manual normally. If the problem still cannot be solved, please contact with the dealer or the manufacturer as soon as possible. Don’t disassemble parts by yourself. 10.5 Battery Recycling About the information on proper disposal of old battery, please contact with your local recycling center or hazardous waste disposal center.

  • Page 25: Legal Statement

    Otherwise, infringement must be investigated. The user manual doesn’t grant readers the permission and rights to use any marks showing in the manual in any method without the prior written agreement of AMENSOLAR ESS CO., LTD. or owner of manufacturer’s trademark or trade name.
