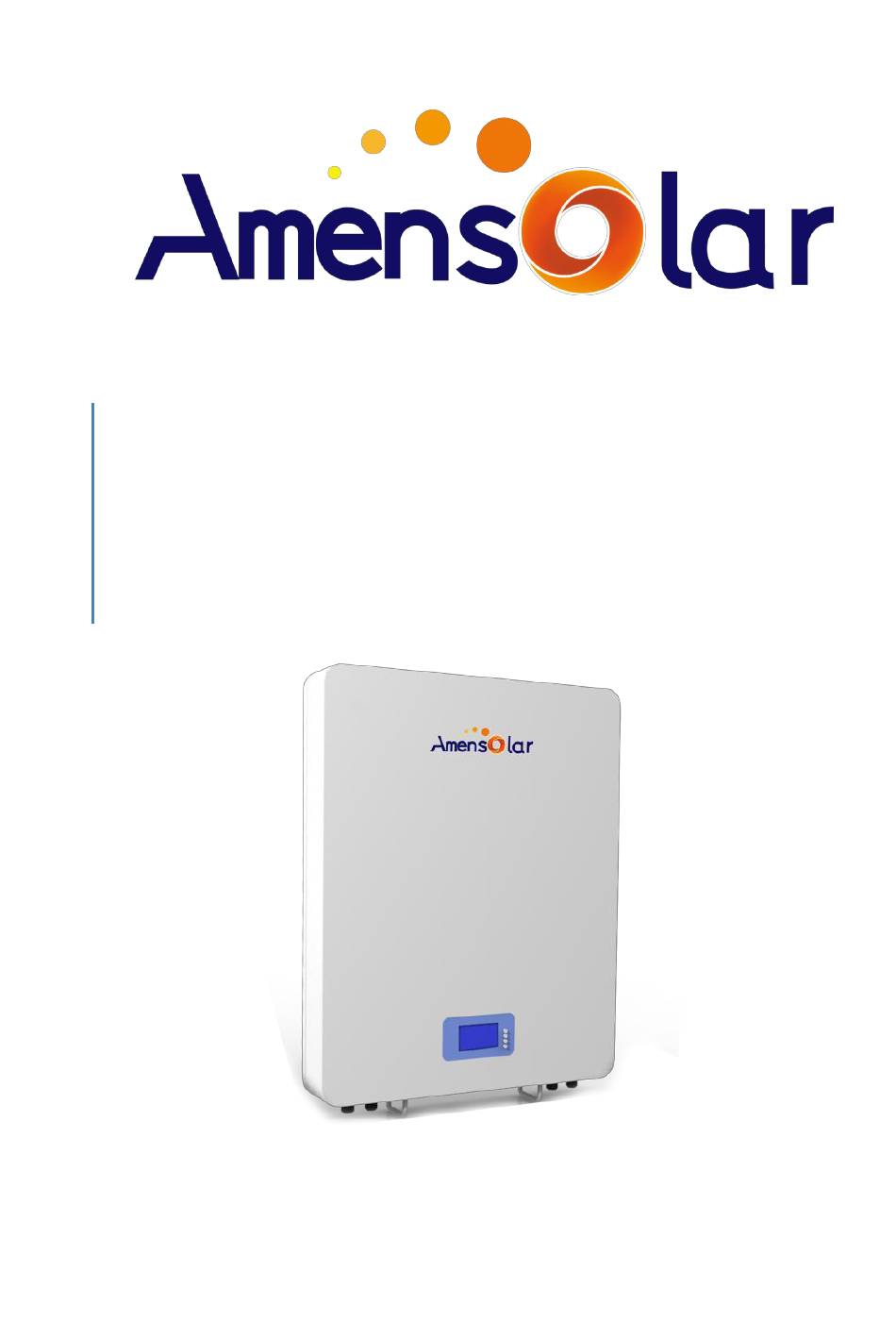

- Page 1 User Manual of Storage Lithium Battery AW5120 (Certificate Model: YNBB16S100KX-L)
-
Page 2: Table Of Contents
Amensolar Lithium Battery AW5120 User Manual Manual Instruction This user manual is the instructions for using 2U wall-mounted battery modules. Please read this manual carefully before installing the battery, and follow the instructions during the installation. For any confusion, please contact the manufacturer immediately for advice and clarification. -
Page 3: Safety Disclaimer
2. Product Introduction AMENSOLAR AW5120, a 2U wall-mounted battery module, is one of the new energy storage products that can be used to support reliable power for a variety of equipment and systems. The product is especially suitable for the application scenarios of high power, limited installation space, limited bearing capacity and long cycle life. - Page 4 Amensolar Lithium Battery AW5120 User Manual Built-in 4-channel temperature acquisition; Support high and low temperature over-charge and over-discharge protection; Support the battery balancing function; Support for SOC calculation and calibration; Support for two-level over-current protection; ...
- Page 5 Amensolar Lithium Battery AW5120 User Manual Battery Module Size Installation Bracket Size...
-
Page 6: Specification
Amensolar Lithium Battery AW5120 User Manual 3. Specification ITEM A5120 Certificate Model YNBB16S100KX-L Battery Type LiFePo4 Mount Type Wall Mounted Rated Voltage (V) 51.2 Operating Voltage Range (V) 44.8～57.6 Floating Charge Voltage (V) 55±1 Capacity (Ah) Energy (KWh) 5.12 Internal Resistance ≤50mΩ... -
Page 7: Interface
Amensolar Lithium Battery AW5120 User Manual 4. Interface 4.1 Interface definition Ground wire hole RS485 Interface ❶ ❾ Positive Terminal Power on/off ❷ ❿ Power Indicator Negative Terminal ❸ ⓫ Status Indicator Reset ❹ ⓬ Dip Switch Alarm Indicator ❺... - Page 8 Amensolar Lithium Battery AW5120 User Manual Power Indicator Always on after power on, and off after power is turned off. Ground wire hole Battery module grounding. Status Indicator Showing the power is on, the BMS is on / off Alarm Indicator Battery fault indicator light, red indicates fault, green indicates normal.
- Page 9 Amensolar Lithium Battery AW5120 User Manual CAN- -8P8C vertical RJ 45 socket RS485- -8P8C vertical RJ 45 socket RJ45 pin Definition RJ45 pin Definition 9、16 RS485-B1 1、2、3、6、8 10、15 RS485-A 1 CANH 11、14 CAN L 12、13 RS 485 / CAN Interface Definition...
- Page 10 Amensolar Lithium Battery AW5120 User Manual When the BMS is in sleep status, press the button (3~6s) then release, the BMS will be activated, and the LED indicator will be continuously lit from "RUN" for 0.5 seconds. When the BMS is active, press the button (3~6s) then release, the BMS will sleep and the LED indicator will light from the lowest battery power light for 0.5 seconds.
- Page 11 Amensolar Lithium Battery AW5120 User Manual Alarm FLASH3 FLASH3 Low voltage OFF OFF OFF OFF OFF No Discharging protection Temperature, over-current, OFF OFF OFF OFF OFF No Discharging short-circuit protection FAILURE OFF OFF OFF OFF OFF No Charging/Discharging 4.3 BMS SOC Display...
-
Page 12: Battery Module Safety Processing Guide
Amensolar Lithium Battery AW5120 User Manual 5. Battery Module Safety Processing Guide 5.1 System topology 5.2 Label 5.3 Tool To install the battery pack, the following tools may be required: Phillips screwdriver Cable pressurizer voltmeter Note: Use appropriate insulation tools to prevent accidental electric shock or short circuit. If not available, cover the entire exposed metal surface of the available tool with insulating tape, except for the tips. -
Page 13: Installation
Amensolar Lithium Battery AW5120 User Manual 5.4 Safety wearing It is recommended to wear the following safety equipment when handling the battery module. insulating gloves eye protector safety shoe 5.5 Accessories Item Specifications Quantity Expansion screw M8*60mm Connector screw M8*10mm... - Page 14 Amensolar Lithium Battery AW5120 User Manual Make sure that the installation location meets the following conditions: The area is completely waterproof. The floor is flat. No flammable and explosive materials. The ambient temperature is in the range of 0℃ to 50℃.
- Page 15 Amensolar Lithium Battery AW5120 User Manual Place the wall-mounted rack on the M8*60 expansion screw and fix it Combine the buckle pendant on the wall-mounted battery module with the card slot...
- Page 16 Amensolar Lithium Battery AW5120 User Manual B. Parallel installation 1. Set 6 points on the wall, use the φ10*90 shock drill to perform punching operations 2. Put the expansion screws of M8*60 into the drilled hole 3. Place the wall-mounted rack on the M8*60 expansion screw and fix it 4.
- Page 17 Amensolar Lithium Battery AW5120 User Manual address Dip Switch Address Note: Only the master battery module can communicate with the slave battery modules. Master Slave 1 Slave 2 6.4.3 Connection in parallel mode Normal parallel mode, as shown in the picture Note: If all the battery LED lights come on and then go off, this means that the battery system is good and works properly.
-
Page 18: Safety Precautions
Amensolar Lithium Battery AW5120 User Manual 7. Safety precautions Warning 7.1 Notes required before installation 7.1.1 After opening the carton, please check the product and packing list first. If the product is damaged or missing parts, please contact the local retailer;... -
Page 19: Abnormal Conditions And Fault Handling
Amensolar Lithium Battery AW5120 User Manual 5) All battery terminals must be disconnected for maintenance; 6) If any abnormal, please contact the supplier within 24 hours. 7) The direct or indirect losses caused by the above items shall not be covered by the warranty. -
Page 20: Emergency
Amensolar Lithium Battery AW5120 User Manual 9. Emergency 9.1 Battery leakage If the battery has leaked the electrolyte, avoid contact with the leaked liquid or gas. If exposed with this substances, the following measures should be taken immediately: Inhalation: evacuate the contaminated area and seek medical care. -
Page 21: Legal Statement
Otherwise, infringement must be investigated. The user manual doesn’t grant readers the permission and rights to use any marks showing in the manual in any method without the prior written agreement of AMENSOLAR ESS CO., LTD. or owner of manufacturer’s trademark or trade name.
