Shop Presses
Operating Instructions & Parts Manual
Model Number
HW93400 thru HW93404
HW93610

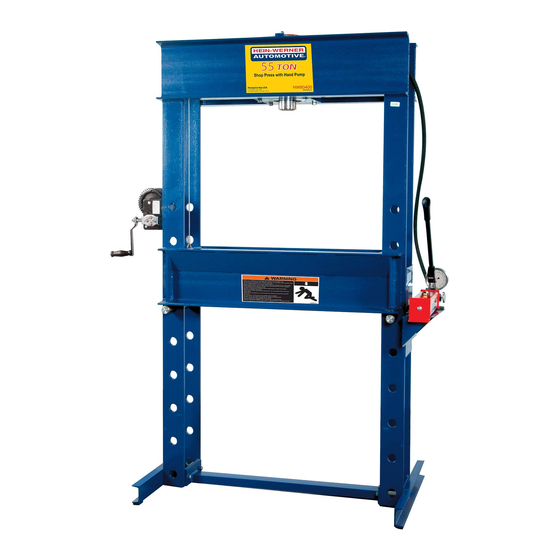

Model HW93400, HW93401, HW93402 & HW93404
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product
HW93400-M0 rev 09/07
Capacity
55 Ton
100 Ton
Model HW93610
10939 N. Pomona Ave. Kansas City, MO 64153
customerservices@heinwerner-automotive.com
SFA Companies
Advertisement
Table of Contents
Related Manuals for HEIN-WERNER AUTOMOTIVE HW93400
Summary of Contents for HEIN-WERNER AUTOMOTIVE HW93400
- Page 1 100 Ton Model HW93610 Model HW93400, HW93401, HW93402 & HW93404 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
-
Page 2: Two Year Limited Warranty
TWO YEAR LIMITED WARRANTY For a period of two (2) years from date of purchase, SFA Companies will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy. -
Page 3: Specifications
Press Size Model Working Working Capacity Stroke Model Model Type Width (H x W x L) space Space HW93400 P2001 Manual HW93401 6 " H5506 PA2000 HW93402 55 Ton PE0501T Electric 13 3/4" 79 1/8" x 56" x 30" 14"... -
Page 4: Before Use
Model HW93400 Model HW93403 Model HW93401 Figure 1: Model HW93400 thru HW93404 Components Figure 2: Model HW93610 Components BEFORE USE 1. Inspect before each use. Do not use if bent, broken or cracked components are noted. Check for and tighten any loose assemblies. -
Page 5: Operation
4. Attach base sections to upright channels with 4 bolts and nuts. 5. Attach lower cross member to upright channels with 4 bolts and nuts. 6. For Model HW93400 thru HW93404 only, adjust the pump bracket to desire height and secure with bolts, nuts & washers provided. -
Page 6: Troubleshooting
TROUBLESHOOTING A system failure may or may not be the result of a pump malfunction. The following information is intended to be used as an aid in determining if a problem exist. Symptom Possible Causes Corrective Action Motor will not start (for Model •... - Page 7 Replacement Parts List for 55 Ton Model No. HW93400, HW93401, HW93402, HW93403 & HW93404 Item Part No. for Model: Description HW93400 HW93401 HW93402 HW93403 HW93404 400-002-001 400-002-001-B Frame with Winch & Pump Bracket 400-002-010 Frame only 400-002-002 Bed Frame 400-002-003...
- Page 8 Replacement Parts List for 100 Ton Press Model HW93610 Item Part# Description 610-002-001 Press Frame with Winch Assembly 610-002-010 Press Frame only 610-002-002 Bed Frame 610-002-003 Support Pin 610-002-004 Base 610-002-005 Lower Cross Member 610-002-006 Winch 610-002-007 Pulley 610-002-008 Cable 610-002-009 Ram Adapter Plate H10010...
