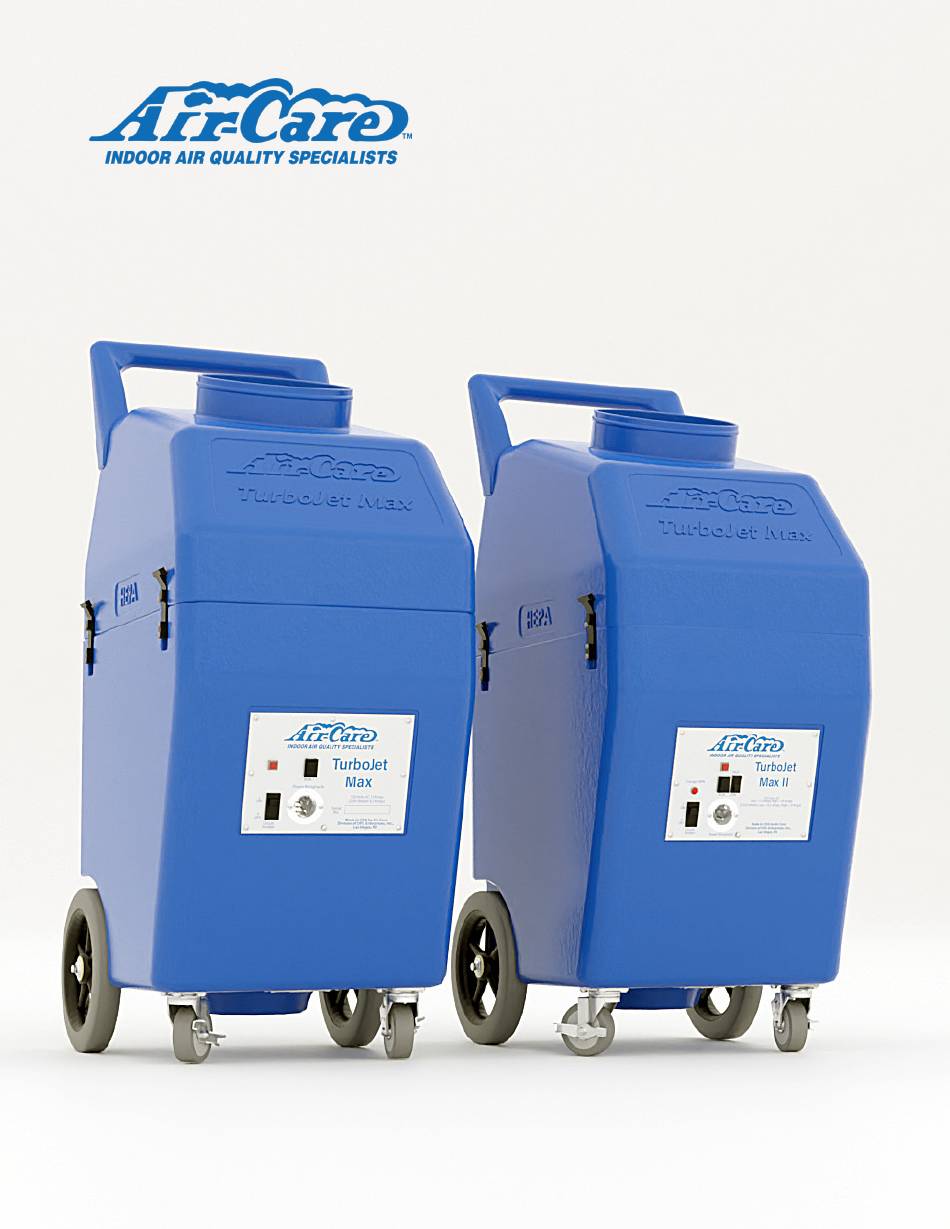

TURBOJET MAX/MAX II
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TurboJet Max FG0062 and is the answer not in the manual?

Questions and answers

Summary of Contents for Air-Care TurboJet Max FG0062

  • Page 1 TURBOJET MAX/MAX II USER GUIDE...
  • Page 2 TURBOJET MAX & MAX II TurboJet TurboJet Max II Division of D.P.L. Enterprises Inc. 3868 East Post Road, Las Vegas, Nevada 89120, (702) 454-5515, FAX (702) 454-5225 Website: www.air-care.com; E-mail: cs@Air-Care.com REV. 02132023...
  • Page 3: Table Of Contents

    PAGE 3 TABLE OF CONTENTS CHAPTER PAGE Unpacking Instructions Safety Precautions Handle Installation What is Negative Air Cleaning? Set-Up and Testing Duct Cleaning Procedures Troubleshooting Guide Maintenance Parts and Accessories Optional Parts and Accessories Specifications Limited Warranty...
  • Page 4: Unpacking Instructions

    • Never allow anyone but a properly trained technician to use the equipment or cleaning products. • All Air-Care equipment is designed for US standard 115 volt, 60 Hz AC. Most Air-Care equipment can be special ordered to meet other worldwide standards for a reasonable price and delivery schedule.
  • Page 5: Handle Installation

    PAGE 5 HANDLE INSTALLATION It must be installed with the 4 bolts provided and Handle is wrapped and packed near the your ½” socket wrench or nut driver. bottom, front of TurboJet. WHAT IS NEGATIVE AIR CLEANING?
  • Page 6: Set-Up And Testing

    If you need advice on how to connect to an unusual system, call Air-Care for assistance B.
  • Page 7: Duct Cleaning Procedures

    PAGE 7 DUCT CLEANING PROCEDURES In some cases, it may be best to attach the TurboJet to each Supply or return duct and insert the agitation device into that same duct opening to disturb debris as far up stream and down stream as possible.
  • Page 8 PAGE 8 DUCT CLEANING PROCEDURES 8. The TurboJet Max II can be 9. After all ducts are cleaned, 7. Then turn on the start switch set to “High” speed If a 20 amp the ducts can be fogged with and the power light will go on Power outlet is used.
  • Page 9: Troubleshooting Guide

    PAGE 9 TROUBLESHOOTING GUIDE Symptom Check Corrective Action No vacuum with motor Is blower turning? Call Air-Care: 1-800-322-9919 running. Airflow & vacuum, felt at Are the 1st stage Replace HEPA filters as required. inlet with motor running pad and 2nd stage...
  • Page 10: Maintenance

    First rinse in the opposite direction of the airflow, then rinse both sides. Occasionally, a degreaser such as Air-Care C.E.F electrostatic filter cleaner may be required to restore this filter to its’ peak performance.
  • Page 11 1st & 2nd stage filters are clean, it is time to replace the 3rd stage HEPA filter. NOTE: Applying compressed air pressure or using a vacuum brush on HEPA filter surface will damage the filter. If you have any questions, please call Air-Care at 800-322-9919 Third Stage HEPA Filter...
  • Page 12: Parts And Accessories

    12” x 25’ Light Duty Mylar Hose with Velcro Straps FG0013 Foam Register Plugs, 14pc./pkg. FG0050 Pre-Filter, Pellon Moisture Barrier Sheets, 12/pkg. SAO0079 Air-Care Single Fogger 120 Volt (for 220 Volt Call) (Optional) FG0186 Cobra Power VI Brush System (Not shown) (Optional) FGO194 Truckmaster II (Not shown) (Optional) FGO193...
  • Page 13 PAGE 13 PARTS AND ACCESSORIES Molded Handle 2nd Stage 16.75” x 22” 94% Electrostatic Flex Air Filter 12” Dia. Hose Inlet 3rd Stage 18” x 24” x 4.71” HEPA Filter Locking Latch Exhaust Grills 1st Stage 18” x 24” x 1”Disposable Front Swivel Casters Pleated Filter 12”...
  • Page 14: Optional Parts And Accessories

    PAGE 14 OPTIONAL PARTS AND ACCESSORIES (Ref#19) 12” x 12”, 26 gauge, Galvanized Steel Duct Patches 12” x 12”, 26 gauge, Galvanized 12” Adapter Plate (FG0041) (Ref#21) Pre-Filter, Pellon Steel Duct Patches Moisture Barrier Sheets (12/pkg) Pre-Filter, Pellon Moisture Barrier Sheets (12/pkg) Foam Register Plugs Sidewinder Hose Assembly...
  • Page 15: Specifications

    PAGE15 SPECIFICATIONS Specification Description Size 19.5” W x 29” D x 55 ½” H Weight 125 lbs. Power required 120 V, 60 Hz, 13 to 17 amps. Power Cord 25’ Extension Cord, 12 gauge Filtration 4 stages when Pellon pre-filter used Pre-Filter Pellon Moisture Barrier 1st Stage 18”...
  • Page 16: Limited Warranty

    1 Year Wheels & Filters No Warranty Warranty covers both parts and labor (labor is to be performed at Air-Care’s facility located at 3868 E. Post Road; Las Vegas, Nevada). Warranty is extended to the original purchaser and is not transferrable.
