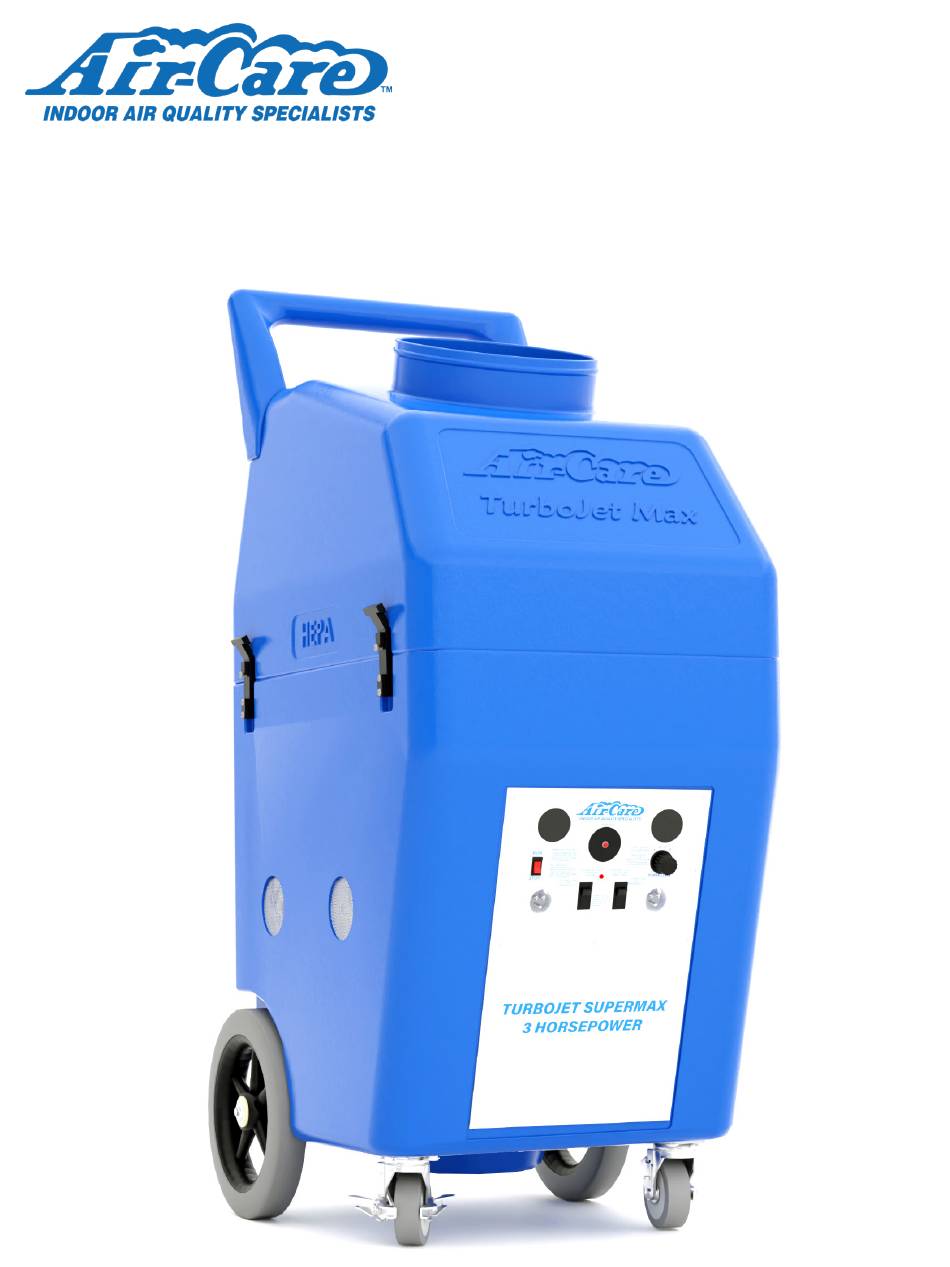

- Page 1 TURBOJET SUPERMAX USER GUIDE...
- Page 2 TURBOJET SUPER MAX Division of D.P.L. Enterprises Inc. 3868 East Post Road, Las Vegas, Nevada 89120, (702) 454-5515, FAX (702) 454-5225 Website: www.air-care.com; E-mail: cs@Air-Care.com REV. 02162023 Specifications subject to change without notice.
-
Page 3: Table Of Contents
PAGE 3 TABLE OF CONTENTS CHAPTER PAGE Unpacking Instructions Safety Precautions Handle Installation Operating Instructions Attaching the TurboJet Hose to the Air System Duct Cleaning Procedures Troubleshooting Guide Maintenance Parts and Accessories Included Parts and Accessories Optional Parts Specifications Limited Warranty... -
Page 4: Unpacking Instructions
“Operating” section of this manual. Inspect all of the packing material for small parts before discarding packaging material. Report all damage to Air-Care immediately. Any attempt at repairing damages may void warranty. Check that all parts are present TurboJet Max Main Assembly, with Wheels, Motor and Blower. Release the 4 side latches and lift the front of the upper section so it hinges up to check for filters. -
Page 5: Safety Precautions
• Never allow anyone but a properly trained technician to use the equipment or cleaning products. • All Air-Care equipment is designed for US standard 115 volt, 60 Hz AC. Most Air-Care equipment can be special ordered to meet other worldwide standards for a reasonable price and delivery schedule. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Set-Up and Testing Air-Care TurboJet Negative air machines are designed to “Pull” loose debris out of the air system to which they are connected and filter out harmful debris such as pollen, dust, mold spores and other debris with their 3 stage HEPA filter system. An agitating device to “Push” debris is required to properly clean an air system. - Page 7 Cords for 3-4 Minutes, then 800-322-9919 reconnect, and turn on both breaker switches at the same time, and wait 5 – 10 seconds before starting the Motor. If this does not clear the error condition, call: Air-Care, Tech Support 800-322-9919...
-
Page 8: Attaching The Turbojet Hose To The Air System
PAGE 8 ATTACHING TURBOJET HOSE TO THE AIR SYSTEM Effective duct cleaning can be accomplished with the TurboJet connected to one of the following positions in the duct system. The “best” location is determined by the specific configuration of the particular air system. -
Page 9: Duct Cleaning Procedures
PAGE 9 DUCT CLEANING PROCEDURES 2. Connect the two 12 gauge, 3. Connect a 12” hose to the 1. Bring the TurboJet into grounded, electrical power 12” TurboJet inlet. To obtain close proximity to the planned cords to Two Independent maximum “pull”, always keep the connection ducts. - Page 10 PAGE 10 DUCT CLEANING PROCEDURES 7. Use the RUN switch to start 8. Follow recommended 9. After all ducts are cleaned, the Turbo SuperMax motor. procedure to clean each supply, the ducts can be fogged with an beginning at the most distant EPA registered Deodorizer and one, using the Cobra Power Soot Set Sealer.
-
Page 11: Troubleshooting Guide
Air-Care No vacuum with motor Is blower turning? running. Tighten shaft adapter bolts and align wheel & inlet cone. (Call Air-Care) Replace HEPA filters as required. Are the 1st stage pre- Is the “Change HEPA” filter and 2nd stage... -
Page 12: Maintenance
2nd stage filter with a garden hose and nozzle at full force. First rinse in the opposite direction of the airflow, then rinse both sides. Occasionally, a degreaser such as Air-Care C.E.F. (Cleans Electrostatic Filters) electrostatic filter cleaner may be required to restore this filter to its’ peak performance. -
Page 13: Parts And Accessories
Foam Register Plugs, 14pc./pkg. (Optional) FG0050 Pre-Filter, Pellon Moisture Barrier Sheets, 12/pkg. (Optional) SAO0079 12” Adapter Collar FG0041 Air-Care Fogger Model 2600 120 Volt(for 220 Volt Call) (Optional) FG0008 Cobra 6, Power Brush System (Optional) FG0110 Forward and Reverse Air Whisk System (Optional) FG0015... - Page 14 PAGE 14 PARTS AND ACCESSORIES Description Part # Main Panel with all parts for 120 Volt Model TurboJet SuperMax (Includes Inverter or SATJ0037 Lower Panel Electronics and Harnesses) Main Panel with All part for 220 Volt Model (Does NOT include Inverter) Call AC Ammeters, 0-30 Amp ( 120 Volt Model requires 2, 220 V Model just 1) COM0193...
-
Page 15: Included Parts And Accessories
Power Switch, 1 & 2 for 1 Power Cord 3 & 4 for 2 Power Cords Status LED. GREEN, 5-sec Set up then READY Flashing RED, No Ground Solid RED, Power Loss (Reset Breakers) or Internal ERROR (Call Air-Care) Power Receptacles (2) (220 Ver. cord is hard wired) -
Page 16: Optional Parts
PAGE 16 OPTIONAL PARTS AND ACCESSORIES (Ref#19) 12” x 12”, 26 gauge, Galvanized Steel Duct Patches 12” x 12” , 26 gauge, 12” Adapter Plate (Ref#21) Pre-Filter, Pellon Galvanized Steel Duct Moisture Barrier Sheets (12/pkg) Patches Pre-Filter, Pellon Moisture Barrier Sheets (12/pkg) Cobra Power Brush System Foam Register Plugs... -
Page 17: Specifications
PAGE 17 SPECIFICATIONS Specification Description Size 19.5” W x 29” D x 55 ½” H Weight 151 lbs. (220 Volt Model, 145 lbs) 120 V, 60 Hz, 13 to 18 amps from Two power Cords. Optional 220 Power required Version has one Cord, for 7 to 18 amps at 220 Volts. 25’... -
Page 18: Limited Warranty
1 Year Wheels & Filters No Warranty Warranty covers both parts and labor (labor is to be performed at Air-Care’s facility located at 3868 E. Post Road; Las Vegas, Nevada). Warranty is extended to the original purchaser and is not transferrable.
