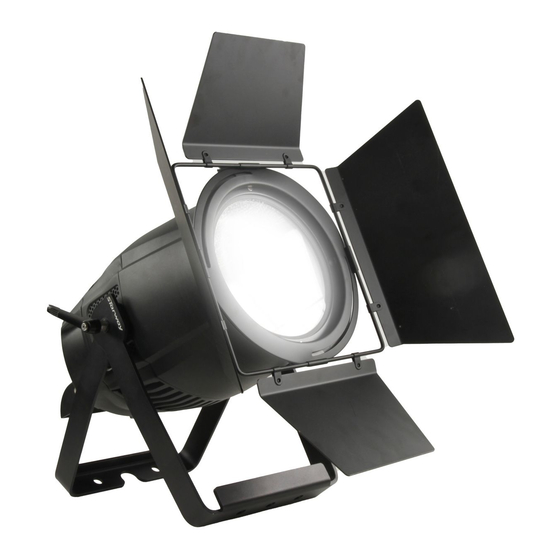

Summary of Contents for Starway ParKolor 200DW

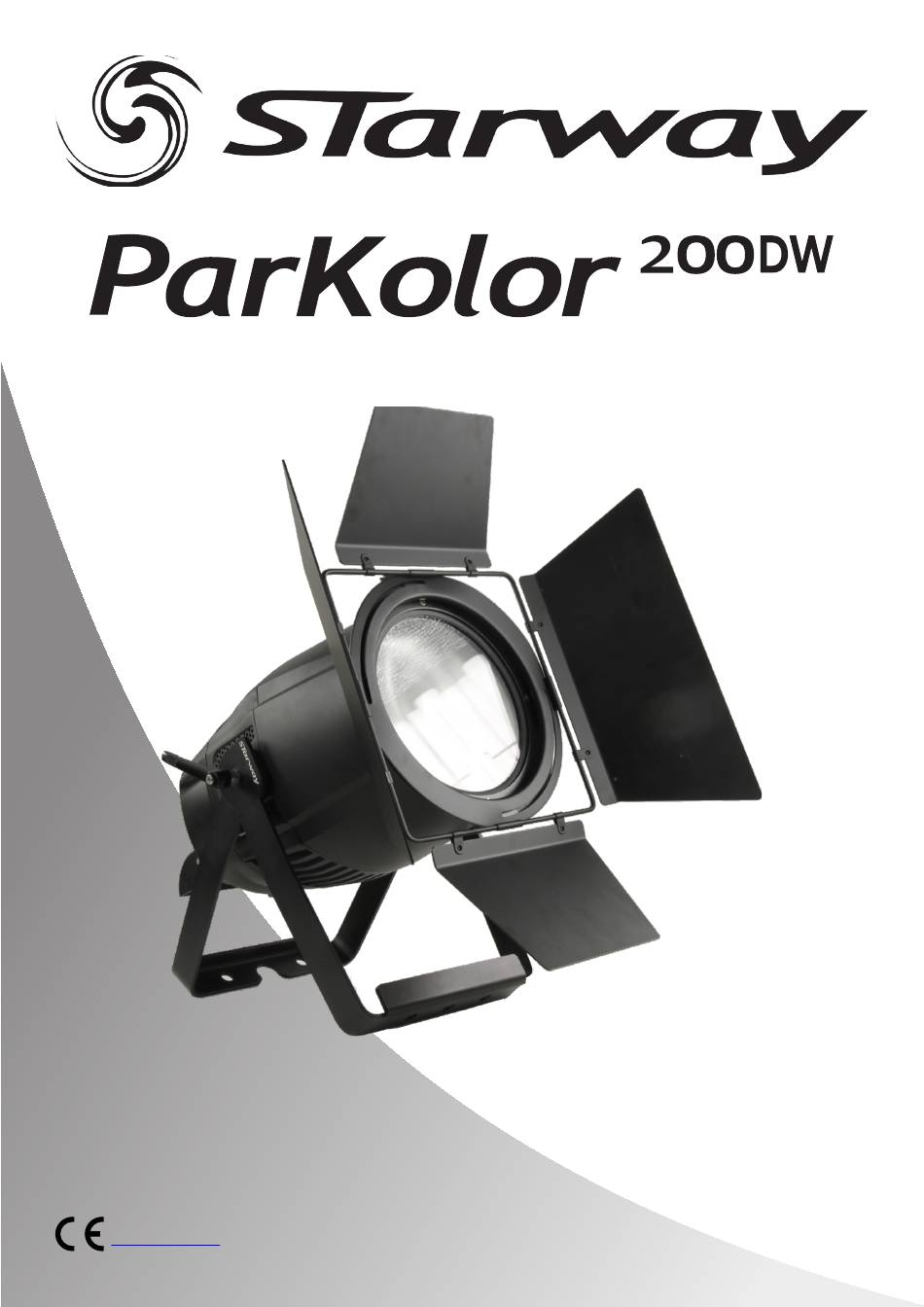

  • Page 1 User Manual www.star-way.com version 13022023 V1.02...
  • Page 2: Table Of Contents

    able of content Technical Specifications ................19 Dimensions ................... 19 Regulation and Safety ................22 Photometry .................... 23 Installation ..................... 25 DMX 512 use ..................25 Menu Structure ..................26 Display ....................27 Menu ....................27 DMX map ....................30 Page 18...
  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS : • Led COB 200W CW + 200W WW • Zoom 10 ° - 47 ° beam • Max flux : 18000 Lm • Protocols: DMX / RDM • DMX modes: 1/2/3-CCT/4/4-CCT/5/6/6-CCT/9ch • Auto / Static / Master-Slave •...
  • Page 4 WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important about the installation, usage and maintenance of the unit. SAFETY eneral nstructIon • The products referred to in this manual conform to the European Community Directives and are there-fore marked with CE:.
  • Page 5: Photometry

    Photometry Distance 5 meters , Zoom Minimum Color Temperature Warm White 2700° K 97.7 Cold White 6500°K 94.8 Lux Max @ 5m : 9062 Lux @ 10° Lumen Max @ 5m : 18000 Lm MK305s easureMents Made with u pectruM Warm White Page 21...
  • Page 6: Regulation And Safety

    Cold White Page 22...
  • Page 7 Regulated power Regulated power ON Mesures photométriques All Fan mode Fan High/Auto Fan Quiet Fan OFF Beam Field Lumen Lumen Lumen Lumen Angle Angle center Flux center Flux center Flux center Flux Zoom narrow 10° 18° 9062 7330 5699 5300 5375 4400 3890...
  • Page 8 Angle Mini Angle Maxi Field Radius in meters Page 24...
  • Page 9: Installation

    When the projector is hung, systematically and obligatorily remember to secure it with a safety chain. Electrical connection : Under 230 VAC, 5 ParKolor 200DW can be connected with the IN and Out connectors. Under 110 VAC, 2 ParKolor 200DWcan be connected with the IN and Out connectors.
  • Page 10: Menu Structure

    MENU STRUCTURE ADDRESS 001 - 512 CH_MODE 4CH - CCT 6CH - CCT Status LOST DMX Hold Blackout LCD.Set Display / OFF Key Lock / OFF / OFF Flash ON / Invert Temp °C / °F Fast Dimmer / OFF Dim Mode DIM0 (instant) DIM1 (0,25s)
  • Page 11: Display

    DISPLAY MODE: Scroll main menu or exit active submenu. Enter: To enter the menu or confirm the active function or value. Up: To scroll up in the menu or increase the value of the active function. Down: To scroll down in the menu or decrease the value of the active function. To unlock ParKolor 200 HD : Press MODE for 3/5 seconds To invert the PARKOLOR 200HD LCD...
  • Page 12 TEMP : • Choose temperature unit [CELSIUS] or [FAHRENHEIT]. FAST DIMMER Enter this sub-menu to bypass [DIM Mode] in case of rapid channel change from Dimmer to 0. • Choose [ON] or [OFF] to change dimmer behavior. DIM MODE Enter this sub-menu to set the speed of the Dimmer. •...
  • Page 13 DFSE : • Enter this sub-menu to reset the device to factory default. (Reload the values shown in in the menu structure) STROBE CH : Enter this sub-menu to select the behavior of the strobe channel: • [ON] - LEDs are ON when the strobe channel is at 0. •...
  • Page 14: Dmx Map

    DMX MAP MODE FUNCTION 1CH 2CH 4CH INTENSITY 0-255 0% → 100% INTENSITY FINE 0-255 0% → 100% SHUTTER 6-10 11-90 Regular strobe from slow to fast 91-170 Random strobe from slow to fast 171-255 Synchronized Random strobe from slow to fast ZOOM 0-255 0% →...
  • Page 15 NOTES In order to improve the products, technical modifications can be made without prior information. This is the reason why the technical characteristics and the physical appearance of the products can change. To benefit from the latest updates to our products, please log on to: www.star-way.com.
  • Page 16 STARWAY 22 Rue Edouard Buffard 77144 Montevrain France Tél. : +33 (0)820 230 007 Fax : +33 (0)1 46 15 47 16...
