Summary of Contents for Zehnder Rittling ComfoSense CH

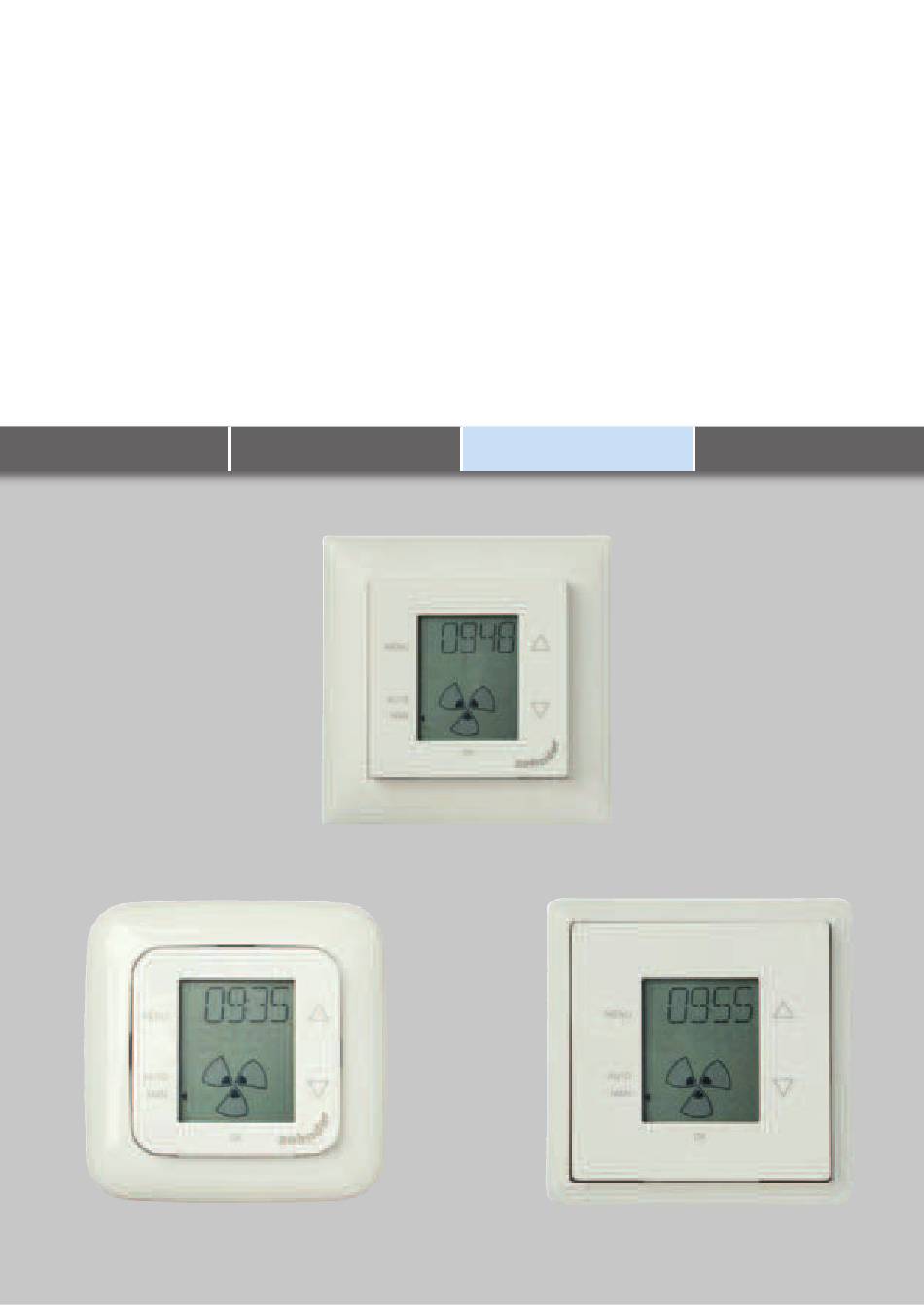

- Page 1 Handleiding ComfoSense Manual ComfoSense Betriebsanleitung ComfoSense Manuel ComfoSense Manuale ComfoSense Podręcznik ComfoSense Manual ComfoSense Heating Cooling Fresh Air Clean Air ComfoSense CH ComfoSense 55 ComfoSense 67...
-
Page 2: Table Of Contents
Table of contents Introduction ..................17 Warranty ..................17 Safety ..................17 Use of the ComfoSense ..............18 AUTO operation ................19 MAN operation ................19 Menu access ................20 Switching the ComfoHood ............20 Switching the ComfoHood Timer ..........20 Switching the PARTY TIMER ............ -
Page 3: Introduction
Introduction 1.1 Warranty ComfoSense (henceforth called The manufacturer provides warranty for a “device”) is a control device for residential period of 24 months after installation to a ventilation units (henceforth called maximum of 30 months after production “ventilation unit” or “HRU”). The device date of the device. -
Page 4: Use Of The Comfosense

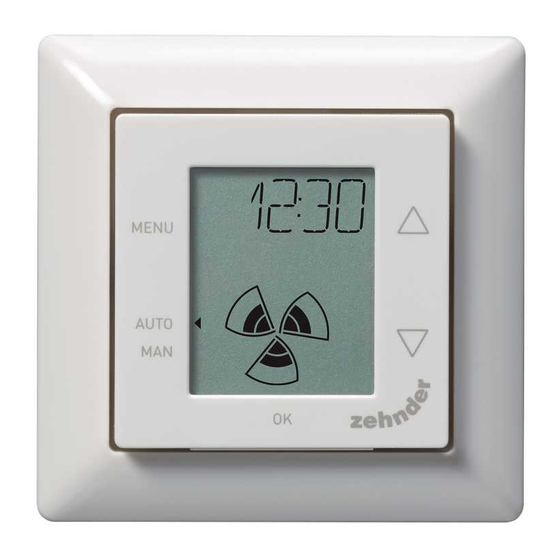

Use of the ComfoSense Buttons: Display: Text; Time. Increase value; Select next item. Value (program, parameter, temperature). Degree Celsius/Fahrenheit**; Decrease value; Percentage. Select previous item. ComfoHood*. Supply fan off; Shift; Exhaust fan off; Confirm. Fan speed. Night cooling active. Automatic operation; Manual operation. -
Page 5: Auto Operation
Meaning symbols: 2.1 AUTO operation In Automatic operation mode the device The second function of SHIFT can tell the ventilation unit automatically the buttons is active. which ventilation setting is wanted. The The ventilation setting default ventilation setting of the ventilation TIMER is overruled by a timer unit is “Medium”... -
Page 6: Menu Access
2.3 Menu access 2.5 Switching the Entering User menu ComfoHood Timer To enter the User menu, press MENU. This function is only visible if a ComfoHood In the User menu, you can choose the (cooker hood with sensor) is connected following options: HOOD*, TIMER HOOD*, and a delay time is programmed in PARAM PARTY... -
Page 7: Ventilation Program (Prog)
2.7 Ventilation program (PROG) Example: Prog # Activity Day period Time Fan speed Prog 1 Showering MO-FR 7:00 – 8:00 Prog 2 Not at home MO-FR 9:00 – 17:00 Prog 3 Making Lunch MO-FR 12:30 – 13:00 Prog 4 Breakfast WEEK 6:00 –... - Page 8 program. 6. Press to choose the day period. The following day period can Deleting a program be chosen: 1. Press MENU. = Monday; = Tuesday; 2. Press to choose PROG. = Wednesday; 3. Press OK to confirm. SET is blinking. = Thursday;...
-
Page 9: Setting The Clock
2.8 Setting the CLOCK SAVED for 2 seconds. The menu is automatically closed. 1. Press MENU. 2. Press to choose CLOCK. 2.10 Switching the FAN 3. Press OK to confirm. The day indicator is blinking. When wanted, the supply (IN) or exhaust 4. -
Page 10: Setting Param (Parameters)
exhaust fan; 10. Press OK to confirm. The text says BOTH ON = Switch on both fans. SAVED for 2 seconds. The main 6. Press OK to confirm. The text says parameter menu number is blinking. SAVED for 2 seconds. The menu is 11. -
Page 11: Error Messages
Error messages Installation When the filters must be cleaned or replaced the text says FLTR, INT or FLTR, EXT*. Clean or replace the filters as Disconnect the ventilation unit described in the manual of the ventilation from the main power before unit. -
Page 12: Commissioning
6. Push the cover C to its place. 5. Press twice to choose PASSW. 6. Press OK to confirm. The password To remove the cover, firmly pull number 0 appears. the cover away. Do not use too 7. Press to choose 14. much force. - Page 13 List of specific ComfoSense parameters (Not present in the ventilation unit) Default Description Default start time of new week program. Default end time of new week program. Default speed level: 0 = away; 1 = low; 2 = medium; 3 = high; 4 = sensor*.
