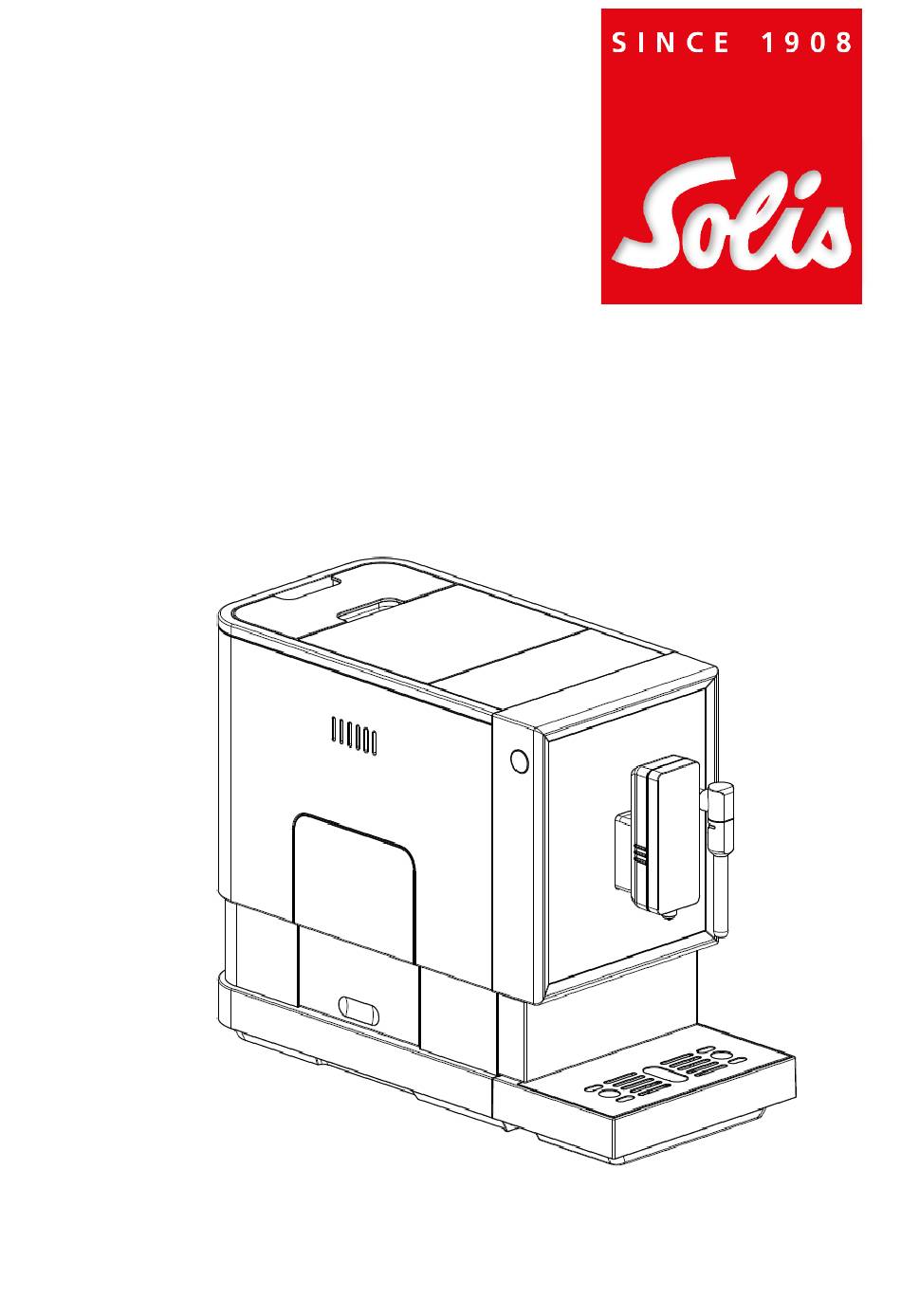

- Page 1 SOL8920 Automatic Coffee Machine Instruction Manual Page 1 of 20 SOL8920 Automatic Coffee Machine Instruction Manual...
- Page 2 SOL8920 Automatic Coffee Machine Instruction Manual Page 2 of 20 IMPORTANT INFORMATION These important safety precautions are a critical part of the appliance. Please read them all carefully before using the appliance for the first time. You may keep the instructions for future reference or pass them to other users.
- Page 3 SOL8920 Automatic Coffee Machine Instruction Manual Page 3 of 20 13. Do not place the cord on a sharp edge of an item. 14. Do not attempt to open the main body or dismantle any parts from the appliance, there are no serviceable part inside.
-
Page 4: General Description
SOL8920 Automatic Coffee Machine Instruction Manual Page 4 of 20 GETTING TO KNOW YOUR AUTOMATIC COFFEE MACHINE GENERAL DESCRIPTION External Drip Tray Internal Drip Tray Coffee Grounds Container Metal tube Steam Nozzle Nozzle cover Steam indicator light Adjustable coffee spout... -
Page 5: Control Panel
SOL8920 Automatic Coffee Machine Instruction Manual Page 5 of 20 CONTROL PANEL Power ON/OFF Button Flashing: Low water level/ Water tank missing Lights up stably: Lack of beans Lights up stably: Coffee Grounds Container is full Flashing: Internal Drip Tray/Coffee Grounds Container is missing... -
Page 6: Machine Installation
SOL8920 Automatic Coffee Machine Instruction Manual Page 6 of 20 B. MACHINE INSTALLATION 1. Remove any protective films, stickers and any other packing material on the appliance. 2. Choose a safe and stable surface with a power supply allow minimum distance from the sides of the machines. - Page 7 SOL8920 Automatic Coffee Machine Instruction Manual Page 7 of 20 Fill the bean box with coffee beans (SEE “FILLING THE COFFEE BEAN CONATINER). 6. Unwind and straighten the power cord and insert the plug into the socket located at the back of the machine. Insert the other end of the power cord into a wall socket with a suitable power voltage.
-
Page 8: Filling The Water Tank
SOL8920 Automatic Coffee Machine Instruction Manual Page 8 of 20 5. The coffee button you pressed will light up and the illumination will stay on, indicating that the appliance is preparing the cup of coffee. 6. When the appliance is back to standby condition, the coffee is ready to be served. -
Page 9: Filling The Bean Container
SOL8920 Automatic Coffee Machine Instruction Manual Page 9 of 20 IMPORTANT: Never fill the water tank with warm, hot, sparkling water or any other liquid which might damage the water tank and the machine. III. FILLING THE BEAN CONTAINER Tip: Depending on your choice, you can use the large bean container accessory to enlarge the bean container as below. -
Page 10: Hot Water
SOL8920 Automatic Coffee Machine Instruction Manual Page 10 of 20 III. Preparing Frothy Milk for Coffee As the temperature of the steam is higher than the temperature of espresso, coffee should be prepared before making frothy milk, otherwise the espresso might be burnt. - Page 11 SOL8920 Automatic Coffee Machine Instruction Manual Page 11 of 20 1. Remove the external drip tray. 2. Empty the water inside the drip tray in the sink and wash the tray with fresh water. Dry it afterwards. 3. Slide open the internal drip tray and the coffee grounds container.
- Page 12 SOL8920 Automatic Coffee Machine Instruction Manual Page 12 of 20 6. Remove the service door. 7. Press the release knob. 8. Remove the brewer. 9. Wash the brewer with fresh water. Dry the brewer afterwards. 10. Insert back the brewer to its original position and install back the service door to its original position.
- Page 13 SOL8920 Automatic Coffee Machine Instruction Manual Page 13 of 20 11. Place the coffee grounds container on the internal drip tray and insert back into its original position. Note: When is flashing, the coffee grounds container is missing. 12. Place the external drip tray back in its original position.
-
Page 14: Further Settings
SOL8920 Automatic Coffee Machine Instruction Manual Page 14 of 20 15. Wash the nozzle cover with warm running water and use the needle or bristles of the brush to clean the hole. 16. Wash the metal tube with warm running water and use the needle or bristles of the brush to clean the hole. -
Page 15: Grinding Adjustment
SOL8920 Automatic Coffee Machine Instruction Manual Page 15 of 20 2. When the volume of coffee meets your desired volume, release the button. Two beep sounds will be heard, indicating that the volume of coffee has been memorised. GRINDING ADJUSTMENT... -
Page 16: Cleaning And Maintenance
SOL8920 Automatic Coffee Machine Instruction Manual Page 16 of 20 E. CLEANING & MAINTENANCE SELF-CLEANING When lights up stably, it indicates that the appliance needs to undergo self-cleaning. The appliance will remain in the best condition if this function is performed at least once a month or more regularly, depending on the hardness of the water used. -
Page 17: Manual Rinsing
SOL8920 Automatic Coffee Machine Instruction Manual Page 17 of 20 will then be flashing. Remove the water tank from the appliance. will light up stably, indicating that the empty system is under process. You can press before removing the water tank to resume back to the standby condition. - Page 18 SOL8920 Automatic Coffee Machine Instruction Manual Page 18 of 20 2. Take out the service door. 3. Press the release knob of the brewer. 4. Take the brewer out. 5. Use the cleaning brush to clean the coffee powder outlet.
-
Page 19: Troubleshooting
SOL8920 Automatic Coffee Machine Instruction Manual Page 19 of 20 F. TROUBLESHOOTING PROBLEM CAUSE SOLUTION The appliance does not The appliance is not connected to - Plug in and press the switch. work. the mains. - Check the cable and the plug. - Page 20 SOL8920 Automatic Coffee Machine Instruction Manual Page 20 of 20 Award Appliances Nz Ltd 382 Blenheim Road, Christchurch, New Zealand 8041 https://www.awardappliances.co.nz/...
