aosu
一
Solar-Powered Wireless Security Camera
Quick Start Guide
0
United States: +1-866-905-9950 Mon-Fri 9AM-5PM (PST)
United Kingdom: +44-20-3885-0830 Mon-Fri 9AM-5PM (GMT)
Germany: +49-32-221094692 Mon-Fri 9AM-5PM (CET)
」apan: +81-50-5840-2601 Mon-Fri 9AM-5PM (」ST)
i)
suppo「t@aosulife.com
。
www.aosulife.com
O
@aosulife
Advertisement
Related Manuals for aosu SolarCam P1 Lite
Summary of Contents for aosu SolarCam P1 Lite

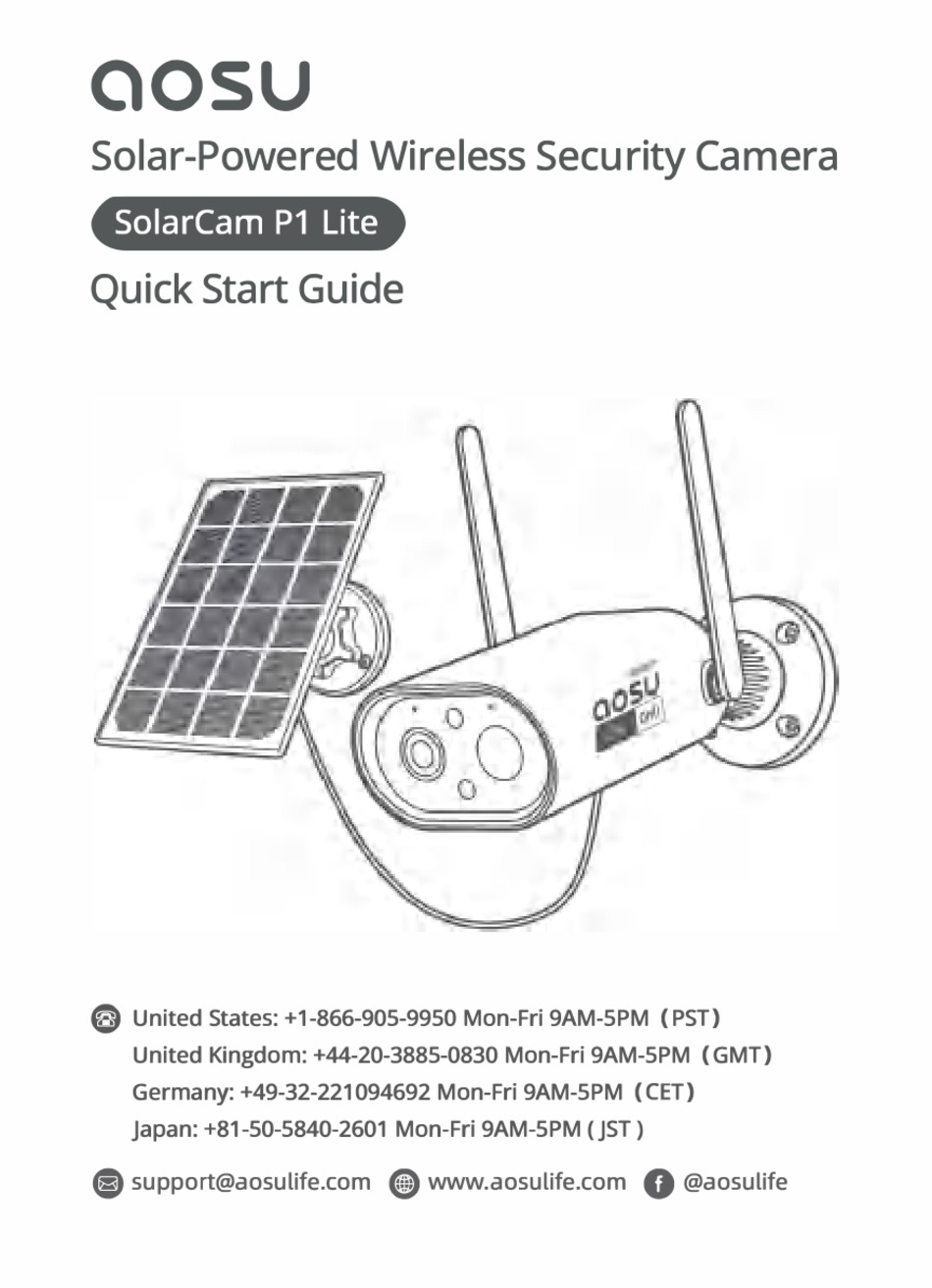

- Page 1 一 Solar-Powered Wireless Security Camera Quick Start Guide United States: +1-866-905-9950 Mon-Fri 9AM-5PM (PST) United Kingdom: +44-20-3885-0830 Mon-Fri 9AM-5PM (GMT) 。 Germany: +49-32-221094692 Mon-Fri 9AM-5PM (CET) 」apan: +81-50-5840-2601 Mon-Fri 9AM-5PM (」ST) suppo「t@aosulife.com www.aosulife.com @aosulife...
- Page 2 AOSUCare Hi Customer Thank you for choosing AOSU security products. We have always put our customers first and foremost. There a e 3 things you should know before using this product: 「 1. Micro SD Card If you don't have a Micro SD Card available at home now and don't want to spend extra time choosing one, please contact us directly.
- Page 3 TABLE OF CONTENTS What's Included Product Overview SettingUptheSystem Mounting the Camera P04-12 P13-P14 Notice Customer Service...
- Page 4 What's Included SolarCam P1 Lite 丛 『勹 r,,,,,,,,,m,m,,•o=, [111111111111111111•11:::.= ＇ 它 t""""""'"''"o呻l 。 [1m1m111>1m1>•0�> USB-C Charging Camera Screw Pack Cable 曰 三 Quick Start Guide Position Sticker Security Sticker Solar Panel e 。 邑 琴 Locking Solar Panel Universal Joint...
- Page 5 Product overview Antenna Base bracket Microphone Status LED Infrared LEDs/Spotlights Lens PIR Motion Sensor Micro SD Card Slot Speaker CAUTION: Please insert the Micro SD Card according to the direction shown in the diagram. Micro SD Card might JAM if inserted incorrectly and device could be damaged.
- Page 6 Setting Up the System Download the Aosu App from the App Store (iOS devices) or Google Play (Android devices). Sign up for an Aosu App account, then follow the onscreen instructions to complete the setup. -03-...
- Page 7 Find a Good Mounting Spot To find a spot to mount Camera, you need to test wireless signal strength. CD Open the aosu App, go to Camera Settings> Mounting Guide. @ To test the wireless signal strength, take your camera and phone to the location where you want to mount the camera.
- Page 8 Select Height and location Hang Camera 7-1 Oft (78-118 inches) above the ground. This height maximizes the detection range of the motion sensor of Camera. Avoid placing Camera under direct sunlight. Camera field view Up to 32ft Make sure of the reserving wire length Reserve 23cm of end wire, fix the bottom base, avoid wire damage when camera turns.
- Page 9 Installation instruction of solar panel 1. keep the installation angle of solar panels about 30-45 ° with the horizontal plane, as shown in the picture below. 2. The installation between the solar panel and the camera is shown in the following figure {open up the silicone cover at the bottom of the camera.
- Page 10 Test the Wi-Fi signal at installation position Use cell phone to test Wi-Fi signal quality at the installation position before installing camera, make sure the Wi-Fi router can provide good W由signal. -07-...
- Page 11 Test the Wi-Fi signal at installation position 1. Dr曲ng according to position sticker, drill bit 15/64"(6 mm). 2. Insert the plugs. 3. Tighten the screws. What is required: 飞 Power Drill (not provided) Sticker Screws · ·········· W a ll ..
- Page 12 Installation instruction of solar panel Place Solar Panel in an area with consistent sunlight throughout the year.It only needs a few hours of direct sunlight each day to keep you camera powered. 「 The amuont of energy that the solar panel produces is affected by weather conditions.seasonal changes, geographic loction,etc.
- Page 13 2. First.install the locking screw cap into the universal joint and then screw the circular socket nut into the universal joint. © ..Front ·L ockin g Screw Ca p Socket nut 一 气 们 c勹 ＠ Universal丿oint Back 3.
- Page 14 4. Screw the locking screw cap into the base.Make sure that the ｀ universal」oint is angled upward. ． ． ， ． Locking Screw Cap 5. When adjusting the solar panel left or right.loosen thelock1ng screw cap.turn the sleeve rod.and tighten thelocking screw cap when the panel is in position.
- Page 15 ＠ . . . Sleeve Rod Locking Screw Cap ° 6. Solar panel's angle can be adjusted up and down up to 90 Tip: After the installation is complete,please check that all locking mechanisms are tightly secured. 嫩 癒 獭 一12-...
- Page 16 Notice FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 17 This product complies with the radio interference require ments of the European Community. Declaration of Conformity Hereby, Aosu declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site:https://www.aosu...
- Page 18 Customer Service Warranty 12-month limited warranty(The actual warranty period shall be implemented according to the requirements of local laws and regulations) Email Us Customer Support: support@aosulife.com Call Us United States: +1-866-905-9950 Mon-Fri 9AM-5PM (PST) United Kingdom: +44-20-3885-0830 Mon-Fri 9AM-5PM(GMT) Germany: +49-32-221094692 Mon-Fri 9AM-5PM(CET) Japan: +81-50-5840-2601 Mon-Fri 9AM-5PM (」ST) ＠...
- Page 19 ISED Statement ‐ English: This device complies with Industry Canada license‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 20 aosu...
