Kia 3WF60 AQ700 Manual
Kia 3WF60 AQ700 Manual

Kia 3WF60 AQ700 Manual

Remote engine start - push start for sportage 2014-

Advertisement

Quick Links

Installation Restrictions
If vehicle does not have the following standard equipment, DO NOT PROCEED WITH INSTALLATION:
automatic transmission, power doors & locks, smart key and push button ignition system.
Instructional Symbols / Definitions
Denotes warnings that may lead to
serious physical injury or vehicle
damage.
Denotes cautions to be taken to
avoid physical injury or electronic
component damage.
Denotes cautions to be taken to
avoid vehicle or component damage.
Basic Required Hand Tools
Ratchet
10mm Socket
Hood Lever Tool
Trim Removal Tool
Pliers
Clean Cloth
Notes to the installer
Read the entire installation manual prior to beginning the installation of the accessory.
1
Ensure that the vehicle is properly protected in the area that the accessory is to be installed.
2
To prevent vehicle damage, never place tools on top of painted surfaces, seats, dash pad, console or floor carpet / mat.
3
Always wear appropriate safety equipment, including gloves and eye protection when required.
4
Prior to disconnecting the negative lead to the battery, note the AM/FM and satellite radio set frequenecies on the inspection page, if applicable.
5
Factory wire harness colors are subject to change. Please use the specified pin # in the harness connector to identify the correct wire for tapping.
6
Ensure the transportation fuse is properly installed before performing the function check.
7
Open driver's door window.
8
Vehicle should be at room temperature.
9
To prevent stress on the remote start wire harness, ensure the tilt/telescope steering column is fully extended, if equipped.
10
Genuine Accessories
Vehicle Model:
Sportage
Model Year:
2014 ~
Part No.:
3WF60 AQ700
Note: Difficulty stated above reflects the minimum level of expertise required to install the
accessory: ( A ) Customer
Denotes quality processes to be
checked prior to moving to the next
step.
Denotes specific tools that are
necessary to complete the step.
N
O
Denotes instructional steps
T
necessary to complete the process.
12mm Socket
Phillips Screwdriver
50/50 Isopropyl Alcohol
(70%) & Water
Technical Support
For Authorized Dealers: 855-225-7344
Hours: 9:00 a.m. - 5:00 p.m. EST Monday - Friday
Revision Date
Accessory:
Difficulty:
( B ) Dealer Technician
8mm Socket
Wire Cutter
08/10/2016

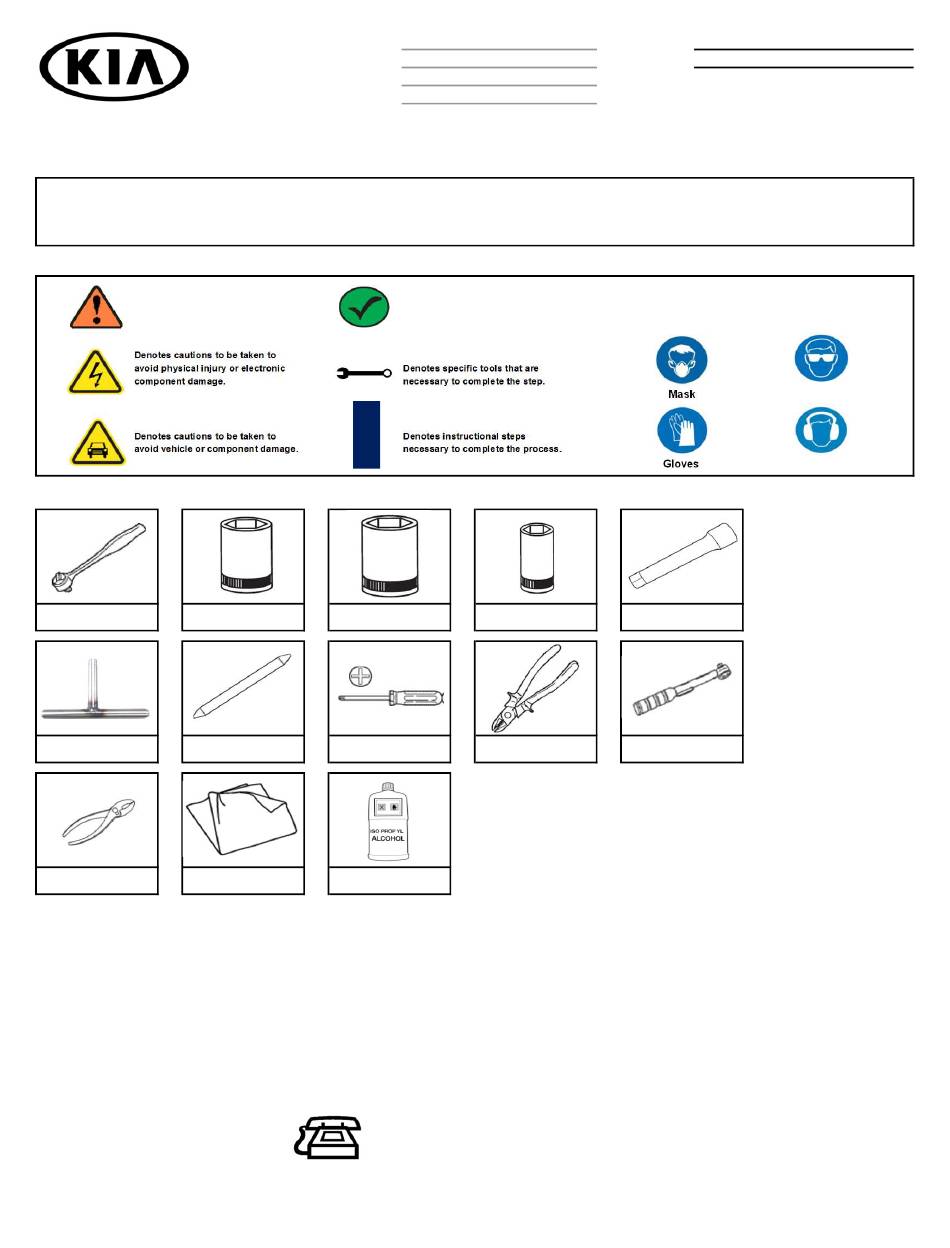

Remote Engine Start - Push Start
( B )
( C ) Master Technician
Denotes safety equipment required to be used, such as a
mask, safety glasses, gloves or hearing protection.
Safety Glasses
Mask
Hearing Protection
Gloves
Extension
Torque Wrench
Page 1 of 18
