WARNING
It is the responsibility of the vehicle operator to ensure that their vehicle is parked in a safe and responsible manner.
1. When leaving the vehicle, it is the user's responsibility to ensure that the gearshift lever is in "Park" in order to
avoid accidents upon remote starting. (Note: Make sure that the automatic vehicle cannot start in "Drive".)
2. It is the user's responsibility to ensure that the remote starter is disabled or put into valet mode before servicing.
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this device.
2-WAY REMOTE STARTING SYSTEM
WITH 1 BUTTONS
FOR AUTOMATIC TRANSMISSION
RED301-2WAY
User Guide For Key
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kia RED301-2WAY
Summary of Contents for Kia RED301-2WAY
- Page 1 2-WAY REMOTE STARTING SYSTEM WITH 1 BUTTONS FOR AUTOMATIC TRANSMISSION RED301-2WAY User Guide For Key WARNING It is the responsibility of the vehicle operator to ensure that their vehicle is parked in a safe and responsible manner. 1. When leaving the vehicle, it is the user’s responsibility to ensure that the gearshift lever is in “Park” in order to avoid accidents upon remote starting.
-
Page 2: Using The Remote Control

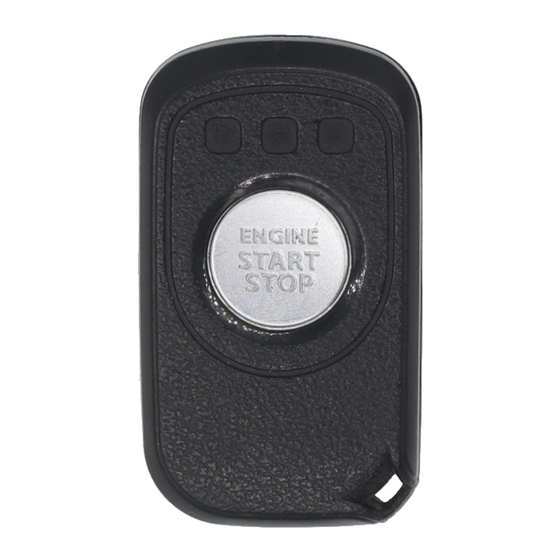

Using the remote control Description of Remote Appearance Lock, Unlock and Remote Lock, Unlock and Remote Starting icon is displaying with Starting icon is displaying with One LED color. Two LED color. Lock/Unlock Note: Press the button 1 time on the remote control transmitter to lock the vehicle. - Page 3 Vehicle Presets Heater When leaving the vehicle it is recommended to preset the accessory controls in preparation for the Next remote start. Settings for the blower motor(fan),front and rear (if equipped),should not be left on HIGH. It is recommended to leave the settings on LOW or MEDIUM instead. Windshield Wipers, Headlights Certain vehicles require the windshield wipers and headlights circuits to become energized while running under remote start.
- Page 4 Note: LED icon of 2way transmitter indicates firstly blue color and then change to “RED” color when you press any button. In this case, it’s time to change CR2025 battery newly Remote-Starting your Vehicle Remote-Starting For the 2-way remote: 1. Press the button one time.
- Page 5 If your vehicle does not start at the first attempt, the system will shut down, wait a few seconds and try to start the engine again. There will be 3 start attempts before the system gives up. Note: Please make sure press to button only after LED lighting ends to activate each feature properly. Driving Off (Steps from Remote Start to Driving) With the vehicle running remotely, press button 2 times to disarm the OEM Starter Kill and/or the OEM alarm and unlock the doors.
- Page 6 After pressing button once, if you press button 2 times within 3 seconds, remote starter will be operated. Once remote starter is succeeded and the engine is turned on, the remote will receive signal and shows the remaining remote starter time as a START LED icon. Remote Starter Features Remote Start Error Diagnostic If remote engine starter fails, the vehicle will not be started and the horn will sound accordingly to the table below.
- Page 7 To Engage Valet Mode/Service Mode: (Approaching to Function stop mode) 1) Insert the vehicle’s key to the IGNITION, turn to the ON position. 2) Press and hold the vehicle brake. 3) Press and hold the remote button for 2 seconds, the key LED will flash and the vehicle’s indicator will flash 1 time. Valet mode is engaged. To take the system out of Valet Mode (Return the system to its normal operating mode): (Disarming “Function Stop Mode”) 1) Insert the vehicle’s key to the IGNITION, turn to the ON position.
- Page 8 Light and Horn of vehicle will activate according to Engine Run Time option. Number of Indicator+ Horn Settings 1 Time 10 Mins (Default) 2 Times 5 Mins Light Blinking during remote engine start Option Setting Condition Disarm the vehicle with remote control transmitter.(Unlock) Driver s door must be physically Open, Engine Stop, Ignition ON, Trunk Open and Hood Open.
- Page 9 2. Pairing procedure RS Fob X1 1) Open driver’s door and trunk. 2) Insert the key into the ignition. Turn the key from OFF to ON position 5 times within 5 seconds. 3) After step 2), within 5 seconds, Press button on the 1st Remote Start Fob 1 time. 4) After registering the 1st Remote Start Fob, within another 5 seconds, Press button on the next 2nd Remote Start Fob 1 time.
- Page 10 -The shape of the vehicle can affect range as well. Vans in general have greater interference. The shape of the roof and A-pillars causes considerable radio-frequency interference. Demonstrate to users that the best range is facing the vehicle's front. The worst range is facing the vehicles right or left side. Please inform the users that facing the vehicle’s front offers the best range.
