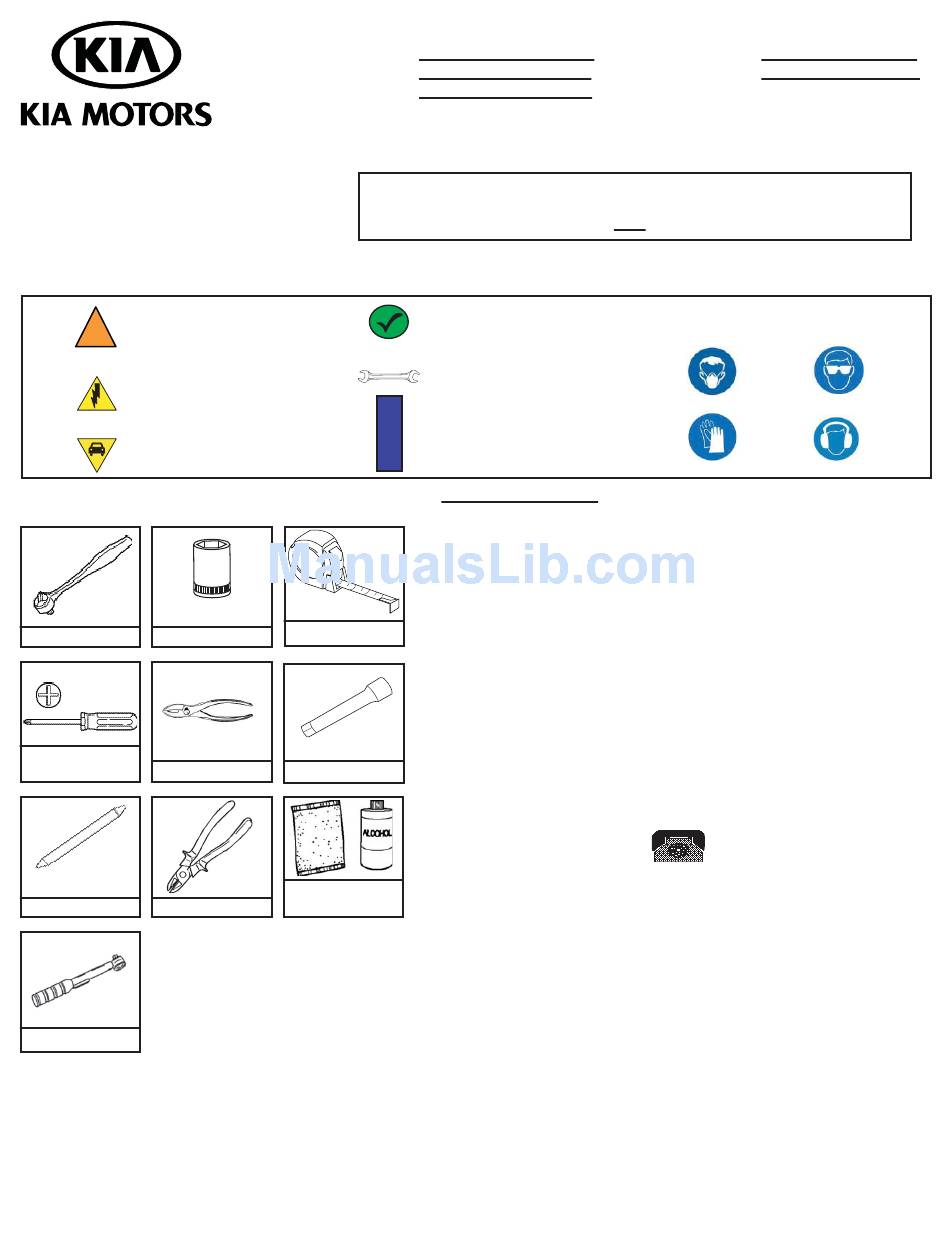

Instruction Symbols / Defi nitions
Denotes warnings that may lead to
!
serious physical injury or vehicle
damage.
Denotes cautions to be taken to avoid
physical injury or electronic component
damage.
Denotes cautions to be taken to avoid
vehicle and component damage.

Basic Required Hand Tools

10 mm Socket
Ratchet
#2 Phillips
Pliers
Screwdriver
Torque Wrench
P/N: 4280516, Rev. A
Vehicle Model Sorento (Key Start)
Model Year
2014 ~
Part No.
1U056 ADU00
Note: Diffi culty stated above refl ects the minimum level of expertise required to install the accessory
( A ) Customer
Ensure vehicle is equipped with automatic transmission, power door locks
and power windows. If the vehicle is not equipped with these options, do
not proceed. Ensure vehicle does NOT have SMART KEY.
Denotes quality processes to be
checked prior to moving to the
next step.
Denotes specifi c tools that are neces-
sary to complete the step.
N
Denotes instructional steps
O
necessary to complete the
T
process.
E

Notes to the Installer:

Read the entire installation manual prior to beginning the installation of the
accessory.
Factory wire harness colors are subject to change, please use the specifi ed pin
# in the harness connector to identify the correct wire for T-Tap installation.
Ensure that the vehicle is properly protected in the area that the accessory is to
be installed.
Tape Measure
To prevent vehicle damage, never place tools on top of painted surfaces, seats,
dash pad, console or fl oor carpet / mat.
Always wear appropriate safety gear to include gloves and eye protection when
required.
To prevent stress on the remote start wire harness, ensure the tilt/telescopic
steering column is fully extended, if equipped.
Extension
Ensure the transportation fuse is properly installed before performing the
function check on page 17.
Alcohol Cleaner /
Clean Cloth
Revision Date
4/22/2013
Accessory
Diffi culty
( B ) Dealer Technician
Denotes safety equipment required to be used
such as a mask, goggles, rubber
gloves, and hearing protection.
Rubber Gloves
Technical Support
For Authorized Dealers - (800) 667-5176
Hours: 9:00 a.m. - 5:30 p.m. EST Monday - Friday
Remote Engine Start
( B )
( C ) Master Technician
Mask
Goggles
Hearing Protection
Page 1 of 25
