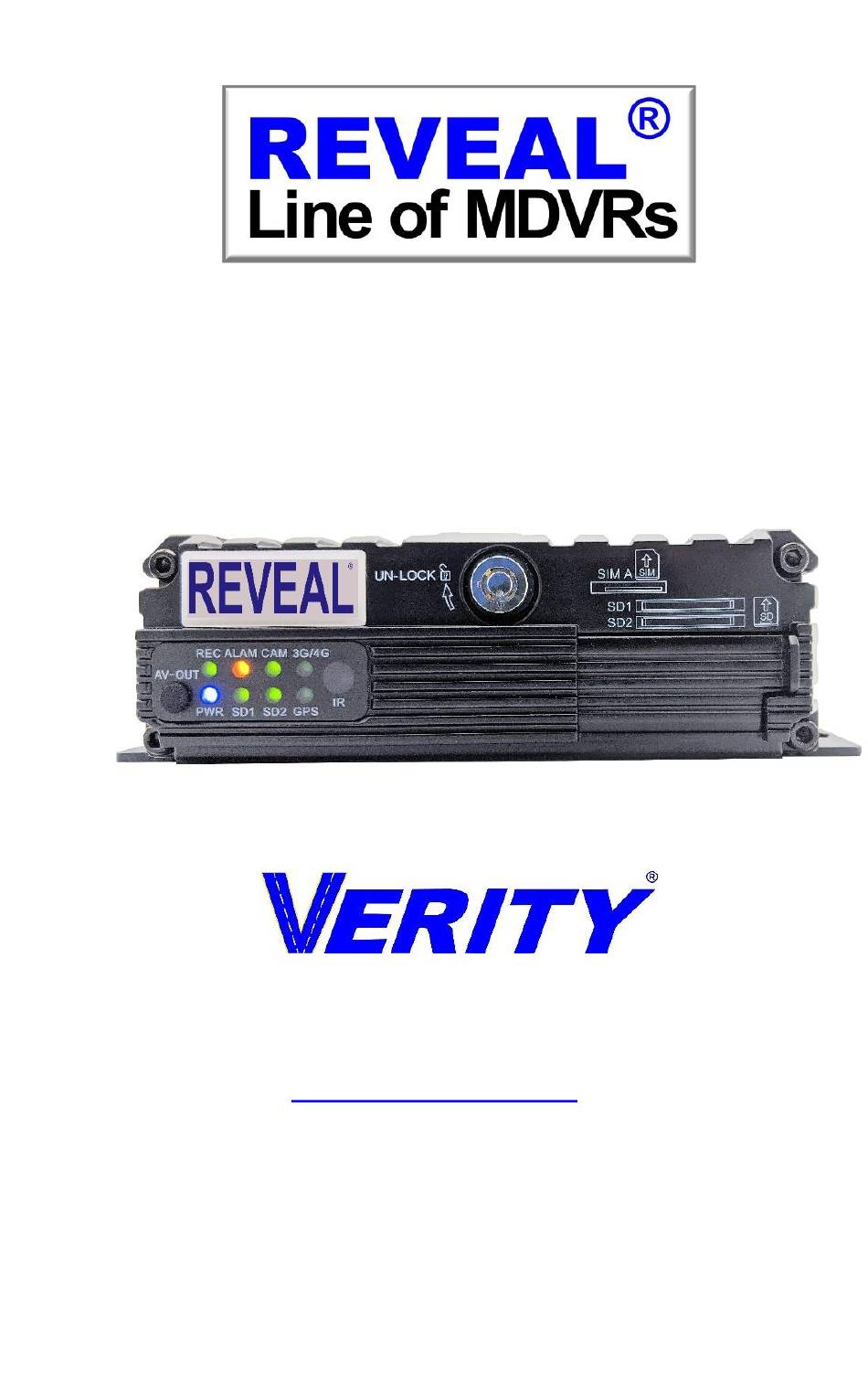

Installation Instructions for
REC02U & REC03U w/ GPS
HD 4-CH Dual SD Card Hybrid HD
MDVR Distributed by Verity.
Please read this manual completely before operating the SYSTEM
A division of
Component Solution Services, LLC.
56600 Twin Branch Dr., Mishawaka, IN 46545
www.veritysafe.com
2023 Verity / All rights reserved / Subject to Change
Advertisement
Table of Contents
Related Manuals for Verity Audio Reveal REC02U
Summary of Contents for Verity Audio Reveal REC02U
- Page 1 Installation Instructions for REC02U & REC03U w/ GPS HD 4-CH Dual SD Card Hybrid HD MDVR Distributed by Verity. Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.veritysafe.com 2023 Verity / All rights reserved / Subject to Change...
-
Page 2: Table Of Contents
Contents ABOUT US ..................3 THINK SAFETY FIRST ..............4 Components ................6 Power Cable ................6 Placement ...................7 VIDEO | TIGGERS ..............8 Front Video | Audio Out ..............8 OPTIONAL: ADD02CP ..............9 Connecting Harnesses ...............10 Metal Connector Tamper-resistant Cover ........11 WARRANTY ................15 IMPORTANT NOTICE: There have been many recent changes to electrical harnesses in commercial vehicles. -
Page 3: About Us
ABOUT US Verity does not just buy systems off the shelf overseas, put our logo on them, and ship them out. We work with engineers, some at our location in Mishawaka, Indiana to design camera systems to meet the safety needs of several industries. -
Page 4: Think Safety First
THINK SAFETY FIRST Verity products are intended to be installed as a supplement, and our observation systems and/or products are not intended to be a substitute for mirrors or other standard motor vehicle equipment which may be required by law. Verity products promote improving vehicle/driver operations. - Page 5 WARNING Do not pull cables tightly and add tension to them. A drip loop is required where applicable. Do not place cables where they can be crushed in any manner. CAUTION To avoid damage to the electronic circuit, stop using this product while doing welding work to the vehicle and/or trailers.
-
Page 6: Components
COMPONENTS DVR Back Plate Dimensions 170 x 142 x 50mm Including security cover 170 x187 x 50mm Power Cable GND | Ground DC IN+ | Power Wire ACC | Ignition Hot GND | Ground wire needs to go to a chassis ground post or proper grounding location suggested by the truck OEM. -
Page 7: Placement
Placement The remote is an IR remote and the DVR needs to be in straight line sight of the DVR. If you install the DVR behind a wall or in a cabinet, the IR remote will not work. For these applications, our IR extender will allow you to place the DVR hidden behind a wall and... -
Page 8: Video | Tiggers
VIDEO | TIGGERS Video | Audio Out Camera Trigger Wires Option Trigger Wires Yellow 4-Pin: Connect to monitor Camera trigger: Needed triggers are tagged Option Trigger Wires: These will be tagged to match added options. Front Video | Audio Out Do you need to change from an RCA connect to 4-pin or BNC? Call us we... -
Page 9: Optional: Add02Cp
OPTIONAL: ADD02CP If our LED Control Panel & IR Extender is added, there is a connector on the trigger wires. Once the ADD02CP has been installed, program the DVR to accept it. Click on Click on SERIAL PERIPHERALS PWR: Power light indicates when MDVR has power. REC: Recording light indicates recording is functional. -
Page 10: Connecting Harnesses
To access, use the following: The Baud rate needs to point to “Panel.” Connecting Harnesses... -
Page 11: Metal Connector Tamper-Resistant Cover
Connecting Cameras Connect camera to the corresponding camera IN. Metal Connector Tamper-resistant Cover Security cover helps prevent tampering or damage to the cable connection on the back of the MDVR. - Page 12 REC03U DVR with Optional GPS The installation of the REC03U has one added step. The GPS antenna needs to be installed. REC03U with GPS...
- Page 13 Antenna Location The location of antenna is key to successful operations. Although, many say the “magnetic style” GPS antennas, which are the industry standard are waterproof, they are not truly waterproof in many ways. Most are only IP65 rated. FYI: IP65 (waterproof rating) is tested at 4 psi of water pressure.
- Page 14 Acceptable GPS Signal When Do I Need an External GPS Antenna? When the windshield angle prevents an upward or outward path to the satellite in the sky, some bullet proof/protective glass may also impede signals.
-
Page 15: Warranty
WARRANTY Verity ® A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship on Verity systems. - Page 16 Technical Support A service ticket can be filled out online to supply the quickest service. The service ticket can be easily found on our website www.verityrvs.com or use the code to the right. Please have the serial number, which is found on the top of the DVR, when contacting the service department.
