SIL MICRO TG60 Q
S
G
UICK
ETUP
UIDE
This guide will cover all the necessary steps to quickly configure, install and troubleshoot the
SilverNet MICRO TG60. It will be split into 3 sections: Installation, Configuration and
Common Problems.
F
G
IRST
LANCE

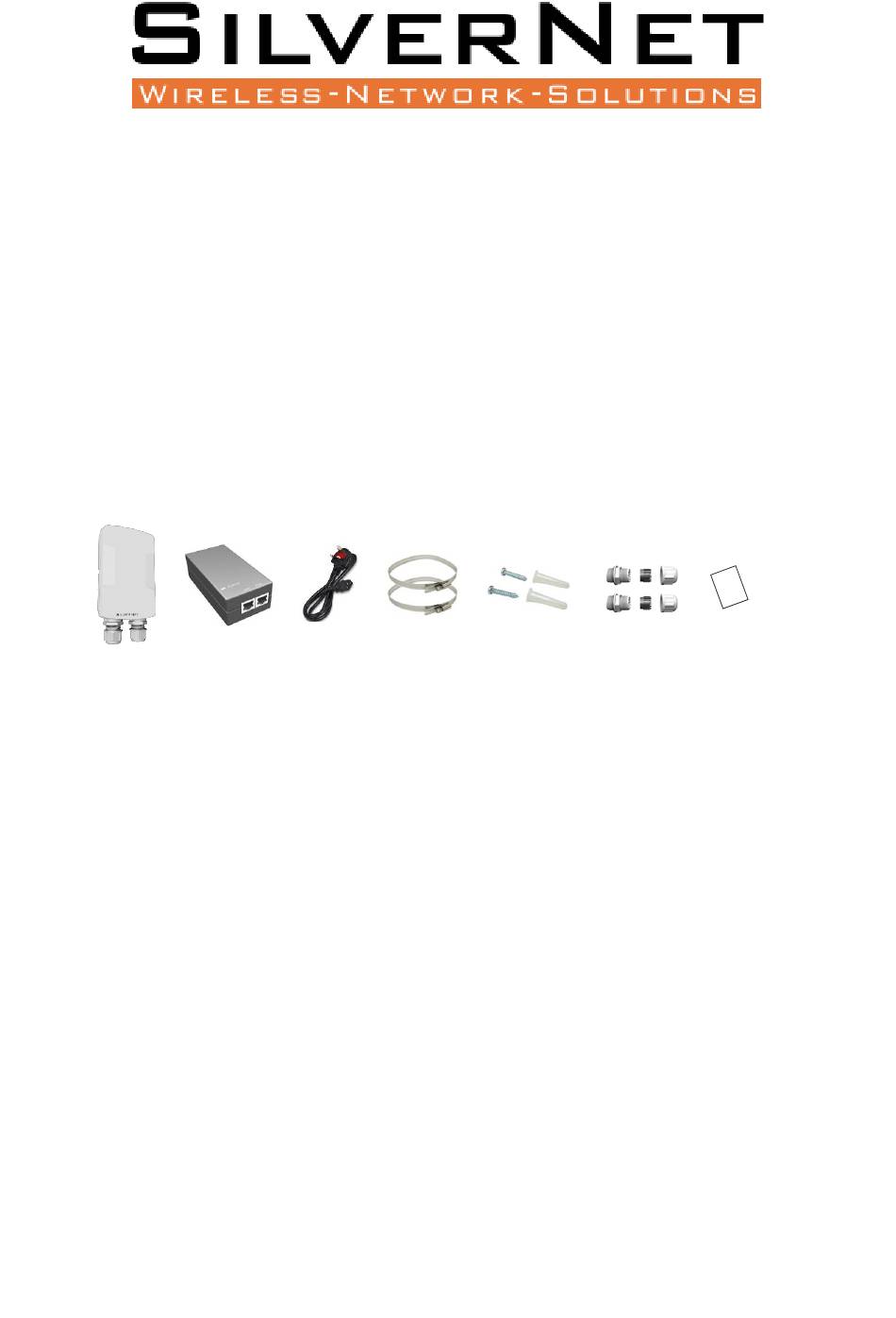

Before beginning to install a link, you must ensure all the necessary equipment is in the box.
Please see below for package contents:
The box should contain the following: 1x Radio, 1x PoE Injector, 1x IEC C5 Power Cable, 1x
Steel-Band Clamps for Pole Mounting (3" Diameter Max), 2x Screws with Nylon Expansion
Plugs for Wall Mounting, 2x Cable Glands, 1x Quick Start Guide.
V1.0
www.silvernet.com
Advertisement
Related Manuals for SilverNet SIL MICRO TG60
Summary of Contents for SilverNet SIL MICRO TG60
- Page 1 UICK ETUP UIDE This guide will cover all the necessary steps to quickly configure, install and troubleshoot the SilverNet MICRO TG60. It will be split into 3 sections: Installation, Configuration and Common Problems. IRST LANCE Before beginning to install a link, you must ensure all the necessary equipment is in the box.
- Page 2 60G: On (60GHz Wireless Link Established), Blinking (Activity). 3 Grounding Screw For ground wire connection. 4 LAN Port Provides LAN Connectivity only. 5 Uplink PoE Port Receives PoE Input from PoE Device and LAN Connectivity. SIL MICRO TG60 Quick Setup Guide...
-
Page 3: Installation
1: G MICRO TG60 ROUND THE Ground the SIL TD60G by connecting a ground wire to the grounding point as shown above to a nearby earth ground. SIL MICRO TG60 Quick Setup Guide... - Page 4 This port is capable of receiving PoE Input and LAN Traffic. Be sure to also install the included weatherproof cable gland as shown above. Optional: Using the LAN port, connect to a local LAN host. Be sure to also install the included cable gland on this port as well. SIL MICRO TG60 Quick Setup Guide...
- Page 5 Firstly, feed the steel-band clamp through the pole mount bracket points on the back of the MICRO TG60 as shown above and lightly fasten them around the pole. Next, align your MICRO TG60 with its partner radio. Once a good signal has been established, tighten the clamps securely. SIL MICRO TG60 Quick Setup Guide...
- Page 6 Begin by drilling two holes in the wall for the included expansion plugs. Insert the expansion and both screws into the holes. Align the MICRO TG60 mounting plate with the screws and then slide the radio down until it snaps into its secured position. SIL MICRO TG60 Quick Setup Guide...
- Page 7 RECISION RACKET OUNTING PTIONAL Two optional extra precision brackets (ordered separately) are designed for wall and pole mounting and provide additional degrees of movement for antenna alignment. SIL MICRO TG60 Quick Setup Guide...
- Page 8 LEDs on the back of the radio. The Uplink (PoE) LED should blink slowly during boot-up. Once the radio is fully powered and idling, the LED will remain static or intermittently blink on traffic. SIL MICRO TG60 Quick Setup Guide...
- Page 9 Password: password Once logged in, you will need to configure your link. Please note that you only need to configure the Link settings in one end of the link. The partner radio will automatically connect. SIL MICRO TG60 Quick Setup Guide...
- Page 10 Step 2: Navigate to “Network > Interfaces”. If configuring the client radio, simply leave the radio on “Client Mode” and input your designated IP address then click “Save and Apply”. Once this has been set, your client radio is fully configured. SIL MICRO TG60 Quick Setup Guide...
- Page 11 Step 2a: If you are configuring your AP radio, change the “Operation Mode” to “Base Station Mode” and input your designated IP address & click “Save and Apply”. Step 3 (only applicable to AP radio): Navigate to “Network > Radio Configuration”. SIL MICRO TG60 Quick Setup Guide...
- Page 12 Step 4a: Once your partner radio appears within this scan window, simply select it by highlighting the tick box and click “Add Selected as Links”. Once this has been done, your partner radio should appear as below. Click “Save and Apply”. SIL MICRO TG60 Quick Setup Guide...
- Page 13 Step 5: To verify a full connection, navigate to “Status > Link Status”. This will display your current partner radio as well as some useful RF statistics such as Channel, RSSI, Tx Power etc. SIL MICRO TG60 Quick Setup Guide...
-
Page 14: Common Problems
Ensure that the PoE is plugged in and that the LEDs are on. We recommend the use of surge protection and always the use of shielded outdoor data cables for all equipment. SIL MICRO TG60 Quick Setup Guide... - Page 15 Upload the 0.228 config onto one radio and the 0.229 config onto the other. h) Manual – Read the manual for detailed explanations of the SilverNet equipment. This can be downloaded from our website.
