E
P
CHO
OINT

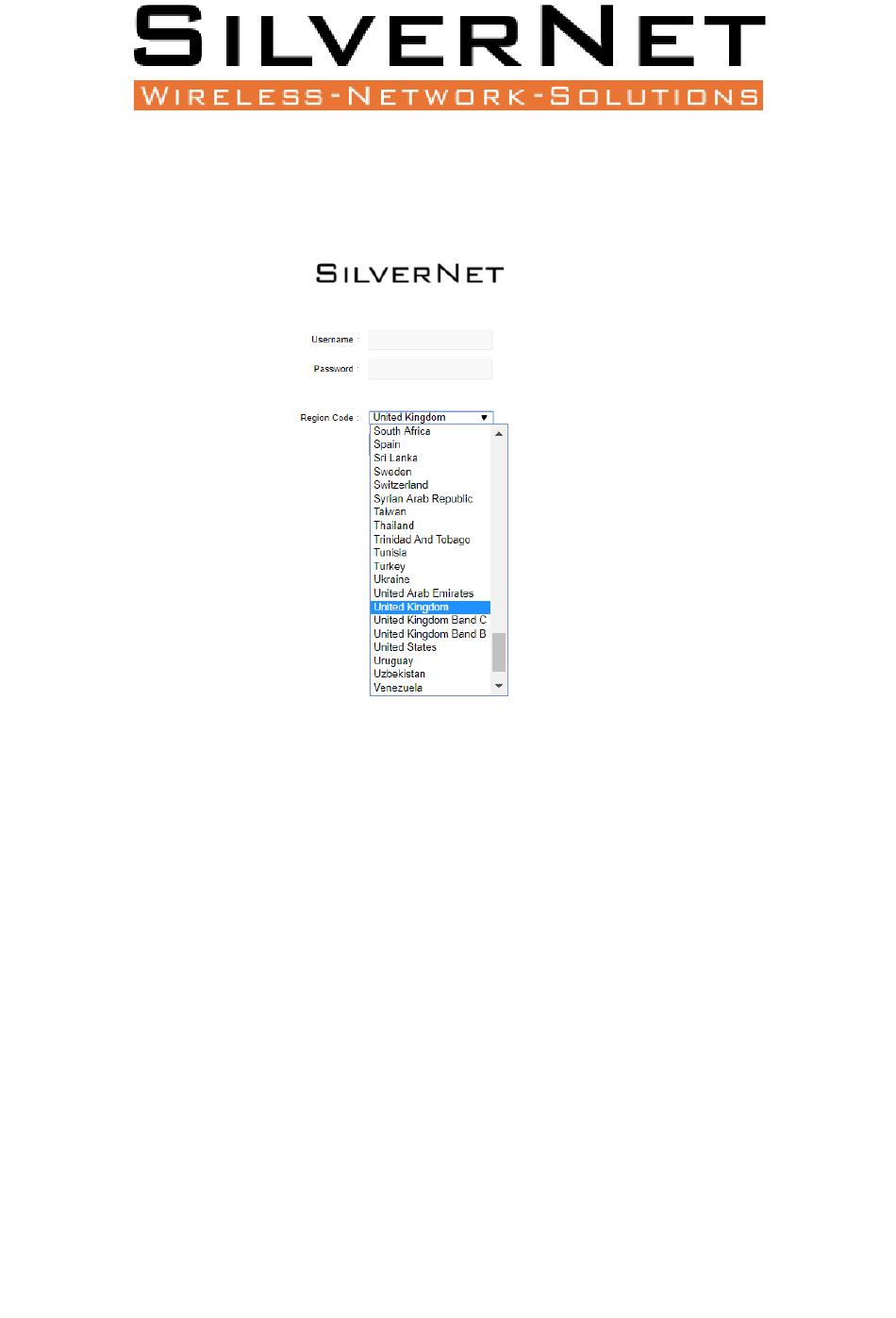

When logging onto your radio for the first time ensure that you choose the correct country
code for your region. This is to ensure that your countries regulations are followed.
NOTE:
•
Band B offers channels between 5500 to 5700 with a max 30dB output power,
however, note that some channels have longer wait times due to the weather radar.
•
Band C offers channels between 5745 and 5805 with a max 36dB output power,
however, note that there is a license to use this within the UK of £50 per annum for
up to 50 devices and £1 per device thereafter.
For the purpose of this guide we will be choosing UK Band B.
Firmware Version: ECHO_v1.0.0346_SilverNet.bin
V1.1
-
-P
TO
OINT OPTIMUM SETTINGS GUIDE
V1.1
www.silvernet.com
Advertisement
Table of Contents
Related Manuals for SilverNet ECHO Series
Summary of Contents for SilverNet ECHO Series
- Page 1 UK of £50 per annum for up to 50 devices and £1 per device thereafter. For the purpose of this guide we will be choosing UK Band B. Firmware Version: ECHO_v1.0.0346_SilverNet.bin V1.1 www.silvernet.com...
- Page 2 PTIMUM ADIO ETTINGS Note: Ensure that before starting your browser is not using any autofill settings as some fields are recognised and auto filled with irrelevant information. If your ECHO link is misbehaving or not storing settings, then factory reset the radio back to 192.168.1.2 and reconfigure from fresh.
- Page 3 Auto Adjust EIRP Limit: Tick this box to set the antenna gain. Antenna Gain: This should be set correctly so the device knows what size antenna is attached to it and can adjust the Tx Power to work correctly with DFS. If the Antenna gain is set to 0 the unit will be more sensitive to DFS causing the channel to change when radar is detected.
- Page 4 PTIMUM DVANCED ETTINGS Note: For optimum configuration, most of these settings can be left as they are and as such will not be listed within the purpose of this guide. Fix Noise Floor: This is an anti-interference setting which stops the radio from being overly sensitive to noise and changing channels when not necessary.
- Page 5 Adjacent Channel Interference 1 + 2: This reduces the sensitivity of equipment within close proximity that is on adjacent channels close to the APWDS. Valid input range is 0-30. This value also cannot be lower than the lowest client’s RSSI. Note: We suggest keeping this value 5dB lower than the lowest client’s RSSI.
- Page 6 PTIMUM IRELESS ETTINGS Wireless Availability: Set this to enable. Hide SSID: Set this according to your needs. However, we recommend leaving this disabled. SSID: This needs to be the same in both ends of the link. Set as according to your needs. SSID Charset, VLAN, MAC Filter and Multicast Optimisation can all be left as they are.
- Page 7 PTIMUM ETWORK ETTINGS Vlan Interface: Click edit to change the IP address of your unit and below tab will appear. Select from Static, DHCP and None. Static allows you to set an IP address that you want the device to use. DHCP allows you to set a fall-back IP in case a DHCP server is not present. Note: The device is set to DHCP by default.
- Page 8 PTIMUM YSTEM ETTINGS Ping Watchdog: Tick this to enable Ping Watchdog. Ping Watchdog allows you to set an IP address for the device to ping. If the device cannot ping the IP address within certain time (set out in the parameters) then it will reboot the wireless card first and try to re-establish a connection.
