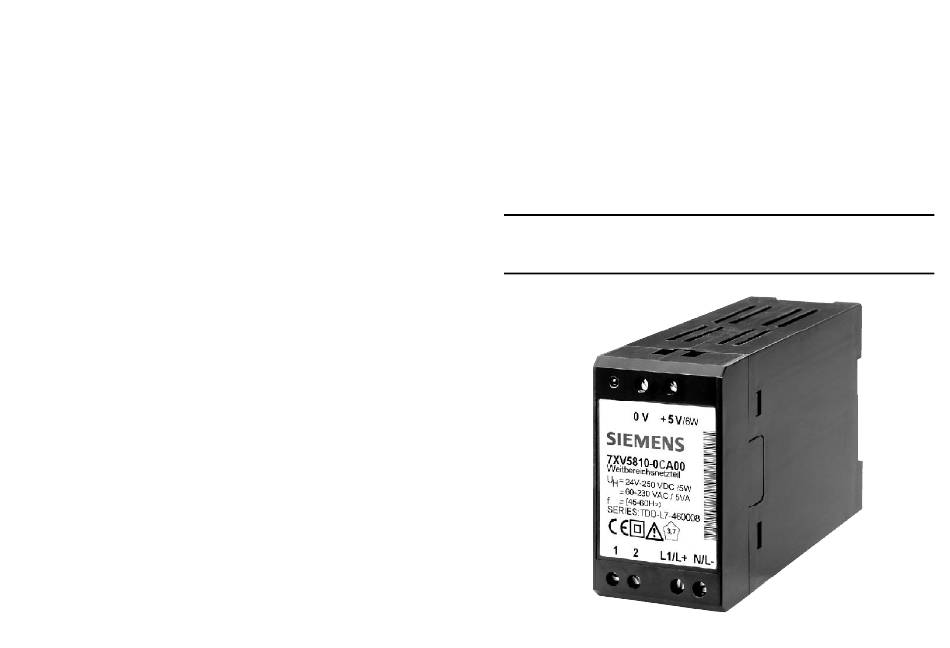

Wide-range Power Supply Unit
7XV5810-0CA00
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7XV5810-0CA00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Siemens 7XV5810-0CA00

  • Page 1 Wide-range Power Supply Unit 7XV5810-0CA00 Operating Instructions...
  • Page 2: Table Of Contents

    For further information or if special problems should arise, which are not treated precisely enough in this document, please contact your local Siemens office or send your request directly to the address stated on the last page of this manual.
  • Page 3 QUALIFIED PERSONNEL Explanation of the symbols: In case of tampering with the device/system or disregard of the warnings given in this manual severe bodily injuries or considerable property Read the documentation. damage can occur. Only appropriately qualified personnel may mesh with this device/system.
  • Page 4 The device must be operated only within the scope of its intended use of danger are categorized as follows: according to these operating instructions and in connection with third- party equipment or compounds recommended or accepted by Siemens. Faultless and safe operation of the product require proper transport, Danger...
  • Page 5: Operating Instructions

    The output voltage is monitored and displayed via a pilot LED. If the mentioned EU guideline, paragraph 10, for competent authorities at: output voltage falls short by 10% a relay opens and the LED goes out. Siemens AG Performance Characteristics Industrial and Building Systems Group •...
  • Page 6: Scope Of Application

    1.1.2 Scope of application Description of the functional unit The Wide-range power supply unit is designed for industrial The Wide-range power supply unit inside its plastic housing is a hard- use,housing, commerce and trade and small businesses and meets wired and tested functional unit. It is provided with a clip-on mounting the following requirements: for a DIN EN 50022 top-hat rail 35 mm.
  • Page 7: In Case Of A Short-Circuit

    1.2.2 In case of a short-circuit Technical data Mechanical desing The output of the Wide-range power supply unit is short-circuit proof for Housing for top-hat rail mounting Plastic EG45-TBS (UL94-V0) with venting slots for passive cooling an unlimited amount of time. In case of a short-circuit longer than 5 Dimensions (WxHxDT) 45mm x 75mm x 105mm seconds the device must be switched off for more than 30 seconds or...
  • Page 8: Dimension Drawings

    -5°C to +55°C Storage temperature -25°C to +70°C (with factory packing) Transport temperature -25°C to +70°C 5VDC max 600mA (with factory packing) 7XV5810-0CA00 Humidity 10% to 93% Weitbereichsnetzteil (moisture condensation Series: TDD-L7-460001 not admissible) 24V-250 VDC / 5W Operating air pressure...
  • Page 9: Installation And Commissioning

    Installation and commissioning Installation • The installation location should be free of vibrations. Warning! The admissible ambient temperature (operation or functional temperature) is to be observed (see technical data). • Disregard of the temperature range required for proper function may cause malfunction and failure of the device. •...
  • Page 10: Maintenance

    Commissioning • Check whether the operation data comply with the values on the rating plate. • Do not make any changes at the device. • Clip the Wide-range power supply unit on a top-hat rail with the help of the clip-on mounting. •...
  • Page 11 If you have any notes or questions on this product please contact us under the following address: Siemens AG Power Transmission and Distribution Group Division Protective and Substation Control Systems PO Box 4806 D-90026 Nuremberg Phone (0911) 433-7028 (0911) 433-8301 Order No.:...
