Assembly Instructions
Instrucciones de Montaje

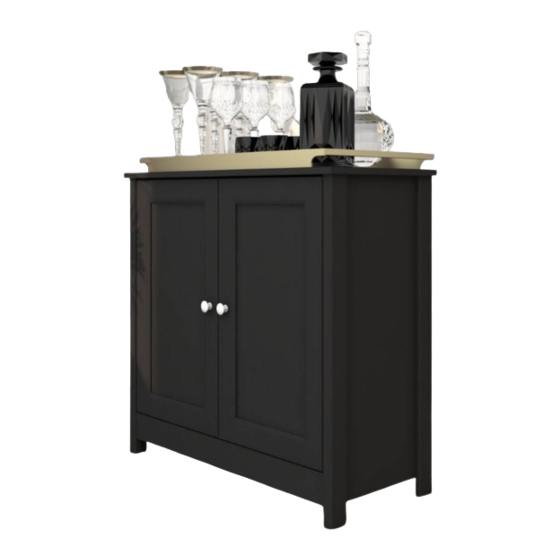

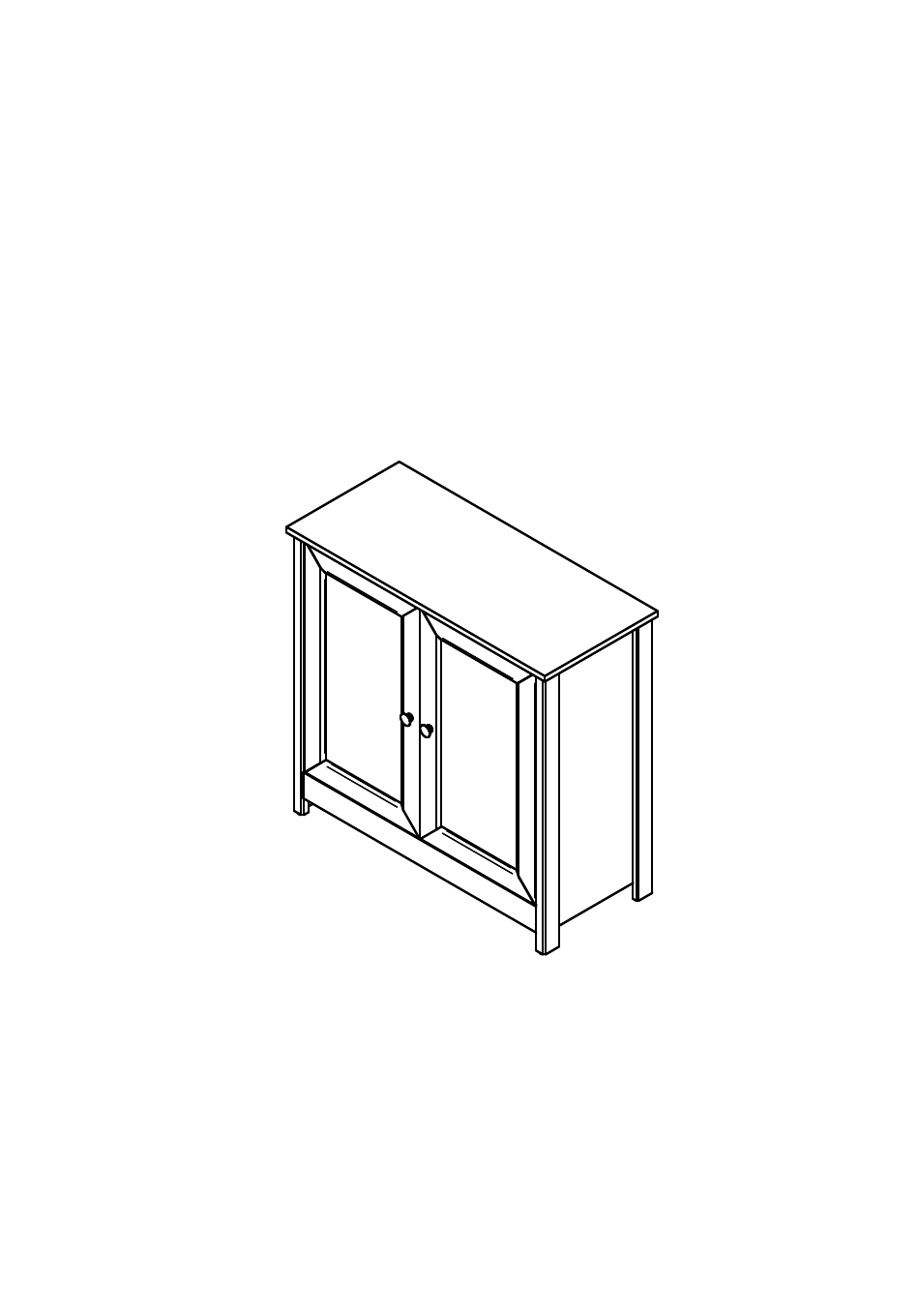

2-DOOR ACCENT CABINET
ARMARIO 2 PUERTAS
R-620 BE
Special Notes:
01 - Examine carefully all parts of the furniture before starting the work.
02 - It is recommended to assemble the furniture as this assembly manual, if in doubt contact the company.
03 - The assembler has the responsibility of following the instructions of the Assembly Manual, which are essential to insure the
furniture structure.
Notas especiales:
01 - Examine cuidadosamente todas las partes del mueble antes de comenzar el trabajo.
02 - Se recomienda montar los muebles como este manual de montaje, en caso de duda contactar con la empresa.
03 - El montador tiene la responsabilidad de seguir las instrucciones del Manual de Montaje, que son esenciales para asegurar la
estructura del mueble.
Advertisement
Related Manuals for Bertolini R-620 BE
Summary of Contents for Bertolini R-620 BE
- Page 1 Instrucciones de Montaje 2-DOOR ACCENT CABINET ARMARIO 2 PUERTAS R-620 BE Special Notes: 01 - Examine carefully all parts of the furniture before starting the work. 02 - It is recommended to assemble the furniture as this assembly manual, if in doubt contact the company.
- Page 2 ASSEMBLY INSTRUCTIONS IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR PRODUCT PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT use this item if any parts are missing, damage or worn. DO NOT use this item unless all fixings are secured. Please keep small parts out of reach of children.
- Page 3 PART LIST/LISTA DE PIEZAS Nº DESCRIPTION/DESCRIPCIÓN DIMENSION(mm) 01 Right Side / Lateral Derecha 745 x 339 x 29 02 Left Side / Lateral Izquierda 745 x 339 x 29 03 Top / Tabla 801 x 350 x 15 04 Base / Base 318 x 724 x 15 05 Baseboard / Zócalo 724 x 70 x 15...
- Page 4 HARDWARE LIST / LISTA DE MATERIALES DESCRIPTION / DESCRIPCIÓN Wood Dowel / Clavija Cam Bolt / Tornillo minifix Screw / Tornillo Cam Lock / Tambor Minifix Screw / Tornillo Screw / Tornillo Hinge / Bisagra Nail / Clavo Screw / Tornillo Metalic Angle / Soporte Backstop / Batente Profile / Perfil...
- Page 5 ATTENTION ON HARDWARE (B): Screw in slowly until the dotted line is inside the part. This hardware (B) is not removable. If removed, it real size could damage the part.
- Page 6 ATTENTION ON HARDWARE (C): Slowly screw until it locks itself, do not use excessive force. ATTENTION ON HARDWARE (C): Slowly screw until it locks itself, do not use excessive force.
- Page 7 22 Lbs 11 Lbs 22 Lbs...
- Page 8 Screw for adjustements WARNING: Risk of crush injury or death, secure to the wall using parts provided. Do not store heavy items on top as this can cause the product to topple. Step 1: Fix the 135° bracket (D) on the back of the furniture, using a furniture screw (E).
