Pacific Floorcare SCE-20 Parts & Operation Manual

Self-contained extractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model: SCE-20
98082710
11/22/22

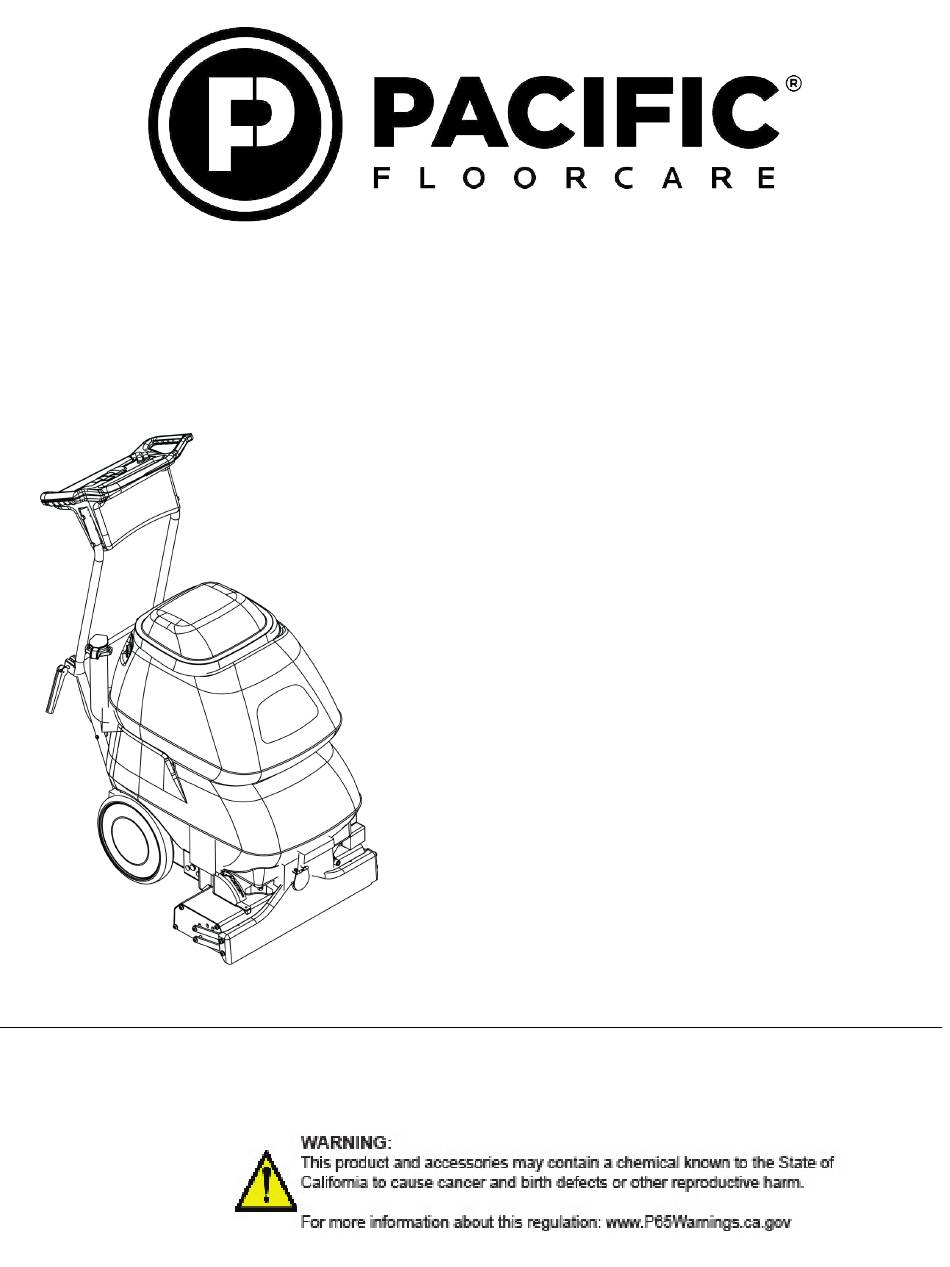

SCE-20
Self-Contained Extractor
Parts & Operations Manual
This operator's book has important information for the
use and safe operation of this machine. Read this book
carefully before starting the machine. Keep this book and
tell all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage
equipment, furniture or buildings.
For new books, please download your copy from our
website www.pacificfloorcare.com or write to:
Pacific Floorcare
2259 S. Sheridan Drive
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is
no concealed freight damage. If such damage is
discovered, file a "CONCEALED DAMAGE REPORT"
immediately with the delivering carrier.
The contents of this manual are based on the latest
product information available at the time of
publication.
Pacific reserves the right to make changes or
improvements without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCE-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Pacific Floorcare SCE-20

Summary of Contents for Pacific Floorcare SCE-20

  • Page 1 “CONCEALED DAMAGE REPORT” immediately with the delivering carrier. The contents of this manual are based on the latest product information available at the time of publication. Pacific reserves the right to make changes or improvements without notice. Model: SCE-20 98082710 11/22/22...
  • Page 2 MACHINE DATA LOG/OVERVIEW Model: Date of Purchase: Serial Number: Sales Representative: Address: Phone Number: SCE-20 C 9.808-371.0...

  • Page 3: Table Of Contents

    Troubleshooting Chart.......... 4-5 Suggested Spare Parts/Notes ......4-6 SPARE PARTS Frame..............5-1 Brush..............5-3 Pump ..............5-5 Vacuum Shoe ............5-7 Control Panel ............5-9 Solution Tank……………………………………….5-11 Recovery Tank……………………………………..5-13 Suggested Spare Parts……………………………5-17 Wiring Diagram…………………………………….5-16 SCE-20 C 9.808-371.0...

  • Page 4: How To Use This Manual

    KIT INSTRUCTIONS which came with the kit. It contains replacement parts numbers needed for ordering future parts. NOTE: The number on the lower left corner of the front cover is the part number for this manual. SCE-20 C 9.808-371.0...

  • Page 5: Important Safety Instructions

    Turn off all controls before unplugging. Do not operate this machine near flammable fluids, dust or vapors. Maintenance and repairs must be done by qualified personnel. If foam or liquid comes out of machine, switch off immediately. SAVE THESE INSTRUCTIONS SCE-20 C 9.808-371.0...
  • Page 6 L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié. Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement. CONSERVER CES INSTRUCTIONS SCE-20 C 9.808-371.0...

  • Page 7: Hazard Intensity Level

    Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use manufacturer approved replacement parts. SCE-20 C 9.808-371.0...
  • Page 8 LORS DE L’ENTRETIEN DE LA MACHINE : Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées Windsor homologuées. SCE-20 C 9.808-371.0...

  • Page 9: Grounding Instructions

    à la terre de votre prise murale. Ne screw. modifiez pas la fiche fournie avec l'appareil : si elle ne correspond pas à la prise murale, faites installer une prise adéquate par un électricien qualifié. Utilisez-le uniquement sur des réceptacles protégés GFCI. SCE-20 C 9.808-371.0...

  • Page 10: Technical Specifications

    HEIGHT: 43” (110 cm) SOLUTION CAPACITY: 9 gallons (34 ltr) WIDTH: 21” (53 cm) RECOVERY CAPACITY: 10 gallons (37.8 ltr) SOLUTION SPRAY: 2 quick change jets. BRUSH SPEED: 1000 rpm POWER CABLE: 50’ (12.7 m) (14 gauge) SCE-20 C 9.808-371.0...

  • Page 11: Controls/Component Location

    7. Brush Motor Circuit Breaker. 6 amp. Breaker protecting brush motor. 8. Vacuum Motor Circuit Breaker. 15 amp. Breaker protecting vacuum motor. 9. Recovery Dump Hose. Facilitates draining dirty cleaning solution. 10. Solution Dump Hose. Facilitates draining excess cleaning solution from solution tank. SCE-20 C 9.808-371.0...
  • Page 12 4. Recovery Tank. Used to collect dirty cleaning solution. 5. Solution Tank. Used to hold cleaning solution. 6. Recovery Tank Dome. 7. Vacuum Shoe. 8. Brush Housing. 9. Front Lifting Handle. 10. Cleaning Solution Filter. 11. Solution Tank Fill Hose. SCE-20 C 9.808-371.0...
  • Page 13 CONTROLS/COMPONENT LOCATIONS 1. Solution Intake Cover. 2. Vacuum Intake Cover. 3. Float Shut-Off. 4. Clean-Out Opening. 5. Pour Spout. 6. Lift Handle. SCE-20 C 9.808-371.0...

  • Page 14: Filling Operation

    STEP CHEMICALS Suitable Chemicals Non-Compatible Chemicals Alkalis Aldehydes Detergents Aromatic Hydrocarbons Hydroxids SP Butyls Soaps Carbon Tetrachloride Vinegar Clorox* Chlorinated Bleaches Chlorinated Hydrocarbons Lysol* Methyl Ethel Ketone (MEK) Perchorethylene (perc) Phenolics Trichlorethylene D-Limonene * Product Trademark Names SCE-20 C 9.808-371.0...

  • Page 15: Operations

    1/8in prevent damage to motor or carpet. (3mm) CORRECT INCORRECT STEP Turn on brush and vacuum motor switches ("ON"="I"). Turn on solution switch for continuous spray or set switch to intermittent to allow use of trigger switches. SCE-20 C 9.808-371.0...
  • Page 16 The continuous setting allows the operator to set the switch in the "on" position with one touch, and is typically used in large SCE-20 C 9.808-371.0...

  • Page 17: Cleaning Procedure

    Large amounts of water or foam entering the vacuum system can damage the vacuum motor. If you notice either condition, shut down the machine immediately. Empty recovery tank and/or add defoamer to recovery tank. VACUUM INTAKE COVER SCE-20 C 9.808-371.0...
  • Page 18 To speed drying, use a AB84 fan. Empty recovery tank by releasing dump STEP hose. Use a hose with cold water to clean out the recovery tank. Also drain solution tank after each use. RECOVERY DRAIN SOLUTION DRAIN SCE-20 C 9.808-371.0...

  • Page 19: Accessory Tool Usage

    Turn on vacuum motor switch and set STEP solution switch to intermittent position. NOTE: Be sure brush switch is in off position and brush is in storage position. STEP Squeeze handle on accessory tool to begin cleaning. 3-10 SCE-20 C 9.808-371.0...

  • Page 20: Maintenance

    Check cooling air screen (located on frame behind left wheel) for lint or debris. Check float and shut-off screen and clean as necessary. NOTE: Always store machine with brush in “Store” position. SCE-20 C 9.808-371.0...
  • Page 21 Spring inside brush housing will damage motor if brushes are allowed to wear away completely. [9.5 mm] Periodically check the length of the carbon brushes. Replace both carbon brushes when either is less than 3/8" (9.5mm) long. SCE-20 C 9.808-371.0...

  • Page 22: Solution Pump Replacement

    Remove solution hoses from fittings in pump. Remove the (2) screws that fasten the pump to the frame. Reverse process to install pump. PUMP REPLACEMENT KITS SHURFLO 100 PSI Switch Asm Pump Head Replacement Bypass Valve Asm Diaphragm SCE-20 C 9.808-371.0...

  • Page 23: Belt Replacement

    6. Remove the (3) screws that fasten the side plate 260101- 260014 260106 to the brush housing to remove belt. NOTE: All components associated with driving the brush will come out with the side plate. 7. Reverse process to install belt. SCE-20 C 9.808-371.0...

  • Page 24: Troubleshooting Chart

    Solution filter clogged. filter. Faulty solenoid. Call for service. Brush Does Not Spin Brush switch off. Turn on brush switch. Brush circuit breaker tripped. Reset circuit breaker. Brush belt broken. Replace as necessary. Faulty brush motor. Call for service. SCE-20 C 9.808-371.0...

  • Page 25: Suggested Spare Parts

    BELT, 180J6 MICRO-V Brush Assembly 260080 JET BODY, MINI PROMAX BODY Pump 260051 JET, MINI PROMAX 9504 Pump 260051 FLOAT, SHUT-OFF Recovery Tank 260043 DOME, S/C EXTRACTORS Recovery Tank 260173 STRAINER, 3/8 IN. NPT 60 MESH Solution Tank SCE-20 C 9.808-371.0...
  • Page 26 NOTES SCE-20 C 9.808-371.0...
  • Page 27 FRAME ASSEMBLY SCE-20 C 9.808-371.0...
  • Page 28 10" HEAT SHRINK, 3/4 ID UL/CSA 260161 SEAL, FRAME/TANK 260024 CLAMP, 7/16 DIA NYLON UL 260026 CLAMP, 2.0" WORM GEAR 260140 SCREW, 10-24 X .5 SCHCS SS 260133 SCREW, 1/4-20 X 1 PHPNHMS SS 260111 PIN, ROLL 1/8 X 1 SS SCE-20 C 9.808-371.0...
  • Page 29 BRUSH ASSEMBLY SCE-20 C 9.808-371.0...
  • Page 30 RING, 1/2 EXT. SNAP 260108 PIN, CLEVIS 1/4 X 1/2 PLTD 260109 COTTER, 1/4" RING 260165 SPACER, .81 X 1.06 X .125 PULLEY ASM, BRUSH DRIVER ASM, BRUSH BRUSH ASM, 18 IN 260001 ADAPTER BRUSH BRG DIE CAST SCE-20 C 9.808-371.0...
  • Page 31 PUMP ASSEMBLY SCE-20 C 9.808-371.0...
  • Page 32 ELBOW, 1/8 NPT STREET 260203 WIRE, 22" GRN/18 76011 X 76011 260064 HOSE, 3/8 URETHANE X 29" 260065 HOSE, 3/8 NYLON X 6" 260063 HOSE, 1/4 URETHANE X 6" 260126 SCREEN, INTAKE 260066 HOSE, 3/8 ID NYL11 YLW X 29” SCE-20 C 9.808-371.0...
  • Page 33 VACUUM SHOE ASSEMBLY SCE-20 C 9.808-371.0...
  • Page 34 SCR, 1/4-20 X 1 FHCS PLTD 260164 SPACER, 3/8ODX.058WX.2814,CRS 260185 VAC SHOE, 18" 260169 SPRING, EXT .38D X2.75L X.055W 260194 WASHER, 1/4 ID X 5/8 OD SS 260195 WASHER, WAVE 3/8ID X3/4D X.125 260154 GASKET, ACCESSORY PORT SCE-20 C 9.808-371.0...
  • Page 35 CONTROL PANEL ASSEMBLY SCE-20 C 9.808-371.0...
  • Page 36 SWITCH, SPST 2-POSITION ROCKER 260107 PAINT SPACER .50 ODX.058WX9.84L 260172 STRAIN RELIEF,STRT,LQ TITE 3200,(876029) 260183 TRIGGER, SWITCH 260082 LABEL CONTROL PANEL SCE-20 260099 NUT, 6-32 W/STAR WASHER PLTD 260093 NUT, 1/4-20 HEX NYLOCK SS 260110 PIN, ROLL 1/8" X 5/8"L 260004...
  • Page 37 SOLUTION TANK ASSEMBLY 5-11 SCE-20 C 9.808-371.0...
  • Page 38 WASHER, 1/4 LOCK EXT STAR SS 260137 SCR, #10 X 3/4 PPHST TYPE B 260113 Pivot Handle Weldment ADM8 260093 NUT, 1/4-20 HEX NYLOCK SS 260067 HOSE ASSY- FILL HOSE 260025 CLAMP, 1/4 ID HOSE 260072 HOSEBARB, 1/2MPT X 3/8 DL SCE-20 C 9.808-371.0 5-12...
  • Page 39 RECOVERY TANK ASSEMBLY 5-13 SCE-20 C 9.808-371.0...
  • Page 40 HOSE, 1.5 X 12.0 DRAIN 260069 HOSE, INSERT 260071 HOSE CAP 260137 SCR, #10 X 3/4 PPHST TYPE B 260043 DOME ASM 260019 BRKT, HOSE HOOK 260037 CORD, 99807 1/8 X 12" 260086 LABEL, WARNING 260084 LABEL LOGO BLUE SCE-20 5-14 SCE-20 C 9.808-371.0...
  • Page 41 JET, MINI PROMAX 9503 260154 GASKET, ACCESSORY PORT 260015 BREAKER, 15A 250VAC 50VDC 260016 BREAKER, 6A VDE CIRCUIT 260177 SWITCH, SPST 2-POSITION ROCKER 260176 SWITCH, DPDT3-POSITION ROCKER 260173 STRAINER, 3/8 IN. NPT 60 MESH 260051 FLOAT SHUT-OFF 5-15 SCE-20 C 9.808-371.0...

  • Page 42: Wiring Diagram

    WIRING DIAGRAM SCE-20 C 9.808-371.0 5-16...
  • Page 43 Parts list, it is referring to the serial numbers with the corresponding Ref number in this Serial number List. The serial number indicates the first machine the part number is applicable to. The main illustration shows the most current design of the machine. When a boxed illustration is shown, it displays the older design. 5-17 SCE-20 A 9.808-371.0...
