AM-15
15 GALLON MISTER
PARTS & OPERATING MANUAL
Thank you for purchasing a Pacific Floorcare product. Carefully inspect all components for freight damage. If such
damage is discovered, file a "CONCEALED DAMAGE REPORT" immediately with the delivering carrier.
Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure
to follow the instructions may result in injury or damage to equipment and property.
The contents of this manual are based on the latest product information available at the time of publication. Pacific
Floorcare reserves the right to make changes or improvements without being obliged to apply changes to the machines
previously sold.
New manuals can be downloaded from:
www.pacificfloorcare.com/manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM-15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pacific Floorcare AM-15

  • Page 1 15 GALLON MISTER PARTS & OPERATING MANUAL Thank you for purchasing a Pacific Floorcare product. Carefully inspect all components for freight damage. If such damage is discovered, file a “CONCEALED DAMAGE REPORT” immediately with the delivering carrier. Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure to follow the instructions may result in injury or damage to equipment and property.
  • Page 2 15 GALLON MISTER SPECIFICATIONS Power Requirements 120 Vac at 60 Hz, 8.5 A (GFCI protected outlet) Power Cable Length 9 Ft. Noise Level (dBA) Machine Weight 90 Lbs. Liquid Temperature Range 40-100° F (4.4-37° C) Chemical Compatibility Chemical products used with this equipment must be formulated for the type of application and compatible with this unit’s materials and pump seals.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION �����������������������������������������������������������������������������������������������������������������������������������1 MACHINE OVERVIEW ��������������������������������������������������������������������������������������������������������������������������������������2 ASSEMBLY ������������������������������������������������������������������������������������������������������������������������������������������������������������4 OPERATION ����������������������������������������������������������������������������������������������������������������������������������������������������������5 MACHINE USE .............................5 AFTER USE INSTRUCTIONS ........................6 TROUBLESHOOTING GUIDE ��������������������������������������������������������������������������������������������������������������������������7 PARTS ���������������������������������������������������������������������������������������������������������������������������������������������������������������������8 BACK PANEL ..............................8 MACHINE - FRONT .............................9 MACHINE - REAR ............................10 WAND ASSEMBLIES ..........................11 WARRANTY ��������������������������������������������������������������������������������������������������������������������������������������������������������13...
  • Page 4: Safety Information

    SAFETY INFORMATION Warning: People or objects can be hurt or damaged if this unit is not used correctly� Warning: Failure to read all the instructions before operating the unit may result in personal injury or death from the improper use of the chemical solution. Anyone handling, operating or using the unit must read, and understand, the instructions in the manual.
  • Page 5: Machine Overview

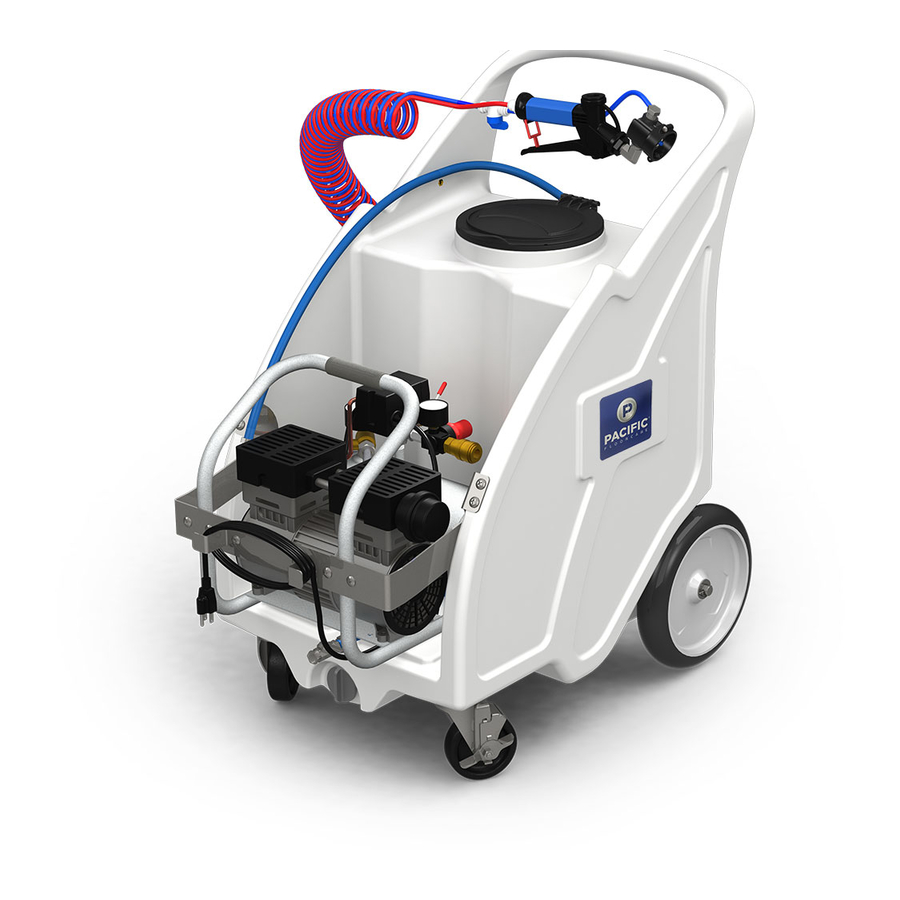

    MACHINE OVERVIEW (Page 1 of 2) Hinged Back Plate Pump w/ Santoprene seals Air Regulator Air Pressure Gauge Quick Disconnect Fitting w/ Check Valve Suction Line Valve In-Line Strainer Drain Plug Air Compressor Bracket 120 VAC Air Compressor Tank Air Supply Line 25 Ft.
  • Page 6 MACHINE OVERVIEW (Page 2 of 2) Standard PSG-N130 Wand Assembly Air Inlet Valve 1/4 In. Bulkhead Fittings Suction Line Valve Extended MGA-RAC-N130 Wand Assembly RETURN TO TABLE OF - 3 - CONTENTS...
  • Page 7: Assembly

    ASSEMBLY 1. Unpackage all components and discard all packaging. 2. Place the compressor and pre-assembled compressor bracket into the mounting cavity. 3. Align the holes on the compressor bracket with the holes on the tank. 4. Secure the compressor bracket to the tank using the supplied hardware. 5.
  • Page 8: Operation

    OPERATION MACHINE USE 1. Follow all instructions from the chemical manufacturer and fill the tank with a ready-to-use solution or mix to the chemical manufacturer instructions. Caution: Do not spill the solution onto the air compressor. 2. Plug the unit in to a 120 VAC GFCI protected power outlet.
  • Page 9: After Use Instructions

    AFTER USE INSTRUCTIONS 1. Flush the unit with fresh water for 5 minutes. 2. Shut off the air supply to the unit by closing the air inlet valve on the back plate. 3. Turn the power switch OFF to shut off the air compressor.
  • Page 10: Troubleshooting Guide

    TROUBLESHOOTING GUIDE MACHINE TROUBLESHOOTING ISSUE SOLUTION Air passes through the pump If air passes through the pump (687001) without cycling, the pump needs to be without cycling replaced. The solution backs up into the If solution backs up into the air regulator, the check valve (683302) needs to be air regulator replaced.
  • Page 11: Parts

    PARTS BACK PANEL ITEM PART NUMBER DESCRIPTION 687001 PUMP - SANTOPRENE SEALS W FITTINGS 687501 REGULATOR AIR W/ FILTER 683801 GAUGE DUAL SCALE MODEL 20 1.5IN 683302 FITTING CHECK QD 1/4 TUBE - 1/4 TUBE 688501 STAINER IN-LINE MESH SS 683303 FITTING HOSE ELBOW 1/4 MPT - 3/8 BARB SS 681101...
  • Page 12: Machine - Front

    PARTS MACHINE - FRONT ITEM PART NUMBER DESCRIPTION 689002 TUBE ASSY 25FT RED & BLUE 682401 COMPRESSOR AIR 120V 1HP 680801 BRACKET AIR COMPRESSOR SS 689701 WHEEL CASTER SWIVEL 5IN S.S. NON-LOCKING 689702 WHEEL CASTER SWIVEL 5IN S.S. LOCKING 686801 PLUG ASSEMBLY DRAIN 683301 FITTING AIR 1/4 MPT - PLUG BRASS PLATED...
  • Page 13: Machine - Rear

    PARTS MACHINE - REAR ITEM PART NUMBER DESCRIPTION 681501 CAP ASSEMBLY HINGED 7IN 688601 TANK 15 GAL NATURAL 689401 VALVE AIR INLET 1/4 MPT - 1/4 MPT 689703 WHEEL 10IN NON-MARKING 688802 TOOL PSG-N130 GUN ASSEMBLY RETURN TO TABLE OF - 10 - CONTENTS...
  • Page 14: Wand Assemblies

    PARTS WAND ASSEMBLIES ITEM PART NUMBER DESCRIPTION 688802 TOOL PSG-N130 GUN ASSEMBLY 685701 NOZZLE FOG 3.7 GAL/HR PFN-N130 688804 TOOL BODY PSG WAND W/ HANDLE 683305 FITTING QD 1/2 MPT X 1/4 OD TUBE 689403 VALVE SHUT OFF 1/4 TUBE ITEM PART NUMBER DESCRIPTION...
  • Page 15 ***THIS PAGE INTENTIONALLY LEFT BLANK*** RETURN TO TABLE OF - 12 - CONTENTS...
  • Page 16: Warranty

    Pacific determines that the defect is not covered by the warranty, all expenses incurred by Pacific Floorcare in connection with the replacement or repair if the machine or any parts thereof shall be at the buyer’s responsibility.
  • Page 17 REVISION REVISION LOG 2020.5.29 ADDED PART NUMBERS FOR REPLACEMENT HOSES. RETURN TO TABLE OF - 14 - CONTENTS...
