Summary of Contents for Vicoustic VicBooth R

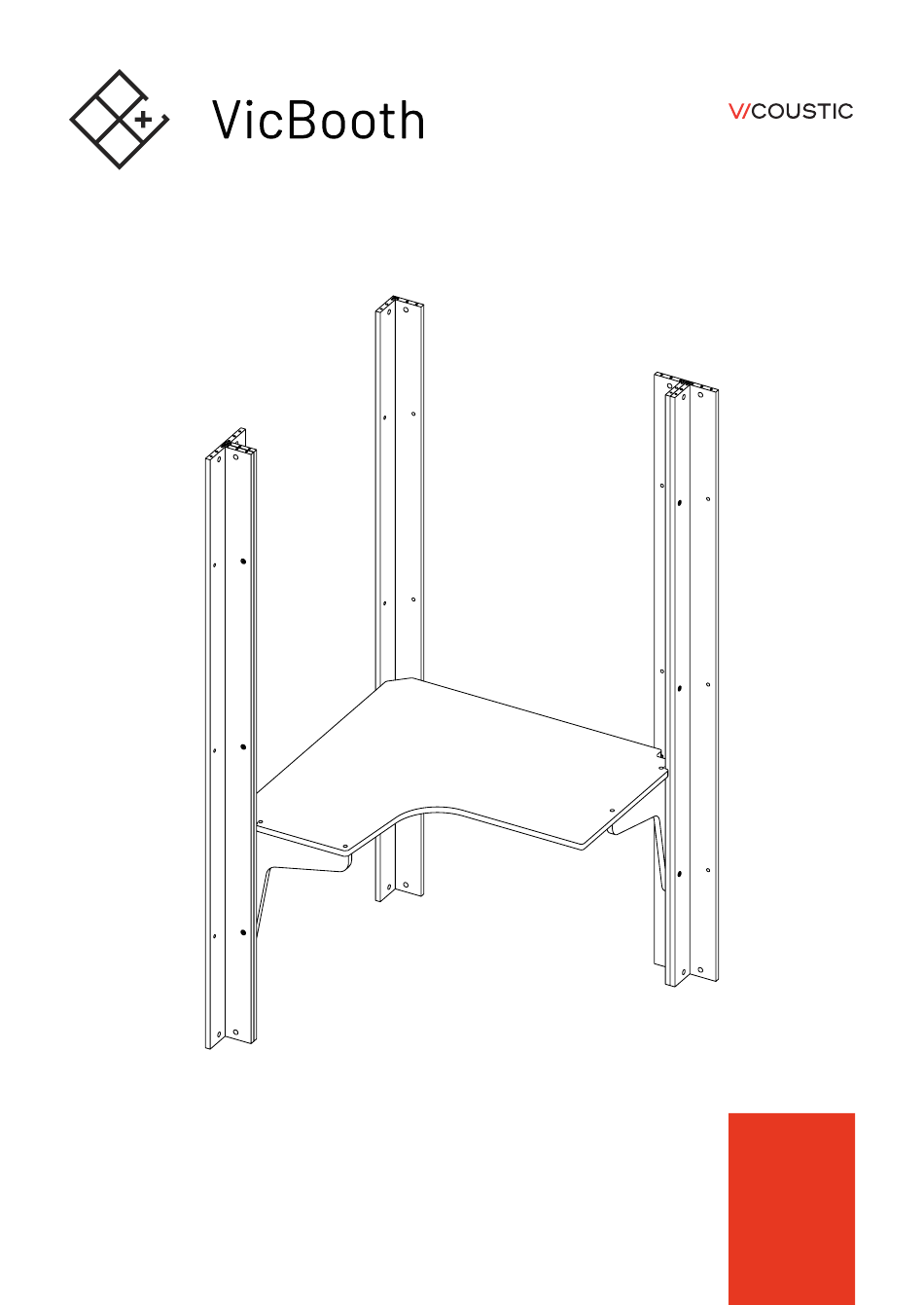

- Page 1 Installation Manual Desk Model R/L...
- Page 3 Material Needed Included Reinforcement Bar | 1 uni. Desk | 1 uni. Support bracket | 2 uni. Connection plate | 1uni. Hole covers Screws Not included Screwdriver...
- Page 4 Center the largest hole of the bracket with the flat head that is fixed on the structure. The bracket should rest against the rear part of the structure. Fix the screws with a screwdriver or electric screwdriver. Repeat the step for the other bracket. Fix the desk using the supplied screws.
- Page 5 Fix the reinforcement bar under the desk by screwing it to the structure. If you have chosen to buy two desks, join them together with the help of the connection plate supplied. Step’s Material Screwdriver ± 25mm...
- Page 6 If the desk is a right side version, the assembly will be reversed.
- Page 8 Avenida do Pólo 3, Nº 159, Carvalhosa No parts of this document might be copied and/or 4590-137 Paços de Ferreira, Portugal published without written consent of Vicoustic. Office Rua Quinta do Bom Retiro Nº 16, Armazém 9 2820-690 Charneca da Caparica, Portugal...
