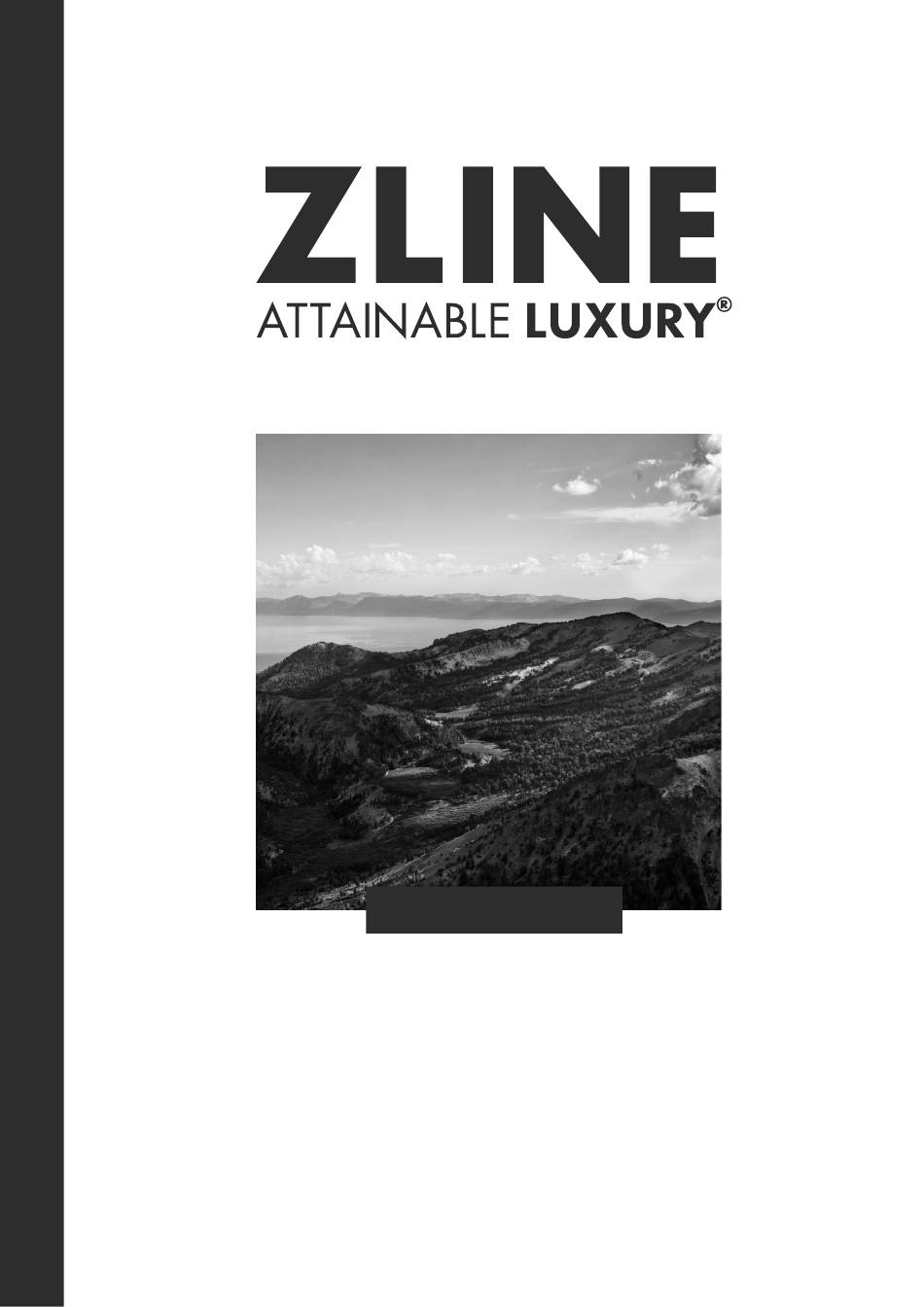

- Page 1 Installation Manual SINGLE WALL OVEN www.zlinekitchen.com...
- Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
- Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
- Page 4 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PRODUCT SPECIFICATIONS PARTS AND TOOLS ELECTRICAL REQUIREMENTS INSTALLATION WARRANTY...
-
Page 5: Safety Instructions
• Install this appliance only in accordance with the installation instructions. • Use this oven only as intended by the manufacturer. If you have any questions, contact ZLINE at 1-614-777-5004. • Do not cover or block any openings on this appliance. -
Page 6: Personal Safety
SAFETY INSTRUCTIONS • Do not overcook food. Carefully attend oven if paper, plastic or other combustible materials are placed inside the oven. • Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not being used. TO REDUCE THE RISK OF FIRE INSIDE THE OVEN •... - Page 7 SAFETY INSTRUCTIONS • During and after use, do not touch or let clothing or other flammable materials contact the heating elements or the interior surfaces of the oven until they have had sufficient time to cool. • Please note that the trim on the top and sides of the oven door may become hot enough to cause burns.
- Page 8 • Confirm that the door locks and will not open once the Self Clean option is selected and the door lock icon appears. If the door does not lock, turn the cook mode selector to OFF and do not run Self Clean. Call ZLINE at 1-614-777-5004 or an authorized service provider.
-
Page 9: Before Installation
BEFORE INSTALLATION A. Cooling Vents B. Broil Element C. Control Panel D. Halogen Light E. Convection Fan and Element F. Bottom Element (not visible) G. Appliance Tag Location H. Door Gasket I. Temperature Probe J. Oven Rack (1) K. Telescoping Oven Rack (1) L. -
Page 10: Tools Needed
BEFORE INSTALLATION Gather the required tools before starting installation. Read and follow the instructions provided with any tools listed here. TOOLS NEEDED • Measuring Tape • Straightedge • Pencil or Marker • Phillips-head Screwdriver • Level • Wire Cutters and Wire Stripper •... -
Page 11: Electric Shock Hazard
BEFORE INSTALLATION ELECTRIC SHOCK HAZARD If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine the ground path is adequate and wire gauge is in accordance with local codes. Do not use an extension cord with this appliance; doing so may void the warranty. -
Page 12: Voltage And Frequency
BEFORE INSTALLATION • DO NOT ground to a gas pipe. • DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or GROUNDING circuit could result in an electrical shock. • Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded. - Page 13 BEFORE INSTALLATION WARNING This appliance shall be installed only by authorized persons and in accordance with the manufacturer’s installation instructions, local gas fitting regulations, municipal building codes, electrical wiring regulations, and/or local water supply regulations. • Observe all governing codes and ordinances. •...
-
Page 14: Installation
INSTALLATION Electrical Junction Box Location NOTE: Junction box may be located in adjacent cabinet LETTER DESCRIPTIONS UNDERCOUNTER WITHOUT COOKTOP OVEN IN CABINET Width (cutout) 28 5/8” (72.7 cm) 28 5/8” (72.7 cm) Height (cutout) 27 1/2” (70.0 cm) 27 1/2” (70.0 cm) Depth (cutout) 24”... -
Page 15: Step 3 - Install Oven
for lifting. STEP 1 - UNPACK THE OVEN STEP 3 - INS 2 Remove the shipping materials and tape from the oven. 3 Remove the hardware package from inside the bag containing WARNING literature. INSTALLATION EXCESSIVE WEIGHT HAZARD 4 Remove and set aside racks and other parts from inside the oven. Use two or more people to move and install oven. -
Page 16: Step 4 - Electrical Grounding Instructions
INSTALLATION STEP 3 - INSTALL OVEN 1. Using two or more people, grasp the ceiling of the oven cavity and lift the oven onto a table or platform even with the cutout opening. NOTE: The surface must be able to support up to 160 lbs (73 kg). - Page 17 3-WIRE CAB For Single Oven, use 10 gauge copper or aluminum wire. IMPORTAN For Double Oven, use 8 gauge copper or aluminum wire. local codes p INSTALLATION Electrically ground oven. 1 Disconnec Failure to do so can result in death, re or electrical shock. •...
- Page 18 3-WIRE CONNECTION (GROUNDED NEUTRAL) - INSTALLATION U.S.A. ONLY e type of WARNING structions 3-WIRE CONNECTION (GROUNDED NEUTRAL) - U.S.A. ONLY • Grounding through the neutral conductor is prohibited for new branch-circuit installations ELECTRICAL SHOCK HAZARD (1996 NEC); mobile or manufactured homes; and recreational vehicles, or in an area Grounding through the neutral conductor is prohibited for where local codes prohibit grounding through the neutral conductor.
- Page 19 INSTALLATION 4-WIRE CONNECTION (UNGROUNDED NEUTRAL) - U.S.A. AND CANADA 4-WIRE CABLE FROM HOME ELECTRICAL SUPPLY 2 There are two holes, one on each side of the fron 4-WIRE CONNECTION (UNGROUNDED NEUTRAL) - rounds the oven cavity. Drill 1/8" (3.18 mm) pilo U.S.A.
-
Page 20: Step 5 - Mount The Oven
INSTALLATION STEP 5 - MOUNT THE OVEN 1. Slide the unit completely into the cabinet until the back surface of the front frame touches the front wall of the cabinet. Center the oven within the cabinet cutout. NOTE: Push against the seal of the oven’s front frame when pushing the unit into the cabinet. -
Page 21: Step 7 - Complete Installation
INSTALLATION STEP 7 - COMPLETE INSTALLATION 1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped. 2. Dispose of/recycle all packaging materials. 3. Check operation of oven: •... -
Page 22: Warranty
WARRANTY COVERAGE ZLINE Kitchen and Bath wall oven products will be warrantied for one year from the original purchase date for the original purchaser of the product. This warranty covers all parts for necessary repairs if any part of the product proves to be defective in materials or workmanship. - Page 23 SERVICE For warranty service, please contact our Customer Service team at 1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Need to purchase a part or accessory for your ZLINE product? Visit ZLINEparts.com, ZLINE's official parts distribution partner.
- Page 24 2.0.1 www.zlinekitchen.com 1-614-777-5004 contact@zlinekitchen.com...
