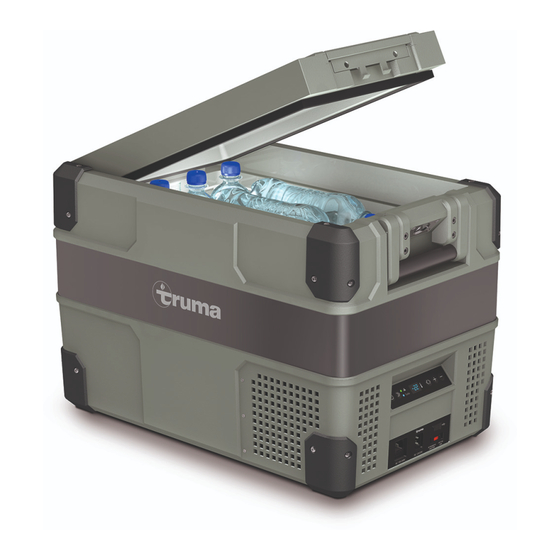

- Page 1 Portable Fridge / Freezer Operating instructions Models Single Zone Models This document is part of the product. C30 / C36 / C44 / C60 / C73 / C105 READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT. Dual Zone Models C69 DZ / C96 DZ...
-
Page 2: Table Of Contents
Operating instructions Trademark information Product features ..............9 Control panel Single Zone ..........10 Truma Cooler referred to as Cooler below. Control panel Dual Zone ............. 10 Turning the appliance on/off ..........10 Scope of delivery Temperature setting ............11 Temperature unit setting ............ -
Page 3: Intended Use
Intended Use Prohibited use The appliance is designed for cooling and The product is not designed freezing foods. The product is designed for • to be exposed to rain or wet environment, camping and other mobile use. This mobile • to be used as a household refrigerator appliance can be used in household and simi- •... - Page 4 Do not expose the appliance to rain. training, their knowledge and experience The power connection must be especially with Truma products and the relevant stan- protected against moisture and wetness. dards, can carry out the necessary work Protect the appliance from moisture and properly and identify potential hazards.
- Page 5 • Risk of electrical shock. • Risk of injury. Do not handle electrical connections with Any alteration to the appliance or its con- wet hands. trols can cause unforeseen serious hazards and will void the warranty. • Risk of electrical shock. Do not locate multiple portable socket-out- •...
- Page 6 Risk of fire. The correct • • Do not attempt to remove frost from the polarity must be ensured for the 12/24 V DC appliance with a scraper or knife. Serious inlet. Reverse polarity is not possible with damage to the cooling system could occur. the supplied 12/24 V connector cable.
-
Page 7: Important Product Information
• This appliance complies with Part 15 of consumption increase. Do not operate the the FCC Rules and with Industry Canada appliance in environments where the ambi- license-exempt RSS standard(s). Operation ent temperature exceeds +43 °C / 109 °F. is subject to the following two conditions: –... - Page 8 • Damage may occur if the DC cable supply • Make sure that the voltage data on the is not appropriately sized. This will cause type plate matches the existing power sup- low voltage. The table below provides rec- ply. Incorrect mains supply can damage the ommended cable sizing from battery to appliance.
-
Page 9: Operating Instructions
Operating instructions Powered by 12 / 24 V DC compressor Two way opening lid Product features (not Model C30 / C36 / C44) Bottle openers on both sides Flat carry and tie down handles Digital display for each compartment (only dual zones) Multi-voltage system AC (100 - 240 V) -
Page 10: Control Panel Single Zone
Control panel Single Zone 1 Power switch (C30 / C36 / C44 / C60 / C73 / C105) 2 Turbo switch 3 Power indicator / Fault light 4 Turbo indicator light 5 LED-Display Turbo 6 Switch compartments / Mode Fig. 2... -
Page 11: Temperature Setting
Temperature setting Temperature unit setting Temperature setting range –22 °C • Press the “<>” button two times to switch to +10 °C (-8 °F to + 50 °F) in each between °F / °C for single zone models and compartment three times for dual zone models. °F or °C will be shown at the display. -
Page 12: Battery Protect Voltage Setting
Battery protect voltage setting • Press the “<>” button and “+” button for three seconds, at the same time to enter • Press the “<>” button one more time after the Bluetooth mode. change °F or °C, to enter battery protect voltage setting. -
Page 13: Ac/Dc, Usb Connection, Fuse And Emergency Override In Front
Risk of fire. The correct polar- Fuse ity must be ensured for the 12/24 V DC inlet. Reverse polarity is not possible with the sup- 250 V fuse plied 12/24 V connector cable. The fuse (F6.3A250V) may only be replaced by a fuse of the same AC/DC, USB connection, fuse and type. -
Page 14: Dc Connection In The Back
DC connection in the back DC 12V/24V Fig. 5 The second DC socket allows the optimal use in every position. Fig. 6 Two way opening and removable lid Remove the lid Open the lid, push it over the aiming position and remove it (all models). -
Page 15: Attach The Lid
Truma Cooler App Instructions Attach the lid Put the lid on the side of the box and press it To control your Truma Cooler with your smart- down firmly (all models). phone you can use the Truma Cooler smart- On the following models the lid can also be phone app of Truma. - Page 16 Now linked to your appliance, you can: • Easily switch between appliances. • Adjust your appliances temperature from –22 °C to +10 °C (-8 °F to + 50 °F). • Check current temperature. • Choose from Celsius and Fahrenheit tem- perature scales. • Turn your appliance on and off. •...
-
Page 17: Cleaning
Cleaning Disposal Risk of child entrapment! Dissconnect the appliance from the power supply before cleaning. Before disposal of this device: • Dismantle the lid. Clean the appliance inside and outside with a • Leave the baskets in place so that children clean damp cloth every week. - Page 18 • This is normal, due to the flow of refriger- ant inside the appliance. Unusual noise when refrigerator is working • The refrigerator is not placed on a level surface If none of the above solves your issue please contact the Truma Service Center (855-558-7862).
-
Page 19: Fault Indicator
• When the LED display will show sensor E0, means NTC (the temperature sensor) broken circuit or short circuit. Please contact the Truma Service Center for support. • Try on different power source (vehicle or 100 V - 240 V AC connector). If changing power... - Page 20 • Move so appliance is in a lower ambient temperature. Over temperature • Clean vents/ensure clear air flow over compressor. If these measures do not remedy the malfunction, contact your dealership, Truma Service or one of our authorized Service Partners.
-
Page 21: Technical Data
Technical Data Model C105 C69 DZ C96 DZ Single Single Single Single Single Single Dual Dual Zone Zone Zone Zone Zone Zone Zone Zone Dimen- Length Length Length Length Length Length Length Length sions in 912 (36) 912 (36) mm (in.) (24.0) (25.7) (25.7) - Page 22 Model C105 C69 DZ C96 DZ Single Single Single Single Single Single Dual Dual Zone Zone Zone Zone Zone Zone Zone Zone Con- DC 12 / 24 V nection AC 100 - 240 V / 50-60 Hz voltage Rated 12 V 12 V 12 V 12 V 12 V 12 V 12 V 12 V...
- Page 23 Model C105 C69 DZ C96 DZ Single Single Single Single Single Single Dual Dual Zone Zone Zone Zone Zone Zone Zone Zone Climate N, T class Refrig- R134a / R134a / R134a / R134a / R134a / R134a / R134a / R134a / erant / quantity...
- Page 24 Model C105 C69 DZ C96 DZ Single Single Single Single Single Single Dual Dual Zone Zone Zone Zone Zone Zone Zone Zone Volume in l (gal) (7.9) (9.2) (11.4) (15.6) (19.0) (27.5) 24 + 45 41 + 55 (18.2) (25.3) (6.3 + (10.8 + 11.9)
-
Page 25: Warranty
“Truma Cooler” MANUFACTURER’S LIMITED During the warranty period, Truma will repair or WARRANTY replace, at its own discretion and costs, the de- fective Product or parts or components of such Product reported to Truma and which Truma... - Page 26 EXCEPT AS EXPRESSLY STATED AND This limited warranty does not cover any defects attributable in whole or in part to (i) non-Truma SET FORTH HEREIN, THERE ARE NO WARRANTIES OR REPRESENTATIONS, products and services and / or alterations of out-...
- Page 27 Truma knew or should have known of the possibility of such losses or damages, (b) claims, demands or ac- tions against the customer by any person, except as provided by applicable law.
- Page 28 In case you encounter any problems, please contact the Truma Service Center at 855-558-7862 or one of our authorized service partners. For details see www.truma.net. Please have the model number and serial number (see type plate) handy when you call.
