Denver DVBT-804 Operation Instructions Manual

Digital lcd color tv receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DVBT-804
Operation Instructions
Digital LCD Color TV Receiver

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVBT-804 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denver DVBT-804

Summary of Contents for Denver DVBT-804

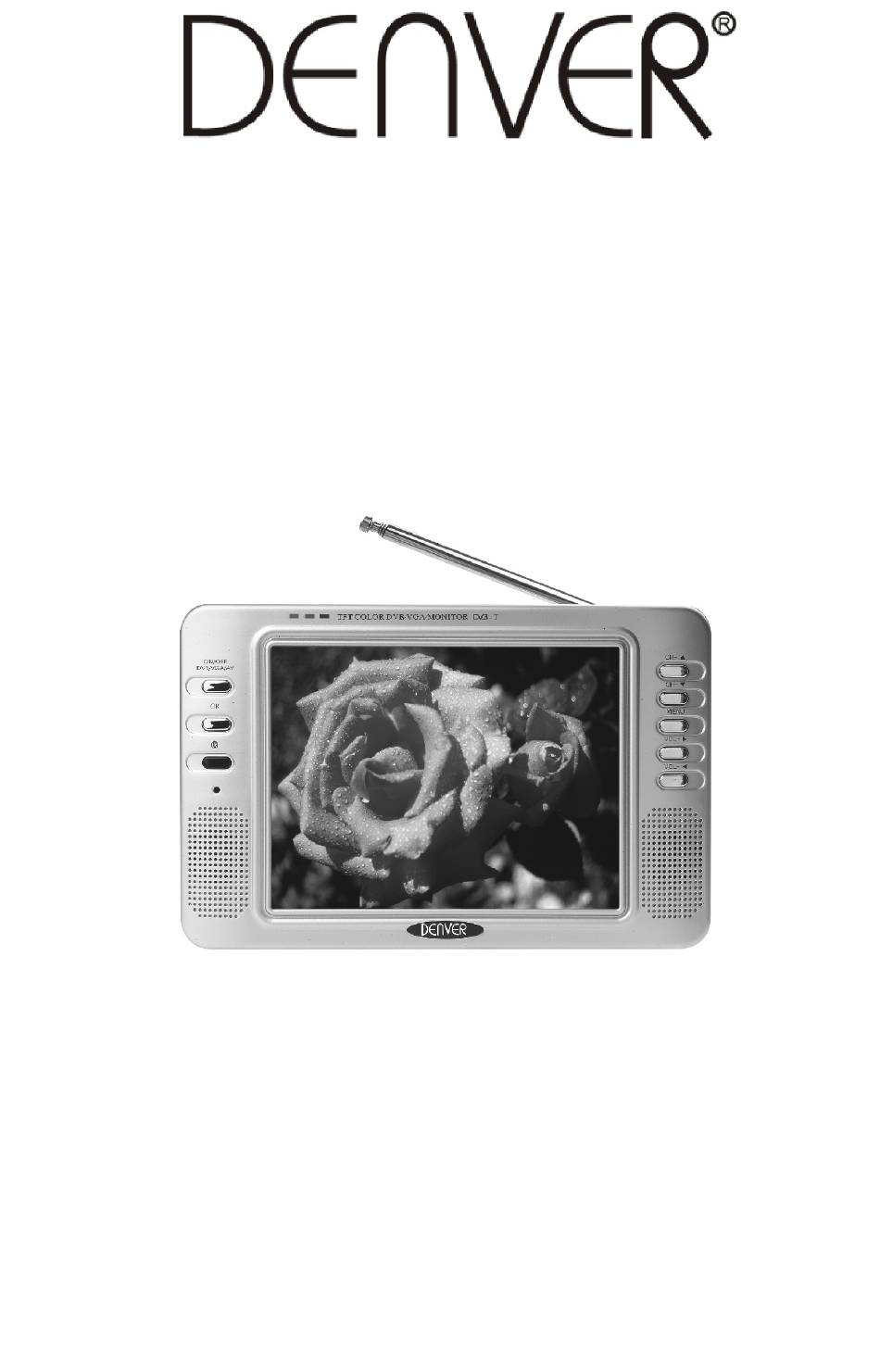

  • Page 1 DVBT-804 Operation Instructions Digital LCD Color TV Receiver...

  • Page 2: Table Of Contents

    Table of Contents 1. Precautions 2. Accessories 3. Appearance 4. Remote Control Application 5. Basic Operation Methods 6. Menu Operation 6.1. Auto installation 6.2. Installation setup 6.3. Program receive and shift 6.4. Program search function 6.5. Main menu option 6.6. Parental control 6.7.

  • Page 3: Precautions

    1. Precautions Storage and Keeping Keep this machine Never use this away from too hot machine near or too cold places. bathtub, The storage washbasin, and temperature of this kitchen, etc places machine is -20~ with water or at 60 , the damp basement, application swimming pool or...
  • Page 4 Operation Precautions 1. Only the attached AC adapter and the automobile adapter (12V) are suitable. 2. For the sake of safety, when you do not intend to use the display, please plug off the AC adapter or automobile adapter. Earphone Operation Precautions 1.Please don't tune your headphone / earphone to too high volume, otherwise, it may lead inconvenience and danger to yourself and other people.

  • Page 5: Accessories

    2. Accessories Car adapter AC adapter Digital TV Earphone antenna AV in/out Remote line control AV cord AAA type batteries...

  • Page 6: Appearance

    3. Appearance Telescopic antenna TFT-LCD screen Channel+ ON/OFF option DVB/VGA/AV Shift Press and hold for 3 seconds to turn off Channel - option Confirm OK Menu Remote receiving Volume+ window selection + Power indicator Volume - Standby: Red selection - Turn on: Green Loudspeaker Power Switch...

  • Page 7: Remote Control Application

    4. Remote Control Operation Standby OSD Language Select Power ON/OFF Auto Search/ My Favourite Auto adjust Channel on/off Add the current program to Nine Picture Guide My Favourite Channel Information Turn on Game menu Display Exit Last Turn on Teletext Program/Menu Program Edit Table Confirm OK...
  • Page 8 SEARCH: (Auto adjust) a. Start Auto search in DVB status b. Press and hold for 5 seconds to auto picture adjust (PC mode only ) MEMORY: Add the current program to my favourite program(DVB mode only). Press this button to add the current program to My favourite channel list.

  • Page 9: Basic Operation Methods

    5. Basic Operation Methods Basic interface connection 5.1. Connection Method of Power Supply: Align the power supply plug on AC adapter with the jack on the machine cover marked with DC12V. 5.2.Connection Method of External Antenna Conversion Line: Plug off the telescopic antenna plug, plug the attached digital antenna plug into the antenna jack on TV set 5.3.Connection Method of Telescopic...
  • Page 10 Notice Only English is OSD menu language in AV mode. 5.6.Connection Method of AV Output Just insert the yellow plug of the AV output line to video jack, the audio left track plug to the white jack, the audio right track plug to the white jack. Then insert the A V head into the AV/OUT jack.

  • Page 11: Menu Operation

    6. Menu Operation 6.1. DVB-T TV receiver automatic installation First Time Installation. The system will automatically (Program table is not exist.) start the First Time Installation while turn on TV set. Please set up the installation as illustrated. The system may not start the First Time Installation at status as below: 1.The First Time installation has been...
  • Page 12 Select menu language Press VOL+/VOL- to select language of menu. Press CH+ or CH- to move the cursor to other items. Set time zone Press VOL+/VOL- to set local time zone. Press CH+ or CH- to move the cursor to set other items. Skip to the next menu page Press VOL+/VOL- to move the cursor to BACK or NEXT item.
  • Page 13 Select display type Press CH+ or CH- to move the cursor to select display type . Press VOL+ or VOL- to realize the display type of 4:3PS or 16:9 . Notice: Please to select 4:3PS mode in this TV set. Select TV standard.
  • Page 14 Skip to next step Press CH- key to move the cursor to next step. Then press VOL+ key to move the cursor to NEXT. Press OK key to skip to next step. Select menu color Press CH+ or CH- to move the cursor to select Menu Color item.
  • Page 15 Select Border Pattern Press CH+ or CH- key to move the cursor to select Border Pattern item. Press VOL+/VOL- key to set Border Pattern, press CH+ or CH- key to move the cursor to select other items or press EXIT key to exit. System may save the setting and return to the main menu.
  • Page 16 Start program auto search Step 1 Press VOL+/VOL- key to move the cursor to BACK , YES or NO item, Press OK key to confirm. BACK: Skip to last menu page. YES: Delete program list and start Auto Search. NO: Cancel Auto Search and return to main menu.
  • Page 17 Step 4 Auto Search has been finished. Data saving..Step 5 Auto Search has been finished. Press CH+/CH- to watch program.

  • Page 18: Installation Setup

    6.2.Installation Setup Please follow the steps below to setup: Step 1 1.Press Menu key to display Main Menu. 2.Press CH+ or CH- key to move the cursor to select System Setting sub-menu. 3.Press OK key to get into System Setting menu. Step 2 4.
  • Page 19 Step 3 6.Press CH+ or CH- key to move the cursor to select Country item. 7.Press VOL+ or VOL- key to set locate Country. 8.Press EXIT key two times to return to Main Menu. Step 4 9.Press CH+ or CH- key to move the cursor to select Installation item.
  • Page 20 Step 8 15.Auto searching..Step 9 16.Auto searching..The channel list has been found. Step 10 17.Auto Search has finished. Data saving..Step 11 18.Auto Search has finished. Press CH+/CH- to watch TV.

  • Page 21: Program Receive And Shift

    6.3.Program receive and switch Program preview After finished auto search, you can enjoy watching high quality TV programs. Press OK key , program preview picture display as illustrated. Press CH+ or CH- key to move the cursor to select channel in the Program list.
  • Page 22 Teletext Display This DVB-T TV set support Teletext Display. Press Teletext key to start the function. Press CH+/CH- or VOL+/VOL- key or input page number on remote controller to change display pages. To display Teletext, the program signal must contain teletext data. Electronic Program Guide This digital TV set support Electronic Program Guide (EPG) function.

  • Page 23: Program Search Function

    6.4.Program Search Function Program Search Menu For the first installation of the TV set, it is recommended to perform program search function. So you can renew the channel list and receive program picture normally. If program parameters have been reset, you must run program search function again and renew the channel list of the TV set.
  • Page 24 Finish Manual Search Manual Search is Finished. TV program display directly. System Saving Press EXIT key to save the setting and return to normal playback.

  • Page 25: Main Menu Option

    6.5.Main Menu Operation Program Edit Table Press MENU key to display Main Menu, then press CH+ or CH- key to move the cursor to select Program Editing item. Press VOL+ to realize Program Editing function. There are four options in TV Program Editing Press CH+ or CH- key to move the cursor to select TV program editing...
  • Page 26 Move Program Under Program Edit Table menu, press VOL+ or VOL- key to move the cursor to the Move row of program table, Press CH+ or CH- to move the cursor to the desired position. Press OK key to confirm. And press OK key again to cancel.

  • Page 27: Parental Control

    6.6.Parental Control Setup Parental Control Some program is not suitable for kids or youth. Parents can start Parental Control function to limit some program to be display. Press MENU key to display Main menu, then press CH+ or CH- key to move the cursor to select Parental Control item.
  • Page 28 Select Programs To Be Lock Press CH+ or CH- key to move the cursor to select program to be lock. Press OK key to confirm or press OK key to cancel. Press MENU key repeatedly till system save the setting and return to display TV image normally.

  • Page 29: System Setup Option

    6.7.System Setting Press MENU key to display Main Menu, then press CH+ or CH- key to move the cursor to select System Setting item. Press OK key to realize System Setting menu. TV System Setting Under the Main Menu, press CH+ or CH- key to move the cursor to select TV Standard.
  • Page 30 Display Type Under the System Setting Menu, press CH+ or CH- key to move the cursor to select Display Type item. Press OK key to get into Display Type menu. Under the Display Type Menu, press Display Type Setting CH+ or CH- key to move the cursor to select Display Type item.
  • Page 31 Country Setting Under the Regional Setting Menu, press CH+ or CH- key to move the cursor to select Country item. Press VOL+ or VOL- key to select country. Press CH+ or CH- key to move the cursor to select other items or press OK key to confirm.

  • Page 32: Set Factory Default

    6.8.Set Factory Default Step 1 Press MENU key to display Main Menu, then press CH+ or CH- key to move the cursor to select System Setting item. Press OK key to confirm. Press CH+ or CH- key to move the cursor to select Set Factory Default item.
  • Page 33 Step 4 Select OK item and press OK key to confirm. Notice: The PIN is preset as 8888. If user change the PIN then set factory default, the PIN will not change back to 8888 but the changed PIN by user. Please do fix the PIN.

  • Page 34: Game Menu Option

    6.9.Game Menu Game Menu Under Main Menu, press CH+ or CH- key to move the cursor to select Game item. Press OK key to get into Game menu. Game Item Press CH+ or CH- key to move the cursor to select Game item. Press OK key to start game.

  • Page 35: Diy Menu Setting

    6.10.DIY Menu Setting You can set up personal menu in this function. Under Main Menu, Press CH+ or CH- key to move the cursor to select Options item. Press OK key to confirm. Menu Color Setting Press CH+ or CH- key to move the cursor to select Menu Color.
  • Page 36 Border Pattern Press CH+ or CH- key to move the cursor to select Border Pattern.. Press VOL+ or VOL- to select Round or right-angle item. Press CH+ or CH- key to move the cursor to set other items. Then press EXIT key to save setting and return to Main Menu.

  • Page 37: Menu Analog Quantity

    6.11. Menu analog Quantity Setting Brightness Press MODE key to get into Analog Quantity Setting. Brightness: Press AV VOL+ or AV VOL- key to adjust. Contrast Press MODE key repeatedly to get into Contrast menu. Press AV VOL+ or AV VOL- key to adjust contrast. Color Press MODE key repeatedly to get into Color menu.

  • Page 38: Off-Time Setting

    6.12.Off-time setup Off-time setup Press SLEEP key to enter off-time setup. Repeat to press SLEEP can choice the off-time. Off-time is within 120 minutes. 6.13. VGA operation menu Under VGA mode, press MENU to display as bellow: BRIGHT CONTRAST H.POSITION V.POSITION CLOCK PHASE...
  • Page 39 Reset Press CH+/CH- to select RESET item, press VOL+/VOL- can set bright, contrast, OSD V, OSD H, clock, color temperate etc of picture to factory default. Clock Can change the size of picture. Sharpness Adjust the edge sharpness in low resolution. Blue back Set blue back on/off without signal.

  • Page 40: Before You Request For Repair

    7. Before you request for repair Phenomena below does not necessarily mean failure with TV set. Please check following before you request for repair. Possible Causes Phenomena Improper connection with AC adapter or Car adapter. Use of unauthorized power No picture, no sound supply.

  • Page 41: Technical Parameters

    8. Technical Parameters Tune: Input code rate: 4.98 31.67Mbit/s Demodulation: COFDM Modulate: QPSK. 16-QAM, 64-QAM FFT Mode: 2K/8K Input: Input Frequency: VHF 177.5MHz 226.5MHz UHF 474MHz 858MHz Input Voltage: -20 -65 dBmV Input Resistance: 75 ohm Video Output: Output Resistance : 75ohm, Need AV conversion cord. Output Voltage: 1.0+20mVp-p Audio Output: Output Resistance: 680...
  • Page 42 W a r n in g This operation instruction is only intended for reference. No further notice is available to any modification of all information contained therein. Due to continuing improvements. The features and disign are subject to change without notice. W a r n in g No repairable components exist in the machine.
  • Page 43 ALL RIGHTS RESERVED COPY RIGHT DENVER ELECTRONICS A/S www.denver-electronics.com...
