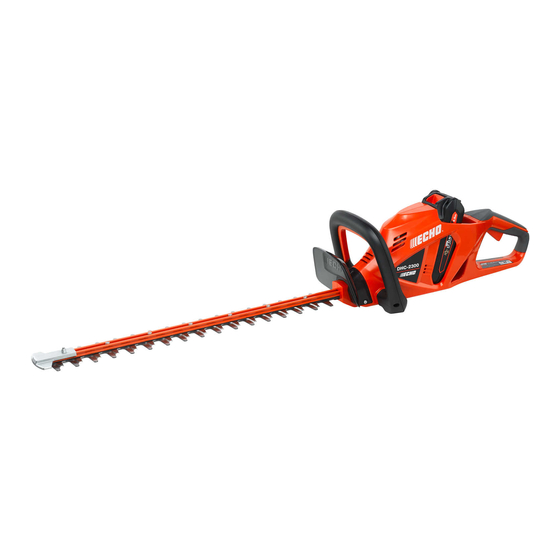

Hedge Trimmer
This product contains chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-003(B) / NMB-003(B)
99922238005
© 01/2023 ECHO Incorporated
Operator's
Manual
DHC-2300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DHC-2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Echo DHC-2300

Summary of Contents for Echo DHC-2300

  • Page 1 Cancer and Reproductive Harm www.P65Warnings.ca.gov Read and understand all provided literature before use. Failure to do so could result in serious injury. Note: This product complies with CAN ICES-003(B) / NMB-003(B) 99922238005 © 01/2023 ECHO Incorporated...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DHC-2300 TABLE OF CONTENTS Introduction.........................3 Servicing Information......................3 Parts / Serial Number....................3 Service........................4 ECHO Consumer Product Support................4 Product Registration....................4 Additional Literature....................4 Packing List........................4 Safety..........................5 Manual Safety Symbols and Important Information...........5 International Symbols ....................6 General Power Tool Safety Warings................7 Hedge Trimmer Safety Warnings................10...

  • Page 3: Introduction

    SERVICING INFORMATION Parts / Serial Number Genuine ECHO Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you.

  • Page 4: Service

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. Hedge Trimmer...

  • Page 5: Safety

    Note: This enclosed message provides tips for use, care and maintenance of the unit. CIRCLE AND SLASH SYMBOL This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 6: International Symbols

    Danger – keep hands and property damage. feet away from blade. Wear protective clothing and boots. Wear non-slip, heavy Direct current duty gloves. Wear Eye and Ear Volts Protection Environmentally safe battery disposal 99922238005 © 01/2023 ECHO Incorporated...

  • Page 7: General Power Tool Safety Warings

    Damaged or entangled cords increase the risk of electric shock. • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. 99922238005 © 01/2023 ECHO Incorporated...
  • Page 8 Any power tool that cannot be controlled with the switch is dangerous and must be repaired. • Disconnect the plug from the power source and/or remove the battery, from the power tool before making any adjustments, 99922238005 © 01/2023 ECHO Incorporated...
  • Page 9 A charger that is suitable for one type of battery may create a risk of fire when used with another battery. • Use only with ECHO eFORCE™ 56V battery series. Use of any other batteries may create a risk of injury and fire. •...

  • Page 10: Hedge Trimmer Safety Warnings

    Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 11: Recommended Ambient Temperature Range

    39 ˚F (4 °C) ~ 104 ˚F (40 ˚C) Battery storage temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C) Battery discharging temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C) 99922238005 © 01/2023 ECHO Incorporated...

  • Page 12: Fcc Statement

    Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 13: Environmentally Safe Battery Disposal

    DO NOT put these batteries in your regular household trash. DO NOT incinerate. DO NOT put them where they will become part of any waste landfill or municipal solid waste stream. Take them to a certified recycling or disposal center. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 14: Description

    No exponer a la lluvia. Guardar en interiores y Use only with ECHO eForce battery series. See instruction evitar la humedad o el agua. Usar solo con una batería ECHO LBP-56V125.Consulte el manual de manual for additional battery packs and charger instrucciones para paquetes de baterías y cargadores adicionales...
  • Page 15 Align the ridges on the battery with the grooves in the battery compartment. Push the battery into the battery compartment until the battery locks into place. When you hear a click, the battery is installed. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 16: Operation

    Starting the Unit When starting the unit, observe the precautions described in the "Safety" section. Failure to observe the precautions could cause an accident or injury, or even lead to a fatality. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 17: Stopping The Unit

    Have your authorized ECHO servicing dealer repair unit before using again. If the machine accidentally falls,it will stop and the blade will fully stop after a few seconds.

  • Page 18: Operation Tips

    7. Cut the hedge immediately above this string. Cut the side of a hedge until it will be narrower at the top. More of the hedge will come into view in that way. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 19: Maintenance

    Level 2 = Moderate difficulty. Some specialized tools may be required. Level 3 = See your dealer. Maintenance Intervals MAINTENANCE REQUIRED COMPONENT/SYSTEM PROCEDURE SKILL LEVEL Daily or Before Use Battery and Battery Com- Inspect/Clean * partment Screws/Nuts/Bolts Inspect/Tighten/Replace * Blades Inspect/Clean 99922238005 © 01/2023 ECHO Incorporated...

  • Page 20: Cleaning Battery And Battery Compartme

    Use a soft cloth and a brush to clean the blades. • Use a light layer of oil to lubricate the blades along the top edge of the blade. We recommend the use of Red Armor® Blade Cleaner and Lubricant 99922238005 © 01/2023 ECHO Incorporated...

  • Page 21: Troubleshooting

    The parts are loosen. 1. Stop the machine. much 2. Remove the battery. noise and/or 3. Inspect for damage. vibration 4. Check and tighten loose during opera- parts. tion. The parts have Do not use the machine and damage. contact your dealer. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 22: Storage

    If battery is stored for longer than six months, charge it to 100% capacity. Charger Remove battery from charger. Disconnect charger from power supply. Store in a dry, dust-free place, out of the reach of children. 99922238005 © 01/2023 ECHO Incorporated...

  • Page 23: Specifications

    No load speed 3200 SPM Blade length 22” (552 mm) Cutting capacity 1.1” (28 mm) Weight (without battery) 6.7 lbs (3.05 kg) Battery: ECHO eFORCE™ 56V battery series Model batteries Type Li-Ion Voltage 56 (rated 50.4) Charger type CCCV Charger input voltage 120V AC 60Hz ECHO eFORCE™...

  • Page 24: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product online. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Incorporated. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 25 DHC-2300 PRODUCT REGISTRATION 99922238005 © 01/2023 ECHO Incorporated...

  • Page 26: Warranty

    ECHO dealer within the warranty period. The expense of delivering the product to the service center for warranty work and the expense of returning it back to the owner after repair or replacement will be paid by the owner. ECHO Incorporated’s, responsibility in respect to claims is limited to making the...
  • Page 27 ECHO Incorporated, does not assume or authorize anyone to assume for them any other obligation. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. ECHO Incorporated, assumes no responsibility for incidental, consequential, or other...
  • Page 28 WARRANTY DHC-2300 This warranty applies to all ECHO brand 56 Volt outdoor products manufactured by or for ECHO Incorporated, and sold in the United States and Canada. To locate your nearest authorized ECHO dealer, visit www.ECHO-usa.com or dial 1-800-432-ECHO (3246).
  • Page 29 DHC-2300 NOTES NOTES 99922238005 © 01/2023 ECHO Incorporated...
  • Page 30 403HCH100001 - 403HCH999999 420HCH100001 - 420HCH999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
