- Page 1 Assembly Instructions Description:Caribbean Pirates Climbing Set-Hull Item Code:HW1-S287-A Manufacturer: Wisdom Educational Product Co.,Ltd Manufacturer Address: Building 4, Lane 2777, Baoan Road, Malu Town, Jiading District, Shanghai, China...
- Page 2 Assembly Instructions 1.Before installation, ensure that the site meets the below installation requirements. 1)Confirm whether the site has obvious slope affecting the installation. (The height difference of the concrete floor should not be more than 5cm, and the grass should be leveled when installing the equipment.) 2)Confirm whether there are immovable obstacles in the site and whether the site size conforms to the installation of this product (use zone shall be retained).
- Page 3 Overall product drawing Flag Post Ramp Climber Net Climber...
- Page 4 Use zone 1830 2497 1830 6156...
-
Page 5: Part List
PART LIST HW1-S287-A Flag *1 Center beam *1 Net climber *1 Ramp climber side post *2 Ramp climber*1 Flagpole post *1 Net climber side post *2 M10*190 (M10) Ø34 (M10) (M10) M10*230 (M10) Ø34 HARDWARE The net climber side post is connected with the outside gap of the central beam. - Page 6 (M10) (M10) M10*230 Ø34 M10*320 Ø34 (M10) (M10)
- Page 7 Record the Batch-Number here. Information is located on the shipping carton and / or the product itself. Keep this sheet in an accessible place. Model Number: HW1-S287-A Batch-Number: Distribution: Wisdom Education Europe Zum Poppschen Gut 3 09526 Olbernhau GERMANY www.wisdomeurope.com...
-
Page 8: Installation Instructions

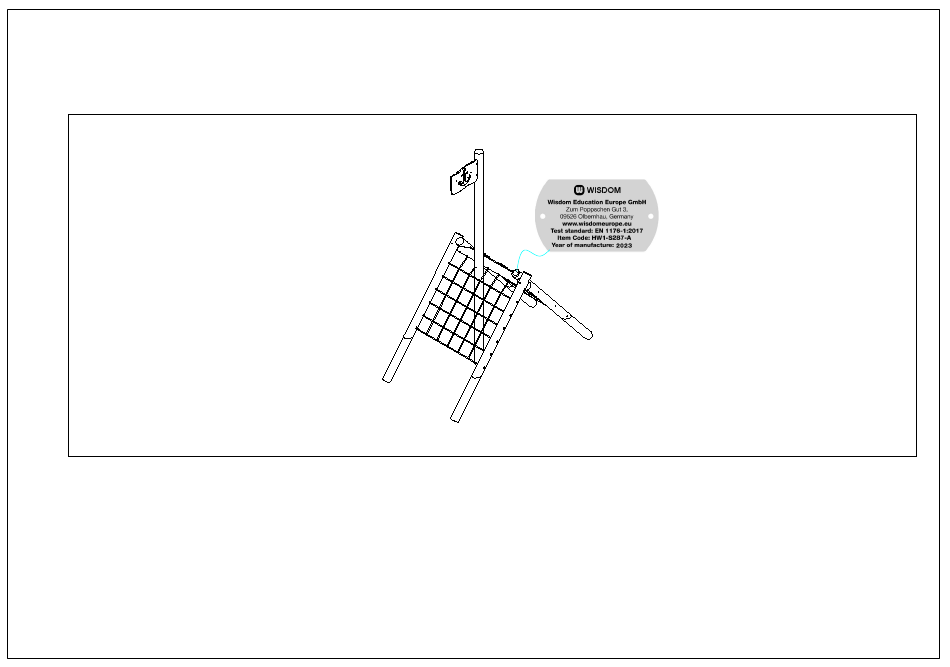

： Item Code HW1-S287-A Imp orted into EU by: Wisdom Education Europe GmbH, Zum Poppschen Gut 3, 09526 Olbernhau , Germany Manufacturer: Wisdom Educational Product Co.,Ltd Manufacturer Address: Building 4, Lane 2777, Baoan Road, Malu Town, Jiading District, Shanghai, China Test standard: EN 1176-1:2017, Overall Dimension: 249.7*179*368CM... - Page 9 Post Footing Diagram Solid wood post fixing method A Different sites use different construction methods Applicable conditions: Grass ground Ground surfacing 20cm thickness covering soil 51.6cm thickness pouring concrete 20cm thickness concrete base Soil 3504 Locate the position of the post according to the above drawing. Dig a 70x70x91.6D cm pit. Pour 20cm thickness concrete into the pit as the base(Required Concrete Strength: No Less Than C30).
- Page 10 Post Footing Diagram Solid wood post fixing method A Different sites use different construction methods Applicable conditions: Concrete floor Ground surfacing 71.6cm thickness pouring concrete 20cm thickness concrete base Soil Locate the position of the post according to the above drawing. Dig a 70x70x91.6D cm pit. Pour 20cm thickness concrete into the pit as the base(Required Concrete Strength: No Less Than C30).
-
Page 11: Maintenance
INSTRUCTIONS Please read the instructions and warning labels carefully before use. Inspect items and play area for any potential hazards prior to use. Maximum number of people using the equipment at the same time is 4 . User age group: 3 ~ 14 years old. 5.Never leave children unattended.Ensure constant adult supervision. - Page 12 INSPECTION INFORMATION Inspection cycle Inspection Project YES/NO Solution Signature Check screws, bolts and fasteners are tightened. Installed on a flat surfact and no hazards are present. Equipment is free of dirt and moisture. Daily Inspection on Items Hook and loop attachments are securely fastened. Check for a signs of damage and wear.
