Outdoor Music Boards with Stands
Assembly Instructions
Item Code:
HW1-S274SET
Manufacturer: Wisdom Educational Product Co.,Ltd
Manufacturer Address: Building 4, Lane 2777, Baoan Road,
Malu Town, Jiading District, Shanghai, China
Test standard: EN 1176-1:2017
Item Code:
HW1-S275SET
Item Code:
HW1-S276SET
1
Item Code:
HW1-SZH01SET (Complete Set)
AN ELECTRIC SCREWDRIVER
IS RECOMMENDED FOR
ASSEMBLY (NOT INCLUDED)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wisdom Profile Education HW1-S274SET
Summary of Contents for Wisdom Profile Education HW1-S274SET

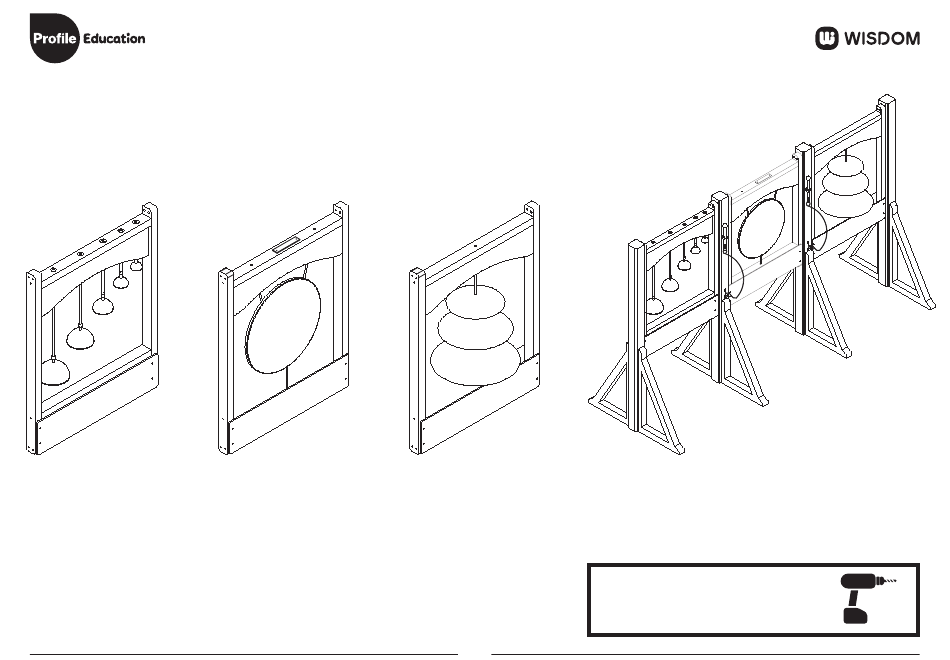

- Page 1 Item Code: Item Code: HW1-S274SET HW1-S275SET HW1-S276SET HW1-SZH01SET (Complete Set) Manufacturer: Wisdom Educational Product Co.,Ltd AN ELECTRIC SCREWDRIVER Manufacturer Address: Building 4, Lane 2777, Baoan Road, IS RECOMMENDED FOR Malu Town, Jiading District, Shanghai, China ASSEMBLY (NOT INCLUDED) Test standard: EN 1176-1:2017...
- Page 2 Outdoor Music Boards with Stands Assembly Instructions WARNING • Contains small parts, sharp points and edges. • Adult assembly required. • Two adults recommended. • Do not stand, sit, kneel, lean or pull on unit for support. • Never leave children unattended. •...
- Page 3 Outdoor Music Boards with Stands Assembly Instructions INSTRUCTIONS INSTALLATION METHODS 1. Please read the instructions and warning labels carefully before use. Please ensure that the installation ground is horizontal during installation and keep it horizontal during use. 2. A minimum of two adults are required for assembly. Method 1: Sand layer, required size in 0.25-2mm, overall depth is not less than 3.
- Page 4 Outdoor Music Boards with Stands - Item Code: HW1-S274SET FRONT PART LIST HARDWARE Φ4*65 Record the manufacture date here. Information is located on a label enclosed, and on the shipping carton. DIMENSIONS Place label and this sheet in an accessible place. Model Number: HW1-S274SET Overall Dimension: 90x72x125cm Manufacture Date:...
- Page 5 Outdoor Music Boards with Stands - Item Code: HW1-S274SET Step 1 Ensure the area is safe and devoid of any hazards prior to assembly. The single item is portable and can be used free standing (without ground anchors) – adult supervision advised, if preferred the item can be fixed in place with 1 set of 2 ground anchors for grass/soil base (anchors supplied).
- Page 6 Outdoor Music Boards with Stands - Item Code: HW1-S274SET Installing Ground Anchors 1. Firstly determine the coordinate points that need to be fixed to the product. With the digging tool, dig 46CM downward the grass, bury the grass anchor, then tamp the soil. 2.
- Page 7 Outdoor Music Boards with Stands - Item Code: HW1-S274SET INSPECTION INFORMATION Inspection cycle Inspection Project YES/NO Solution Signature Daily Inspection Check screws, bolts and fasteners are tightened. on Items Installed on a flat surface and no hazards are present. Equipment is free of dirt and moisture. Hook and loop attachments are securely fastened.
- Page 8 Outdoor Music Boards with Stands - Item Code: HW1-S275SET FRONT PART LIST HARDWARE 4*20 Φ4*20 Φ4*65 Record the manufacture date here. Information is located on a label enclosed, and on the shipping carton. DIMENSIONS AND WEIGHT Place label and this sheet in an accessible place. Model Number: HW1-S275SET Overall Dimension: 73x72x125cm Manufacture Date:...
- Page 9 Outdoor Music Boards with Stands - Item Code: HW1-S275SET Step 1 HW1-S366 HW1-S143 Ensure the area is safe and devoid of any hazards prior to assembly. The minimum space will be: 223x222cm. The single item is portable and can be used free standing (without ground anchors) – adult supervision advised, if preferred the item can be fixed in place with 1 set of 2 ground anchors for grass/soil base (anchors supplied).
- Page 10 Outdoor Music Boards with Stands - Item Code: HW1-S275SET Step 2 Step 3 The lower end of the percussion rod rope is fixed on the column through the fitting, and the fixing height of the fitting is close to the top of the tripod.
- Page 11 Outdoor Music Boards with Stands - Item Code: HW1-S275SET Installing Ground Anchors 1. Firstly determine the coordinate points that need to be fixed to the product. With the digging tool, dig 46CM downward the grass, bury the grass anchor, then tamp the soil. 2.
- Page 12 Outdoor Music Boards with Stands - Item Code: HW1-S275SET INSPECTION INFORMATION Inspection cycle Inspection Project YES/NO Solution Signature Daily Inspection Check screws, bolts and fasteners are tightened. on Items Installed on a flat surface and no hazards are present. Equipment is free of dirt and moisture. Hook and loop attachments are securely fastened.
- Page 13 Outdoor Music Boards with Stands - Item Code: HW1-S276SET FRONT PART LIST HARDWARE Record the manufacture date here. Information is located on a label enclosed, and on the shipping carton. DIMENSIONS Place label and this sheet in an accessible place. Model Number: HW1-S276SET Overall Dimension: 90x72x125cm Manufacture Date:...
- Page 14 Outdoor Music Boards with Stands - Item Code: HW1-S276SET Step 1 Ensure the area is safe and devoid of any hazards prior to assembly. The single item is portable and can be used free standing (without ground anchors) – adult supervision advised, if preferred the item can be fixed in place with 1 set of 2 ground anchors for grass/soil base (anchors supplied).
- Page 15 Outdoor Music Boards with Stands - Item Code: HW1-S276SET Step 2 Step 3 The lower end of the percussion rod rope is fixed on the column through the fitting, and the fixing height of the fitting is close to the top of the tripod.
- Page 16 Outdoor Music Boards with Stands - Item Code: HW1-S276SET Installing Ground Anchors 1. Firstly determine the coordinate points that need to be fixed to the product. With the digging tool, dig 46CM downward the grass, bury the grass anchor, then tamp the soil. 2.
- Page 17 Outdoor Music Boards with Stands - Item Code: HW1-S276SET INSPECTION INFORMATION Inspection cycle Inspection Project YES/NO Solution Signature Daily Inspection Check screws, bolts and fasteners are tightened. on Items Installed on a flat surface and no hazards are present. Equipment is free of dirt and moisture. Hook and loop attachments are securely fastened.
- Page 18 Outdoor Music Boards with Stands - Item Code: HW1-SZH01SET (Complete Set) Item Code: HW1-S276SET Item Code: HW1-S275SET Item Code: HW1-S274SET...
- Page 19 Outdoor Music Boards with Stands - Item Code: HW1-SZH01SET (Complete Set) Φ4*65 Φ4*65 Φ4*65 When assembled with other products, it shares one column.
- Page 20 Outdoor Music Boards with Stands - Item Code: HW1-SZH01SET (Complete Set) Installing Ground Anchors 1. Firstly determine the coordinate points that need to be fixed to the product. With the digging tool, dig 46CM downward the grass, bury the grass anchor, then tamp the soil.
- Page 21 Outdoor Music Boards with Stands - Item Code: HW1-SZH01SET (Complete Set) INSPECTION INFORMATION Inspection cycle Inspection Project YES/NO Solution Signature Daily Inspection Check screws, bolts and fasteners are tightened. on Items Installed on a flat surface and no hazards are present. Equipment is free of dirt and moisture.
