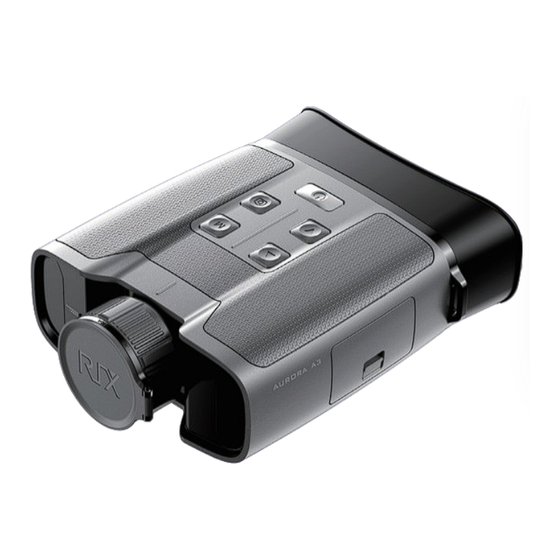

- Page 1 Aurora Series Thermal Binoculars User’s Manual Visir Inc.
- Page 2 WARNING: AURORA A3R CONTAINS INVISIBLE CLASS I LASER. PLEASE AVOID DIRECT EXPOSURE TO HUMAN EYE.
-
Page 3: Technical Specifications
Technical Specifications Model Type Uncooled Vanadium Oxide Resolution 384x288 Detector μ Pixel size parameters ≤50mk NETD Frame rate 50Hz Objective lens 35mm F-number Optical Magnification 4x~16x Optical parameters Digital Zoom 1x/2x/3x/4x Exit Pupil Distance 30mm Exit Pupil Diameter 80mm Type OLED Display Resolution... -
Page 4: What's Included
USB Cable Product Overview AURORA series binoculars is thermal imaging handheld product that integrates Wi-Fi connection with infrared observation, photography, video-recording capabilities. Its large 2.69-inch OLED displays and 2.5x eyepiece help avoid visual fatigue and offer added comfort. Using infrared thermal imaging technology, this device does not require any external light sources and can be used to clearly observe targets in day and night, in any weather conditions (e.g. -
Page 5: Components And Buttons
Components and Buttons Button Operations Buttons Current Status Press Long press Power button Powered off Power Standby (on-screen standby Home screen Power off icon) Standby mode Cancel Standby Main menu Return to upper menu without interface saving changes Up button Home screen Digital zoom Toggle PIP function... -
Page 6: Power Supply
1. Power Supply The AURORA series uses rechargeable lithium-ion batteries with a battery life of 10 hours. 8 AA batteries can also be added to extend battery life to up to 24 hours. Please charge device before the first use (only built-in battery can be charged). -
Page 7: External Power Supply
2. External Power Supply AURORA series can be powered with an external power supply, such as a power bank. Connect the external power supply to the Type C port The device will switch to an external power supply and charge built-in battery at the same... - Page 8 6. Stadiametric Rangefinder The AURORA A3 model integrates a Stadiametric Rangefinder Function, which can estimate the approximate distance to an object by using its size. In the home screen, press the Down button to turn the Stadiametric Rangfinder Function on/off After this function is enabled, two horizontal lines used for measuring will appear on the screen, and icons of three pre-configured objects and measured values will be displayed on the left side.
-
Page 9: Status Bar
8. Photography and Video Recording AURORA series binoculars are equipped with 32GB built-in memory storage and support photography and video recording. Image and video files will be named according to the time they are taken. So, it is recommended to set the system date and time in advance. Or synchronize the system date and time in APP. -
Page 10: Shortcut Menu
flashing means charging) 3. Image mode (white hot/black hot/red hot/pseudo-color) 4. Scene mode (jungle/city/bird watching) 5. Magnification (e.g., 2x) 6. Shutter modes (manual/auto/background correction) 10. Shortcut Menu Frequently used functions can be called from the shortcut menu, including image mode, scene mode, screen brightness and image enhancement. - Page 11 Picture viewing and video playback ● Press and hold the M button to enter the main menu Playback ● Press the UP/DOWN button to select the "Playback" function option. function ● Press the M button to access the playback screen ●...
- Page 12 System information is displayed: product model, software version, hardware version, PN code, SN code, FCC ID etc. 12. Wi-Fi function The AURORA series has a built-in Wi-Fi module, which allows the device to connect to external devices (computers, smartphones). In the main menu, enable Wi-Fi on the device...
-
Page 13: Inspection Before Use
14. Inspection Before Use It is recommended to perform the following inspection before each use No cracks should appear on product surface Lens and eyepieces should be free of oil or dirt Ensure no oxidation on battery electrodes 15. Product Maintenance Product maintenance should be performed at least twice a year as follows: Wipe external surfaces with a soft cloth to remove dust and dirt, silicone grease may be used... -
Page 14: Labelling Requirements
The device cannot Wi-Fi password is incorrect Enter the correct password connect to a smartphone or computer Wi-Fi signals are lost or Device is beyond Wi-Fi Move binoculars and connect interrupted coverage device closer Imaging quality is At temperatures above 32℉, larger differences in temperature are poorer at low recorded between the object and background due to different heat temperature...
