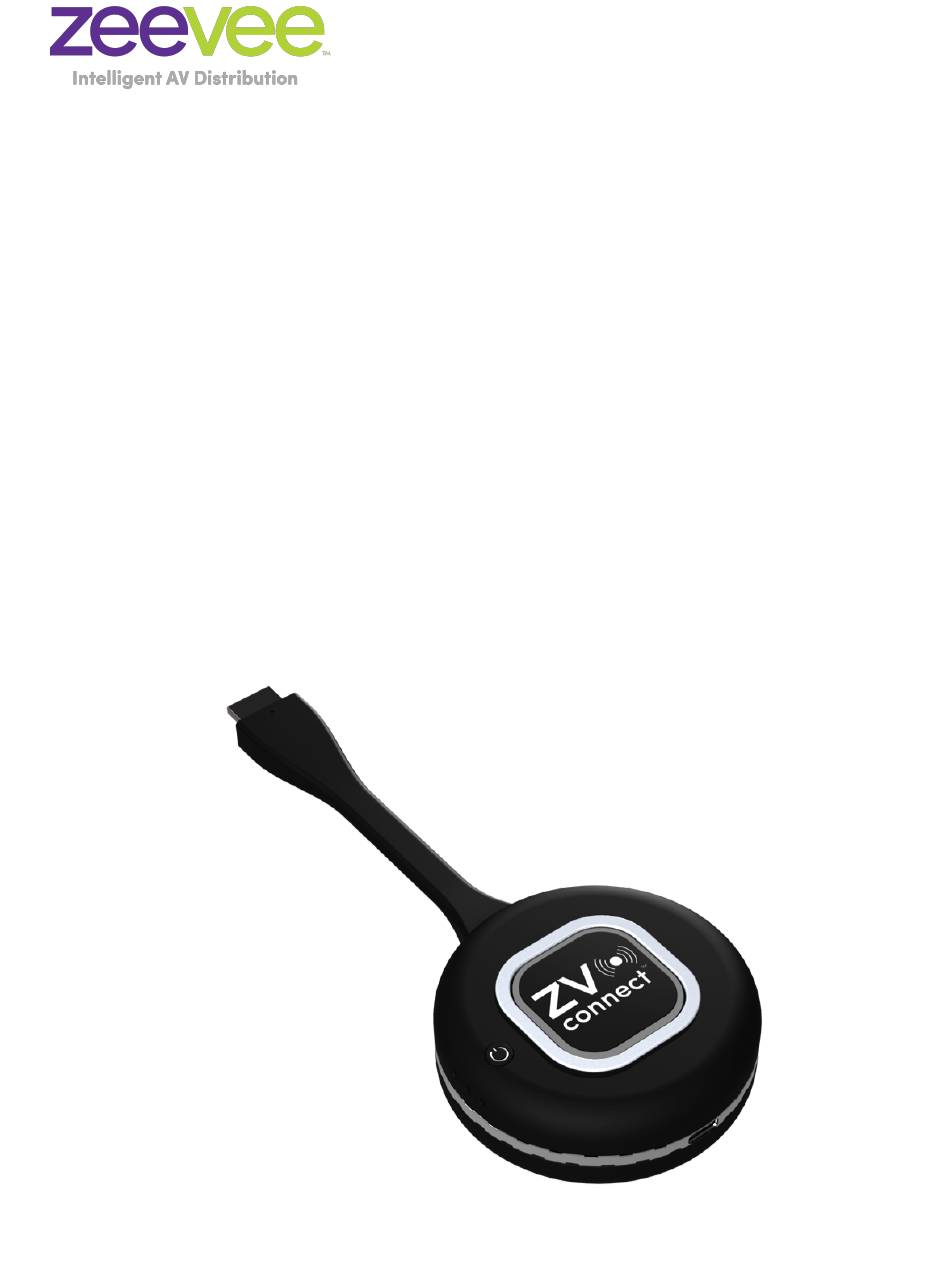

- Page 1 ZVconnect Wireless Presentation System —————————————————————————————————————————— User Manual Updated February 15, 2023...
-
Page 2: Table Of Contents
ZVconnect User Guide Table of Contents ZVconnectTM Wireless Presentation System System Description Features Receiver Unit Transmitter Unit Operating Guide Receiver Installation Synchronization of Transmitter to a Receiver Screen Mirroring (One source to receiver) Dual Screen Mirroring (Two sources to receiver) -
Page 3: System Description
ZVconnect User Guide System Description The ZVconnect provides a simple, robust conference room video solution. The transmitter plugs directly into your laptop’s video output, and the receiver into the HDMI video input of your display. No drivers or software to install. No USB limitations. -
Page 4: Features
ZVconnect User Guide Features Receiver Unit Blue Flash (1s) : Ready to Play Blue Flash (100ms) : Channel Scanning Power LED Status LED HDMI Connector Note: The Receiver unit red rim was added to units manufactured in June 2021. Units manufactured prior to this date had a silver rim the same as the Transmitter units. -
Page 5: Transmitter Unit
ZVconnect User Guide Transmitter Unit Purple: Booting Purple Flash: Factory Reset mode Blue: Ready to Play Blue Flash (1s) : Transmitting Blue Flash (100ms): Setting mode Red: no HDMI source Red Flash (300ms): Checking receiver connection Status LED HDMI or USB-C... -
Page 6: Operating Guide
ZVconnect User Guide Operating Guide Receiver Installation 1. Connect ZVconnect Receiver to HDMI input of display 2. Connect 5V/2A power to ZVconnect receiver 3. Status light will turn blue. Wait for status light to flash. (About 30 seconds) 4. Ready to Play... -
Page 7: Synchronization Of Transmitter To A Receiver
ZVconnect User Guide Synchronization of Transmitter to a Receiver You will need to Synchronize or “Pair” a Transmitter to a Receiver. This is done by putting the Receiver into Pairing Mode and synchronizing it with desired Transmitters. Step 1: Connect the Receiver to the display’s HDMI input and then connect power adapter (5V2A) to the USB-C port of the receiver. - Page 8 ZVconnect User Guide Step 3: Press Receiver’s center button for 3 seconds. After initialization the “Ready to pair” message will be shown on the lower left corner of the display. The Receiver is now in pairing mode. Rev 20230215 Page...
- Page 9 ZVconnect User Guide Step 4: With no source connected to the Transmitter; press the Transmitter’s power purple button for 3 seconds to power on Transmitter. LED will turn while booting. Important: Do not connect a source to the Transmitter during this synchronization procedure.
- Page 10 ZVconnect User Guide You can synchronize up to 254 transmitters with a single receiver. Example below shows screen after 3 Transmitters have been synchronized consecutively. Note: The Transmitter will stay synchronized to the specific Receiver after power down. In fact, the Transmitter will stay synchronized to the Receiver until manually paired with another receiver.
- Page 11 ZVconnect User Guide Step 5: Once pairing is completed, press and hold the Receiver’s center button until you see “Initializing” in the status field to exit pairing mode. After a few moments of “Channel scanning” this will return to “Ready to play”.
-
Page 12: Screen Mirroring (One Source To Receiver)
ZVconnect User Guide Screen Mirroring (One source to receiver) Once the receiver has completed the boot process the screen shown to the left will appear on the display. The status should be “Ready to play” Connect either an HDMI or USB-C transmitter to a source. -
Page 13: Dual Screen Mirroring (Two Sources To Receiver)
ZVconnect User Guide Dual Screen Mirroring (Two sources to receiver) It is possible to connect two transmitters to a single receiver simultaneously and display the images side by side on the display. This process requires at least two transmitters that are synced to the same receiver. -
Page 14: Dual Screen Mirroring Details (Long Click Button For Dual Screen Mode)
ZVconnect User Guide Dual Screen Mirroring Details (Long click button for Dual Screen mode) Type to enter text A Long click Device A enters Dual Screen mode Color rainbow screen is normal B Long click Device B enters Dual Screen mode Color rainbow screen is normal ->... -
Page 15: Screen Switching In Dual Screen Mode
ZVconnect User Guide B Long click Device A is full screen, and long click Device B -> Both devices enter Dual Screen mode. Device A on the left side, and Device B on the right side. Screen Switching in Dual Screen Mode Long Click ->... -
Page 16: Dual Screen Mode From 3Rd Device
ZVconnect User Guide C Short click Switch to full screen of Device C. Dual Screen mode for Device A and Device B is cancelled. Dual Screen Mode from 3rd Device Color rainbow screen is normal A or B Long click... - Page 17 ZVconnect User Guide Color rainbow screen is normal C Long click Device C enters Dual Screen mode Color rainbow screen is normal Rev 20230215 Page...
-
Page 18: Transmitter Factory Reset
ZVconnect User Guide Transmitter Factory Reset To factory reset the transmitter, please follow these steps. Ensure Transmitter is not connected to a Source. Power on the Transmitter. LED will cycle from solid purple while booting to flashing red. Press and hold the center button until the LED flashes blue. -
Page 19: Battery Status
ZVconnect User Guide Battery Status The transmitter units have an integrated rechargeable battery. The status of the battery is indicated by a series of LED lights on the side of the unit. Battery Status Lights Two green plus One orange = Battery Charge 80% - 100%... -
Page 20: Battery Charging
ZVconnect User Guide Battery Charging To charge transmitter units follow the procedure below: 1. Power off the transmitter 2. Plug the USB-C charging cable into the transmitter 3. Connect other end of charging cable to appropriate USB charging block and power 4. -
Page 21: Optional Charging Stand
ZVconnect User Guide Optional Charging Stand There is an optional charging stand available for the transmitter devices (Part # ZVCCHARGE) that can hold and charge up to 4 ZVconnect transmitters at one time. Note that the ZVconnect transmitter LED will remain while the unit is actively charging and will turn off when the unit is fully charged. -
Page 22: Specifications
ZVconnect User Guide Specifications Transmitters Model Number ZVCTXHDMI ZVCTXUSBC Description/Interface Wireless transmitter with HDMI Wireless transmitter with USB-C interface interface In the box Transmitter, USB cable, 2A USB Transmitter, USB cable, 2A USB power block power block Video Codec H.265 H.265... -
Page 23: Receiver
ZVconnect User Guide Receiver Model Number ZVCRXHDMI Description/Interface Wireless receiver with HDMI interface In the box Receiver, USB cable, 2A USB power block Video Codec H.265 Resolution 3840 x 2160 @30/60Hz*, 1920 x 1080 @60Hz*, WLAN IEEE802.11a/b/g/n/ac 5 Ghz (5.150 ~ 5.850 Ghz) -
Page 24: Part Numbers
Charging cradle unit to simultaneously charge up to 4 cradle for up to 4 ZVconnect ZVconnect transmitter units. Includes cradle and transmitters power supply/cable. ZVconnect wireless room kit with HDMI transmitters. ZVconnect wireless system Includes 1 receiver unit and 2 transmitter units with room kit with HDMI ZVCKITH HDMI inputs. -
Page 25: Frequently Asked Questions
Answer: No, dual mirroring mode only supports video. Question: What frequency range is used by ZVconnect? Answer: ZVconnect uses a 5GHz frequency. (Between 5.2 GHz and 5.8 GHz) Question: How many available channels are available in this 5.2 GHz to 5.8 GHz range for the ZVconnect receiver to use? Answer: ... - Page 26 Answer: No, the transmitters can only sync to one receiver at a time. Question: What devices is the transmitter compatible with? Answer: ZeeVee has tested a wide range of devices including the following: MacBook’s, Windows PC’s, Lenovo Thinkpads, Dell Chromebook, Google Pixelbooks, Android Phones and Tablets, Samsung Galaxy S9/S10, Microsoft Xbox One X, Sony Blu-Ray players, Apple TV.
-
Page 27: Disclaimers
ZeeVee hardware designs are property of ZeeVee. Components, sub-assemblies, and methods utilized in the designs are free of any encumbrances or appropriate licenses and rights have been obtained by ZeeVee for the use in the described products in the intended manner.
