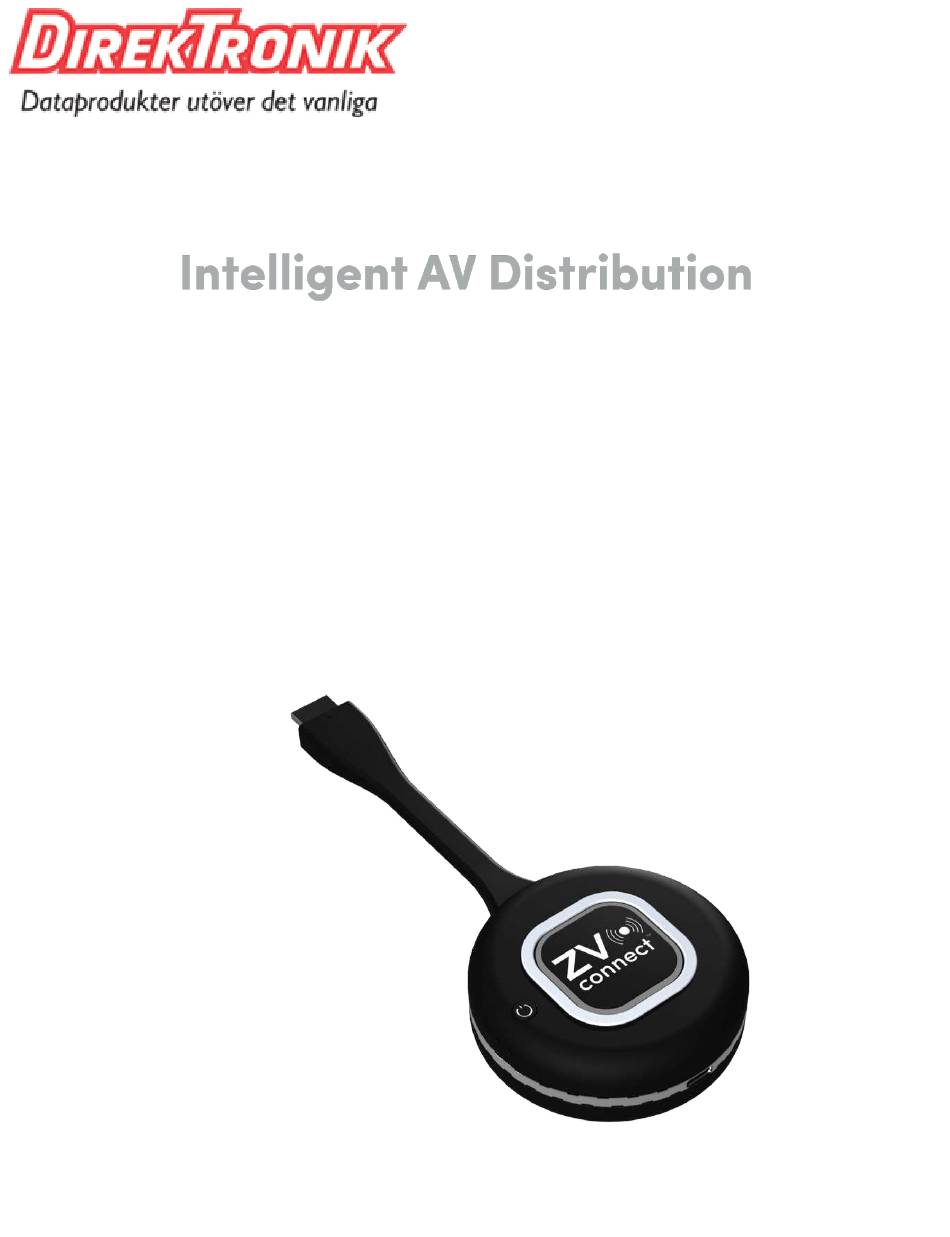

- Page 1 ZVconnect WIRELESS PRESENTATION SYSTEM User Guide Updated November 2020...
-
Page 2: Table Of Contents
ZVconnect User Guide Table of Contents System Description Features Receiver Unit Transmitter Unit Operating Guide Receiver Installation Transmitter Installation Synchronization to specific Receiver Screen Mirroring Dual Screen Mirroring Dual Screen Mirroring Details (Long click button for Dual Screen mode) 15 Screen Switching in Dual Screen Mode Dual Screen Mode from 3rd Device Battery Status... -
Page 3: System Description
ZVconnect User Guide System Description The ZVconnect provides a simple, robust conference room video solution. The transmitter plugs directly into your laptop’s video output, and the receiver into the HDMI video input of your display. No drivers or software to install. No USB limitations. -
Page 4: Features
ZVconnect User Guide Features Receiver Unit Blue Flash (1s) : Ready to Play Blue Flash (100ms) : Setting mode Power LED Status LED HDMI Connector USB Type-C Connector Setting Button for DC 5V power Rev 20201105 Page... -
Page 5: Transmitter Unit
ZVconnect User Guide Transmitter Unit Purple: Booting Purple Flash: Factory Reset mode Blue: Ready to Play Blue Flash (1s) : Transmitting Blue Flash (100ms): Setting mode Red: no HDMI source Red Flash (300ms): Checking receiver connection Status LED HDMI or USB-C Connector Power Button Battery... -
Page 6: Operating Guide
ZVconnect User Guide Operating Guide Receiver Installation 1. Connect ZVconnect Receiver to HDMI input of display 2. Connect 5V/2A power to ZVconnect receiver 3. Status light will turn blue. Wait for status light to flash. (About 30 seconds) 4. Ready to Play Rev 20201105 Page... -
Page 7: Transmitter Installation
ZVconnect User Guide Transmitter Installation 1. Disconnect transmitter from any source 2. Power the transmitter on by holding power button for about 3 seconds 3. Wait for transmitter to complete booting and LED to turn Red. 4. Press and hold the center button until Blue LED flashes (About 3 seconds) 5. - Page 8 ZVconnect User Guide Factory Reset: To factory reset the transmitter: Starting with transmitter powered off, hold the center button in first, now hold the power button in and hold both buttons until you see the LED flash purple. (About 15 seconds) Once LED flashes Purple the unit has been factory reset.
-
Page 9: Synchronization To Specific Receiver
ZVconnect User Guide Synchronization to specific Receiver In cases where there are multiple Receiver units in range, you will want to Synchronize or Pair a Transmitter to a specific Receiver. This is done by putting the Receiver into Pairing Mode and synchronizing it with desired Transmitters. Step 1: Connect the Receiver to the display’s HDMI input and then connect power adapter (5V2A) to the USB-C port of the receiver. - Page 10 ZVconnect User Guide Step 3: Press Receiver’s center button for 3 seconds. After initialization the “Ready to pair” message will be shown on the lower left corner of the display. The Receiver is now in pairing mode. Rev 20201105 Page...
- Page 11 ZVconnect User Guide Step 4: Press the Transmitter’s power button for 3 seconds and wait until the LED of the center button becomes flashing red. Press and hold the center button until the LED become flashing blue and then release it. The Transmitter will now pair with the Receiver. When the pairing process is successfully completed, “Synchronizing is completed”...
- Page 12 ZVconnect User Guide Step 5: Once pairing is completed, press the Receiver’s center button until you see the “initialization” in the status field to exit pairing mode. Important: You will not be able to transmit video from a Transmitter to Receiver until the Receiver is taken out of pairing mode.
-
Page 13: Screen Mirroring
ZVconnect User Guide Screen Mirroring Once the receiver has completed the boot process the screen shown to the left will appear on the display. Connect either an HDMI or USB-C transmitter to a source. Power on the transmitter Wait for the status LED to turn blue Press the settings/transmit button once. -
Page 14: Dual Screen Mirroring
ZVconnect User Guide Dual Screen Mirroring It is possible to connect two transmitters to a single receiver simultaneously and display the images side by side on the display. This process requires at least two transmitters that are synced to the same receiver. Rev 20201105 Page... -
Page 15: Dual Screen Mirroring Details (Long Click Button For Dual Screen Mode)
ZVconnect User Guide Dual Screen Mirroring Details (Long click button for Dual Screen mode) A Long click Device A enters Dual Screen mode B Long click Device B enters Dual Screen mode -> Screen B appears on the right side of screen A C Long click Device C does not enter Dual Screen mode. -
Page 16: Screen Switching In Dual Screen Mode
ZVconnect User Guide B Long click Device A is full screen, and long click Device B -> Both devices enter Dual Screen mode. Device A on the left side, and Device B on the right side. Screen Switching in Dual Screen Mode Long Click ->... -
Page 17: Dual Screen Mode From 3Rd Device
ZVconnect User Guide C Short click Switch to full screen of Device C. Dual Screen mode for Device A and Device B is cancelled. Dual Screen Mode from 3rd Device A or B Long click Choose Device A or Device B and end Dual Screen mode Rev 20201105 Page... - Page 18 ZVconnect User Guide C Long click Device C enters Dual Screen mode Rev 20201105 Page...
-
Page 19: Battery Status
ZVconnect User Guide Battery Status The transmitter units have an integrated rechargeable battery. The status of the battery is indicated by a series of LED lights on the side of the unit. Battery Status Lights Two green plus One orange = Battery Charge 80% - 100% One green plus One orange = Battery Charge 20% - 80% One orange = Battery Charge less than 20% Note: Battery status lights are not illuminated when the... -
Page 20: Battery Charging
ZVconnect User Guide Battery Charging To charge transmitter units follow the procedure below: 1. Power off the transmitter 2. Plug the USB-C charging cable into the transmitter 3. Connect other end of charging cable to appropriate USB charging block and power 4. -
Page 21: Optional Charging Stand
ZVconnect User Guide Optional Charging Stand There is an optional charging stand available for the transmitter devices (Part # ZVCCHARGE) that can hold and charge up to 4 ZVconnect transmitters at one time. Best.nr. 20103556 Note that the ZVconnect transmitter LED will remain while the unit is actively charging and will turn off when the unit is fully charged. -
Page 22: Specifications
ZVconnect User Guide Specifications Transmitters Model Number 20103554 20103555 ZVCTXHDMI ZVCTXUSBC Description/Interface Wireless transmitter with HDMI Wireless transmitter with USB-C interface interface In the box Transmitter, USB cable, 2A USB Transmitter, USB cable, 2A USB power block power block Video Codec H.265 H.265 Resolution Support... -
Page 23: Receiver
ZVconnect User Guide Receiver 20103553 Model Number ZVCRXHDMI Description/Interface Wireless receiver with HDMI interface In the box Receiver, USB cable, 2A USB power block Video Codec H.265 Resolution 3840 x 2160 @60Hz*, 1920 x 1080 @60Hz*, 1920 x 1200 @60Hz* WLAN IEEE802.11a/b/g/n/ac... -
Page 24: Part Numbers
Part Numbers Part Number Short Description Long Description ZVconnect wireless receiver with HDMI output. ZVCRXHDMI ZVconnect wireless receiver 20103553 Includes receiver unit, USB cable and 2A USB power with HDMI interface block. ZVCTXHDMI ZVconnect wireless ZVconnect wireless transmitter with HDMI input. -
Page 25: Frequently Asked Questions
ZVconnect User Guide Frequently Asked Questions Question: Can I just leave the Transmitter connected to USB power and transmit indefinitely? Answer: Yes you can Question: Does the ZVconnect support playing HDCP content? Answer: Yes it does. Rx: HDCP 2.2 Tx HDMI: HDCP 1.4 Tx USB-C: HDCP 1.3 When HDCP 2.2 content is connected to the Tx, it will convert it to 1.4 and 1.3... - Page 26 Answer: No, the transmitters can only sync to one receiver at a time. Question: What devices is the transmitter compatible with? Answer: ZeeVee has tested a wide range of devices including the following: MacBook’s, Windows PC’s, Lenovo Thinkpads, Dell Chrombooks, Google Pixelbooks, Android Phones and Tablets, Samsung Galaxy S9/S10, Microsoft Xbox One X, Sony Blu-Ray players, Apple TV.
-
Page 27: Disclaimers
ZeeVee hardware designs are property of ZeeVee. Components, sub-assemblies, and methods utilized in the designs are free of any encumbrances or appropriate licenses and rights have been obtained by ZeeVee for the use in the described products in the intended manner.
