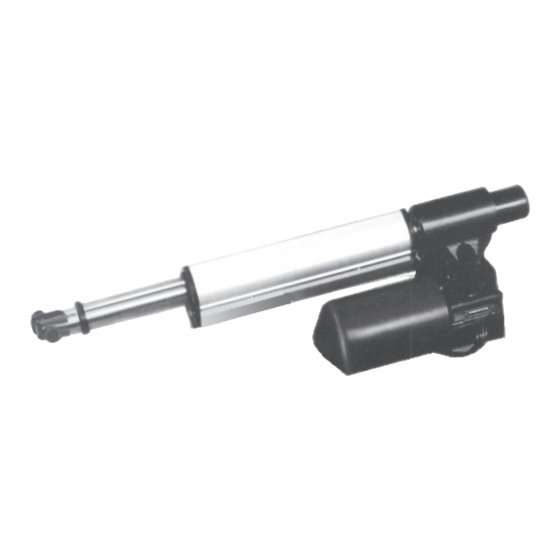

- Page 1 WEB CONTROL PRODUCTS User Manual Linear Actuator FORM NO. L-20217-G-0811...
- Page 2 In accordance with Nexen’s established policy of constant product improvement, the specifications contained in this manual are subject to change without notice. Technical data listed in this manual are based on the latest information available at the time of printing and are also subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Introduction ----------------------------------------------------------------------------------------------------------------------------------------- 4 Installation ------------------------------------------------------------------------------------------------------------------------------------------- 4 Electrical Connections -------------------------------------------------------------------------------------------------------------------------- 4 Limit Switch Adjustment ---------------------------------------------------------------------------------------------------------------------- 5 Maintenance --------------------------------------------------------------------------------------------------------------------------------------- 5 Specifications ------------------------------------------------------------------------------------------------------------------------------------- 5 Linear Actuator Dimensions ----------------------------------------------------------------------------------------------------------------- 6 Warranty --------------------------------------------------------------------------------------------------------------------------------------------- 7 FORM NO. L-20217-G-0811... -
Page 4: Introduction
INTRODUCTION To ensure optimum response and accuracy, roll stands should be Nexen’s Linear Actuators provide the thrust required to move an mounted on linear ball bearings. Sliding ways and wheel track unwind stand, a wind up roll, or convert an existing hydraulically systems have higher coefficients of friction requiring greater break actuated web guiding mechanism to electrical actuation. -
Page 5: Limit Switch Adjustment
11. Replace the Rubber Sealing Strip in the Limit Switch Housing (See Figure 3). MAINTENANCE The only maintenance required for Nexen’s Linear Actuator is the application of a few drops of light machine oil on the actuating tube as necessitated by the working environment (See Figure 4). -
Page 6: Linear Actuator Dimensions
FIGURE 5 FORM NO. L-20217-G-0811... -
Page 7: Warranty
Buyer shall be obligated to pay or which Buyer may incur based upon, related to or arising out of its contracts with its customers or other third parties. In no event shall Nexen be liable for any amount of damages in excess of amounts paid by Buyer for Products or services as to which a breach of contract has been determined to exist.
