- Page 1 WEB CONTROL PRODUCTS User Manual Linear Actuator 600 lbs FORM NO. L-21023-F-0812...
- Page 2 In accordance with Nexen’s established policy of constant product improvement, the specifications contained in this manual are subject to change without notice. Technical data listed in this manual are based on the latest information available at the time of printing and are also subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Introduction ----------------------------------------------------------------------------------------------------------------------------------------- 4 Installation ------------------------------------------------------------------------------------------------------------------------------------------- 4 Electrical Connections -------------------------------------------------------------------------------------------------------------------------- 4 Limit Switch Adjustment ------------------------------------------------------------------------------------------------------------------------ 5 Maintenance ---------------------------------------------------------------------------------------------------------------------------------------- 6 Product Numbers --------------------------------------------------------------------------------------------------------------------------------- 6 Specifications -------------------------------------------------------------------------------------------------------------------------------------- 6 Linear Actuator Dimensions ------------------------------------------------------------------------------------------------------------------- 7 Warranty ---------------------------------------------------------------------------------------------------------------------------------------------- 8 FORM NO. L-21023-F-0812... -
Page 4: Introduction

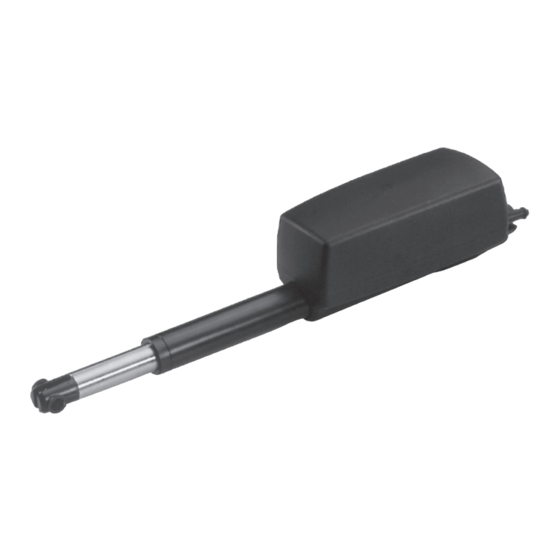

INTRODUCTION Nexen’s Linear Actuators provide the thrust that is required to move an unwind stand, a wind up roll stand or to convert an existing hydraulically actuated web guiding mechanism to electrical actuation. Nexen’s Linear Actuators are available in several models with different strokes. -
Page 5: Limit Switch Adjustment
LIMIT SWITCH ADJUSTMENT NOTE: Refer to Figures 3, 4 Rubber Sealing Strip The limit switches factory default setting are for the maximum on Limit Switch Housing stroke. 1. Turn the Web Guide Controller to "ON" and place it in the manual mode. 2. -
Page 6: Maintenance
MAINTENANCE NOTE: Refer to Figure 5 Apply a few drops of light machine oil to the actuating rod. The frequency in which the Linear Actuator will require lubrication depends upon the working environment. Lubricate FIGURE 5 PRODUCT NUMBERS Linear Actuator / 600 lbs, 4 inch stroke ...........................912730 Linear Actuator / 600 lbs, 6 inch stroke ...........................912731 Linear Actuator / 600 lbs, 12 inch stroke ..........................912732 SPECIFICATIONS... -
Page 7: Linear Actuator Dimensions
Linear Actuator Dimensions 55.88 2.200 27.9 1.10 55.88 40.26 2.200 1.585 27.9 1.10 20.1 20.1 +.01 6.86 -.00 .270 40.26 1.585 Limit Switch Cable 1981 mm 2000.0 78 in 78.74 CORD 10.1 +.01 -.00 57.15 "X" 2.250 2000.0 78.74 Dimension "X" INCH Cord 372.9... - Page 8 Linear Actuator Dimensions 46.0 1.81 81.99 23.0 3.228 32.0 1.26 89.99 3.543 46.0 16.0 1.81 23.0 22.00 .866 16.0 5.49 Dia. .216 4 Holes 32.0 1.26 211.0 8.31 30.0 Limit Switch Cable 1.18 1981 mm 78 in 13.0 30.5 1.20 11.2 34.9 20.9...
-
Page 9: Warranty
Buyer shall be obligated to pay or which Buyer may incur based upon, related to or arising out of its contracts with its customers or other third parties. In no event shall Nexen be liable for any amount of damages in excess of amounts paid by Buyer for Products or services as to which a breach of contract has been determined to exist.
