Nortel T24 Installation Instructions

T24 Key Indicator Module
(KIM) Installation Card

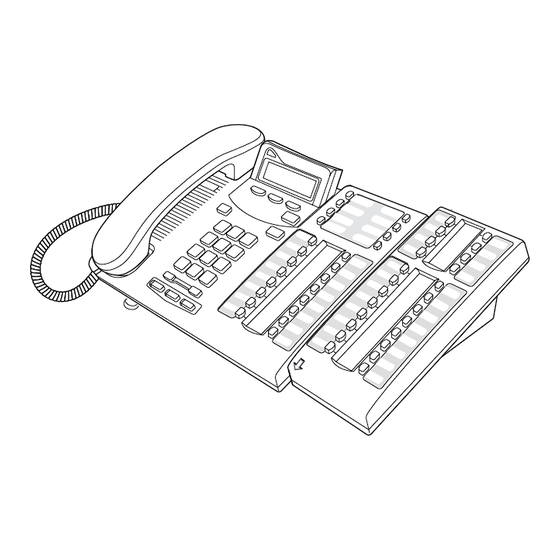

The T24 Key Indicator Module (KIM) is an add-on device which provides 24 extra memory or
line buttons for the T7316E telephone. Up to nine KIMs can be connected to a T7316E
telephone.
A Station Auxiliary Power Supply (SAPS) is required for T7316E telephones that have five to
nine KIMs attached. For SAPS installation instructions, refer to the SAPS Installation Card
provided with the SAPS kit.

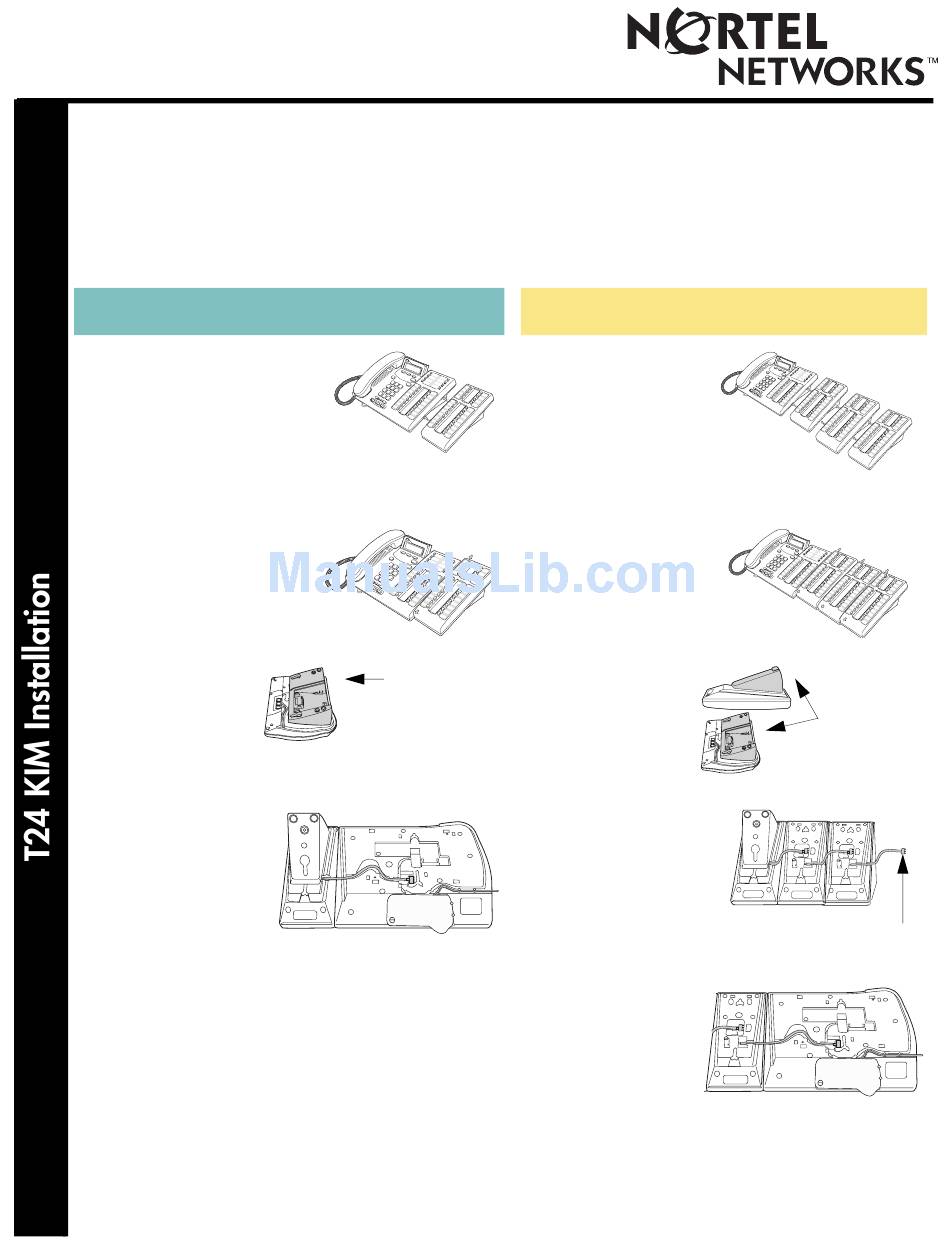

Single T24 KIM installation
1 Position the metal hooks
from the left side of the KIM
next to the slots on the right
side of the T7316E
telephone.
Firmly press the T7316E and KIM together.
2 Slide the KIM down until its
aligned with the T7316E
telephone.
3 Remove the stand
from the T7316E
telephone.
4 Connect the KIM
cord to the accessory
connector port on the
T7316E telephone.
5
Replace the stand on the T7316E telephone to
complete the installation.
Multiple T24 KIM installation
1 Position the T7316E
telephone and KIMs
together. Align the
hooks on each KIM
to the slots on the
next KIM.
Firmly press the T7316E and KIMs together.
2 Slide the KIMs down
until they are aligned
with the T7316E
telephone.
3 Remove the
Press here
stands from
to remove stand.
KIMs and
the T7316E
telephone.
4 Connect each KIM
cord to the connector
port on the next KIM
in a daisy-chain
order.
5
Connect the cord
on the first KIM
to the accessory
connector port on
the T7316E
telephone.
6 Replace the stands on the KIMs and the
T7316E telephone to complete the installation.
Press here
to remove
stands.
KIM 1
KIM 3 KIM 2
Cord to
T7316E
KIM 1
