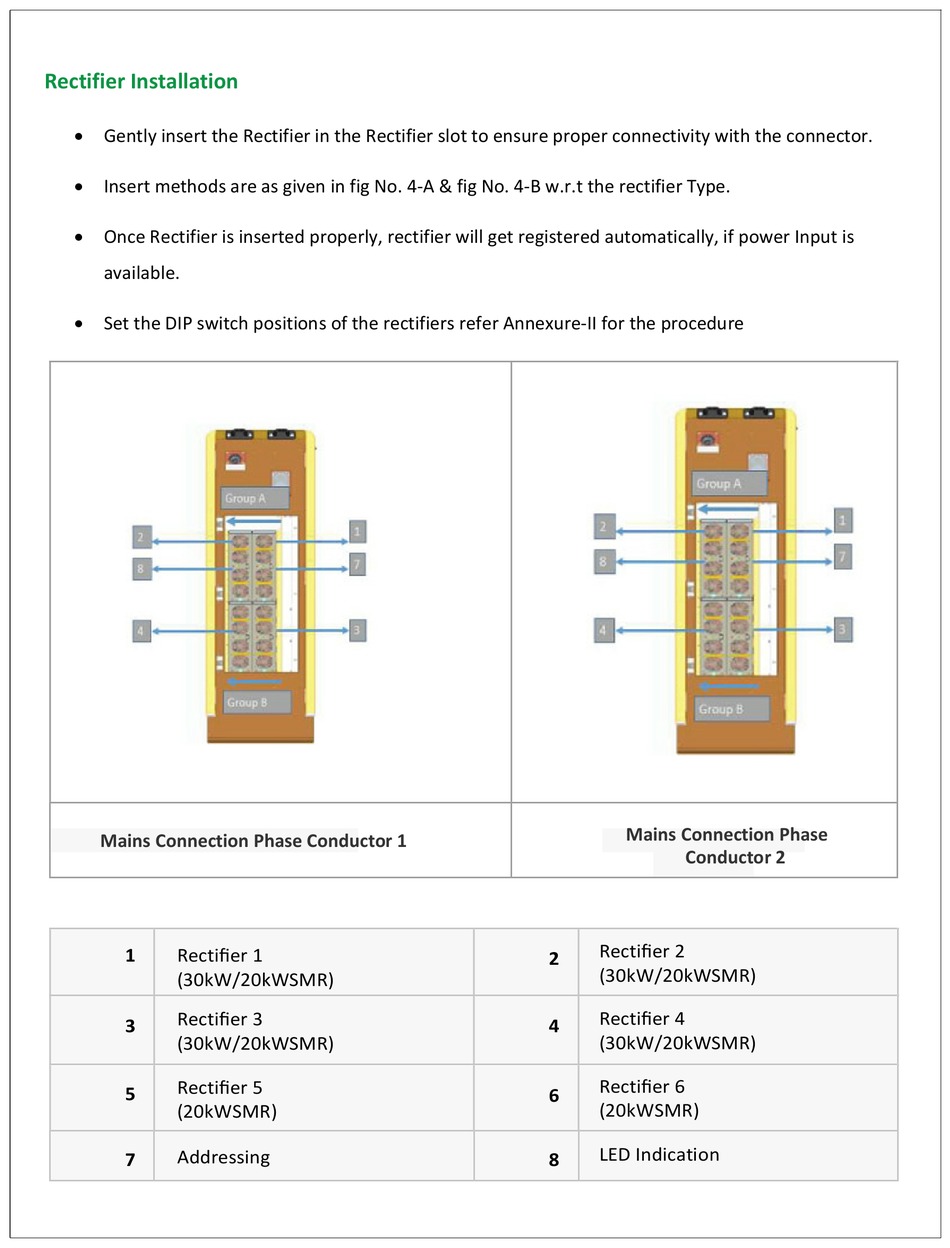

Rectifier Installation
 Gently insert the Rectifier in the Rectifier slot to ensure proper connectivity with the connector.
 Insert methods are as given in fig No. 4-A & fig No. 4-B w.r.t the rectifier Type.
 Once Rectifier is inserted properly, rectifier will get registered automatically, if power Input is
available.
 Set the DIP switch positions of the rectifiers refer Annexure-II for the procedure
Mains Connection Phase Conductor 1
1 Rectifier 1
(30kW/20kWSMR)
Rectifier 3
3
(30kW/20kWSMR)
Rectifier 5
5
(20kWSMR)
Addressing
7
Mains Connection Phase
Conductor 2
Rectifier 2
2
(30kW/20kWSMR)
Rectifier 4
4
(30kW/20kWSMR)
Rectifier 6
6
(20kWSMR)
LED Indication
8
